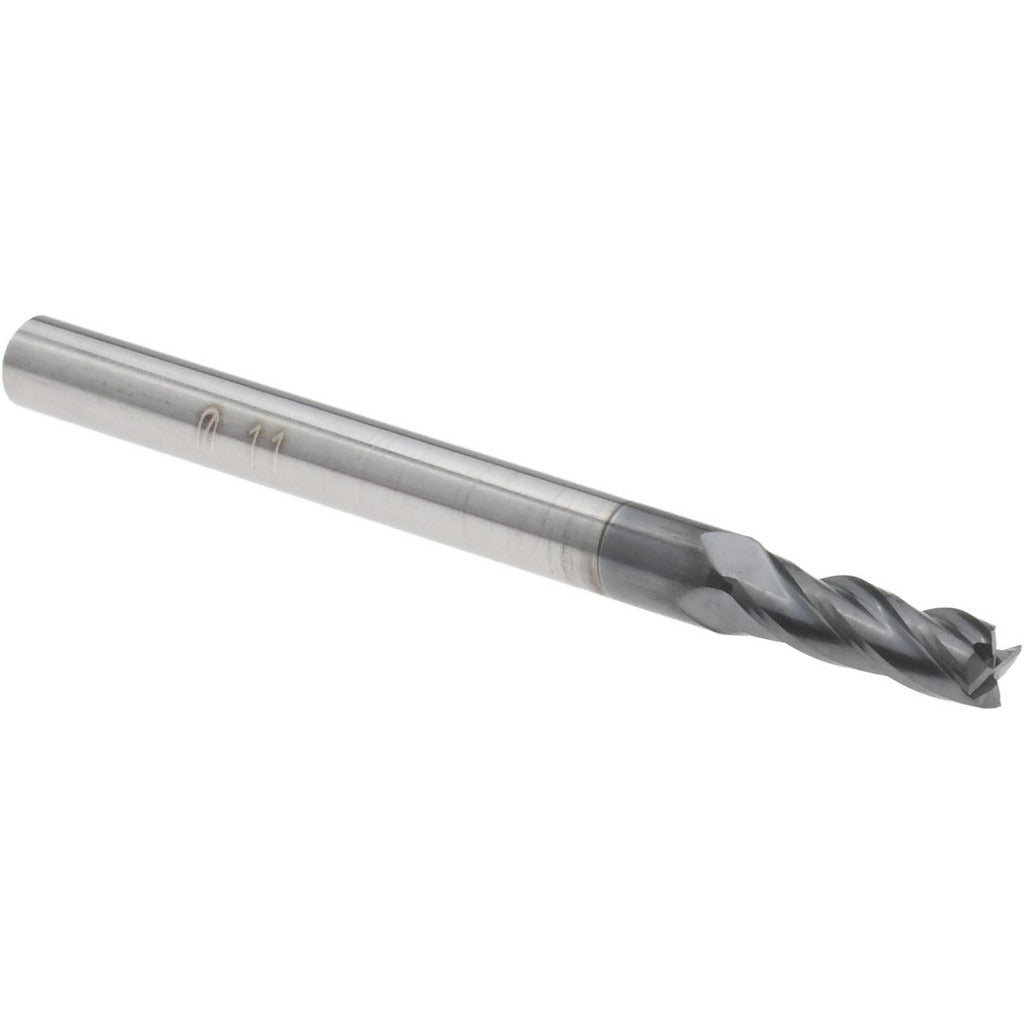

Accupro 14796982 Square End Mill 7/64 in 4 Flute Altin

Product Description

The ACCUPRO 14796982 is a solid carbide square end mill designed for precision milling operations in ferrous and high-hardness materials. Built from micrograin carbide, it measures 7/64 inch (0.110 inch) in diameter with a 21/64 inch (0.330 inch) length of cut and a 1-1/2 inch overall length. The 4-flute, single-end geometry paired with an AlTiN coating delivers heat resistance and wear performance suited for dry or low-coolant machining environments. A 30-degree right-hand helix promotes efficient chip evacuation in both conventional and climb milling passes.

This end mill is sized for small-feature work including slots, pockets, and profiling cuts where tight tolerances and a fine surface finish are required. The 1/8 inch shank fits standard collets and tool holders commonly found in CNC machining centers and manual mills. It is center-cutting, allowing plunge entry without a pre-drilled pilot hole. Machinists, tool and die makers, and precision CNC operators working in production or prototype environments will find this tool appropriate for detailed work in steel, stainless, and similar alloys.

Key Features

• Solid micrograin carbide construction for rigidity and edge retention in hard materials
• AlTiN coating provides oxidation resistance and extended tool life in high-temperature cuts
• 4-flute spiral configuration balances chip load and finish quality
• 30-degree right-hand helix for effective chip evacuation
• Center-cutting design enables direct plunge entry
• Single-end geometry with right-hand cutting direction for standard spindle use

Compatibility

Designed as an OEM-style replacement or direct fitment for CNC machining centers and manual mills accepting a 1/8 inch shank diameter, within the ACCUPRO ASQSC4-AT-CC-30H series.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the spindle is fully stopped and locked out before inserting or removing the tool from any collet or tool holder. Verify collet bore size matches the 1/8 inch shank diameter and that the tool is seated to the minimum recommended grip depth before torquing the collet nut. Do not exceed the tool manufacturer's recommended speeds and feeds for the workpiece material and coating type.
