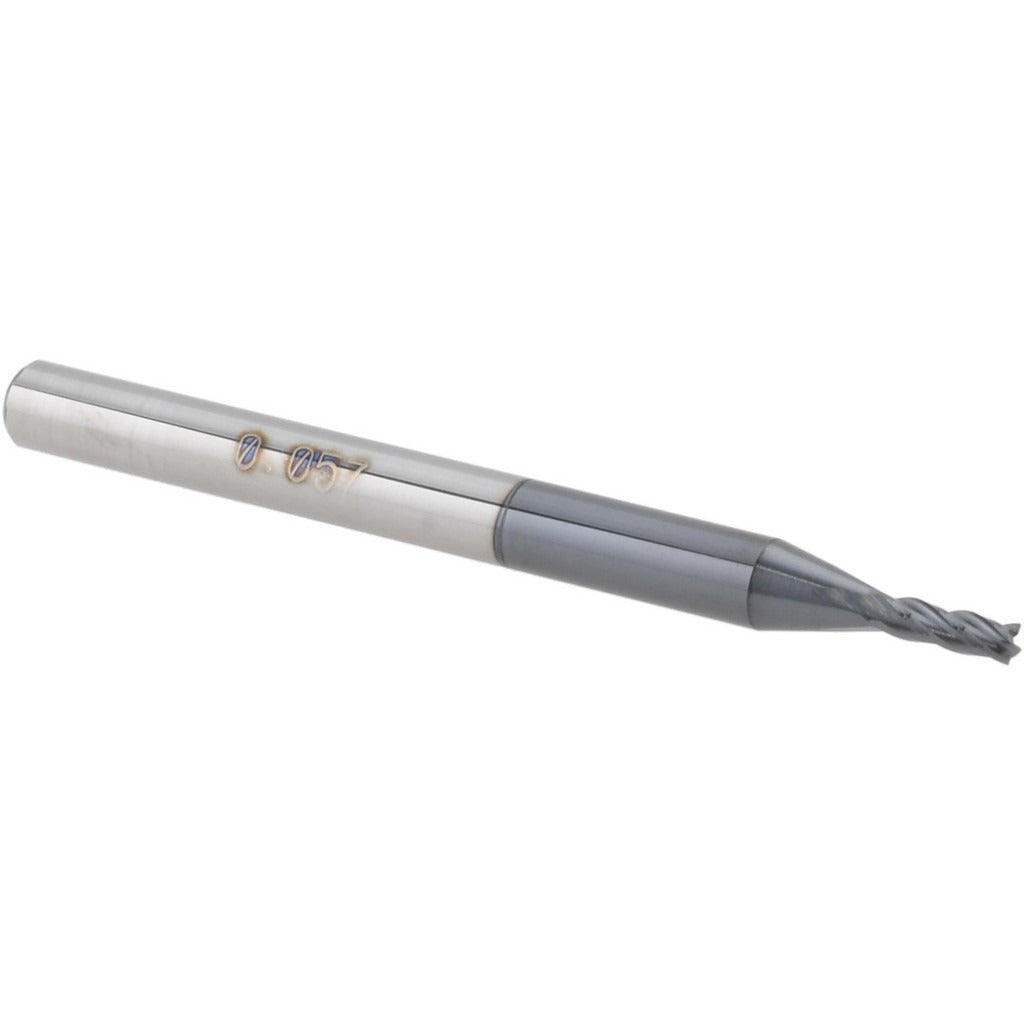

Accupro 14796972 Square End Mill 0.057in 4 Flute Altin Carbide

Product Description

The ACCUPRO 14796972 is a solid carbide square end mill designed for precision milling operations in metalworking and machining environments. With a 0.057 inch cutting diameter and a 0.171 inch length of cut, this tool is engineered for detail work, slotting, and profiling in tight geometries. The AlTiN coating improves heat resistance and extends tool life in ferrous and hardened materials. A 30-degree helix angle promotes smooth chip evacuation and reduces cutting forces. This end mill is intended for use by CNC machinists and tool-and-die professionals working on machining centers and CNC mills.

This end mill is suited for light-to-medium milling of ferrous metals, stainless steel, cast iron, and hardened alloys in both production and job-shop settings. Its micrograin solid carbide construction makes it a strong fit for high-speed machining applications where tool deflection and wear resistance are critical. The single-end configuration and right-hand cut with right-hand flute direction are standard for conventional and climb milling on vertical and horizontal CNC machining centers.

Key Features

• 0.057 inch cutting diameter with plus 0.0000 inch / minus 0.0010 inch mill diameter tolerance
• AlTiN coating for high-heat resistance and extended tool life in ferrous materials
• Micrograin solid carbide construction for rigidity and wear resistance
• 30-degree helix angle promotes efficient chip evacuation
• Centercutting design allows plunge entry into the workpiece
• 4-flute configuration balances chip load and surface finish quality
• Single-end, right-hand cut with spiral flute geometry

Compatibility

Designed as an OEM-style replacement or standard tooling selection for CNC machining centers and milling machines accepting a 0.125 inch round shank. Part of the ACCUPRO ASQSC4-AT-CC-30H series.

Installation Notes

Installation should be performed by a qualified CNC machinist or toolroom professional. Ensure the spindle is fully powered down and locked out before changing tooling. Secure the shank in a collet or end mill holder rated for the 0.125 inch shank diameter, and verify runout with a dial indicator before beginning a cut. Follow machine manufacturer torque specifications for collet nuts and tool holders.
