Accupro 14796948 Square End Mill 0.029 in 4 Flute Altin

Product Description

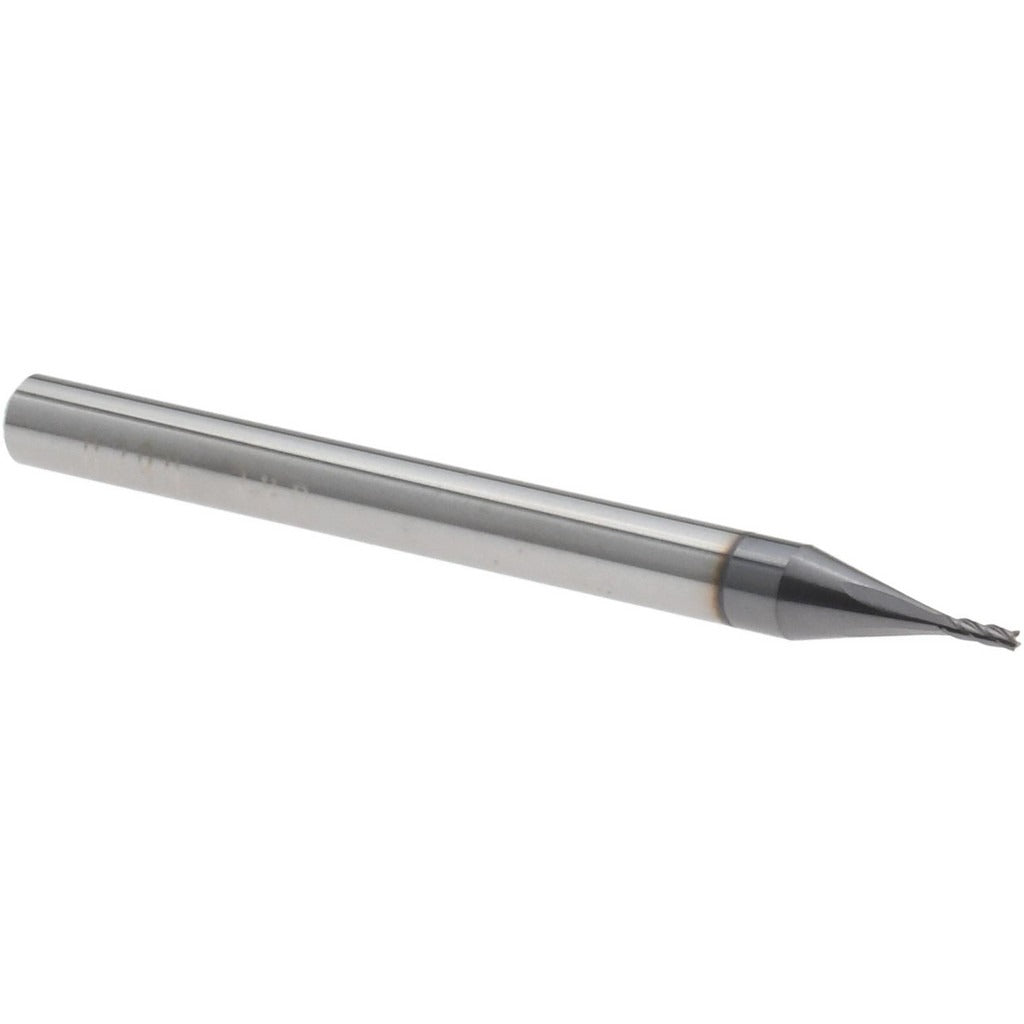

The ACCUPRO 14796948 is a solid carbide square end mill designed for precision milling in demanding machining applications. With a 0.029-inch cutting diameter and a 0.087-inch length of cut, this tool is built for fine-detail work in tight geometries and small-feature milling. The four-flute configuration paired with a 30-degree helix angle promotes efficient chip evacuation and smooth cutting action. An AlTiN coating provides thermal resistance and extended tool life at elevated cutting speeds. Micrograin carbide construction delivers the rigidity and edge retention required for hard materials and high-feed operations. This end mill is a single-end tool with right-hand cutting and right-hand flute direction.

This end mill is suited for precision machining operations in job shops, tool rooms, and production environments. It is commonly used in CNC machining centers for small-feature milling, slotting, and profiling in hardened steels, stainless steels, and high-temperature alloys where the AlTiN coating provides oxidation resistance. The 1/8-inch shank diameter makes it compatible with standard collet systems used across vertical and horizontal machining centers. It is installed and operated by machinists and CNC programmers working to tight tolerances on small-scale components.

Key Features

• 0.029-inch cutting diameter for fine-detail and small-feature milling
• AlTiN coating for thermal resistance and extended tool life in hard materials
• Micrograin solid carbide construction for rigidity and edge retention
• 4-flute design with 30-degree helix angle for efficient chip evacuation
• Centercutting geometry allows plunge entry into workpiece
• Single-end configuration with right-hand cut and right-hand flute direction

Compatibility

Designed for use in CNC machining centers with standard 1/8-inch collet or tool holder systems. Part of the ACCUPRO ASQSC4-AT-CC-30H series of AlTiN-coated solid carbide square end mills.

Installation Notes

This tool is installed by machinists using a compatible collet or end mill holder sized for a 1/8-inch shank. Ensure the machine spindle is fully stopped and locked out before changing tooling. Verify runout at the tool holder before operation, as excessive runout will accelerate wear on a tool of this diameter. Follow the machine manufacturer and tooling manufacturer recommendations for speeds and feeds appropriate to the workpiece material.
