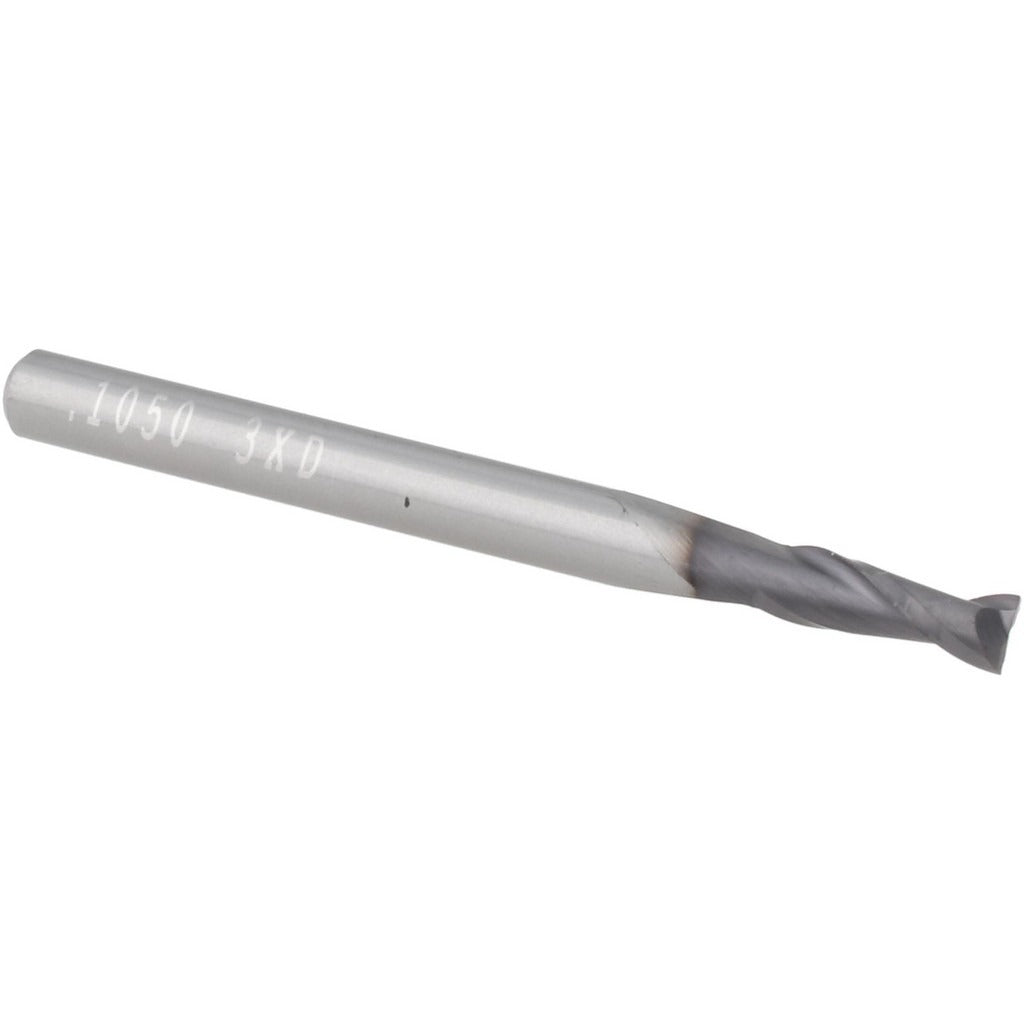

Accupro 14796934 Square End Mill 0.105 in 2 Flute Altin

Product Description

The ACCUPRO 14796934 is a solid carbide square end mill designed for precision metal removal in milling operations. It features a 0.105-inch cutting diameter with a 0.315-inch length of cut and a 2-flute, right-hand spiral configuration at a 30-degree helix angle. The micrograin carbide substrate provides edge stability in demanding cuts, and the AlTiN coating adds thermal resistance for higher-speed dry or semi-dry machining. Overall length is 1.5 inches with a 1/8-inch shank diameter. This tool is single-ended and centercutting, allowing plunge entry. It is installed and used by machinists and CNC operators in production and job-shop environments.

This end mill is suited for small-feature milling applications including slots, pockets, and profile cuts in ferrous and non-ferrous materials. Its micrograin carbide body and AlTiN coating make it appropriate for hardened steels, stainless steel, and high-temperature alloys where heat buildup at the cutting edge is a concern. The compact 0.105-inch diameter targets tight-tolerance work on parts with fine detail or restricted clearances.

Key Features

• 0.105-inch cutting diameter with a mill diameter tolerance of +0.0000 / -0.0010 inches for consistent sizing
• AlTiN coating for elevated thermal resistance in high-speed and dry machining conditions
• Micrograin solid carbide construction for rigidity and edge retention
• 30-degree right-hand helix with 2 flutes for efficient chip evacuation in small-diameter cuts
• Centercutting geometry allows direct plunge entry without a pre-drilled pilot
• 1/8-inch shank with a tolerance of -0.0001 / -0.0003 inches for secure collet or end mill holder fitment

Compatibility

Designed as an OEM-style solid carbide square end mill for use in standard 1/8-inch collets, end mill holders, or shrink-fit toolholders on CNC machining centers and manual mills.

Installation Notes

Installation is performed by a machinist or CNC setup technician. The spindle must be fully stopped and the machine powered down before changing tooling. Use a properly sized collet or end mill holder matching the 1/8-inch shank diameter and ensure the tool is seated to the recommended gauge line before tightening. Verify runout with a dial indicator after installation; excessive runout on small-diameter carbide end mills accelerates edge chipping and tool failure.
