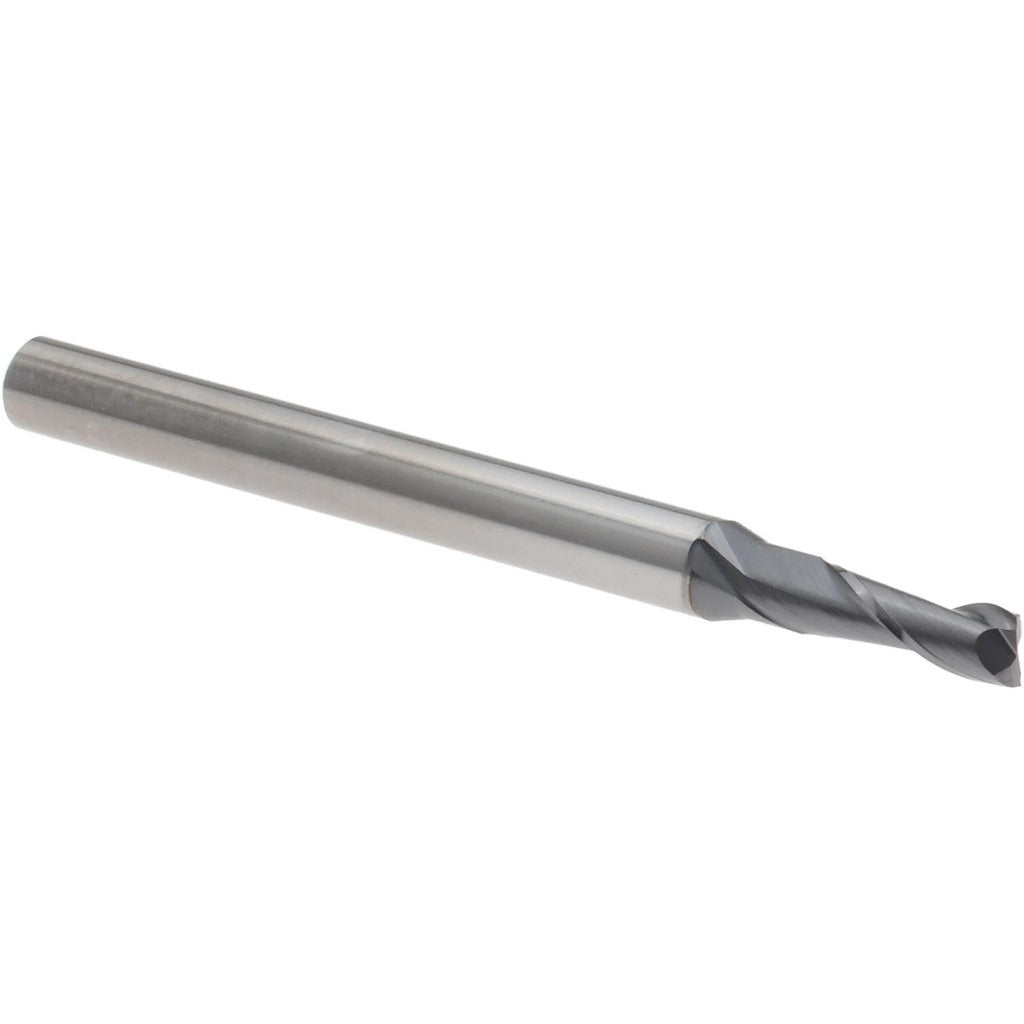

Accupro 14796932 Square End Mill 3/32 in 2 Flute Carbide

Product Description

The ACCUPRO 14796932 is a solid carbide square end mill designed for precision milling in metalworking and machining applications. Built on a micrograin carbide substrate and coated with AlTiN (Aluminum Titanium Nitride), this tool delivers high hardness and thermal resistance at elevated cutting temperatures. It features a 3/32 inch (0.093 inch) mill diameter, a 9/32 inch (0.281 inch) length of cut, and a 1/8 inch shank diameter. The 30-degree helix angle promotes efficient chip evacuation, while the right-hand spiral flute geometry supports smooth, consistent cutting action. This end mill is installed by machinists and CNC operators working in production and toolroom environments.

This end mill is suited for ferrous and hardened materials where heat resistance is critical. The AlTiN coating extends tool life in dry or semi-dry cutting conditions, making it a practical choice for milling steel, stainless, and high-temperature alloys. The single-end, center-cutting configuration allows for both plunge and peripheral milling. With an overall length of 1-1/2 inches and a compact 3/32 inch diameter, it is well suited for fine detail work, slot milling, and profiling in tight geometries on vertical mills and CNC machining centers.

Key Features

• Micrograin solid carbide substrate for rigidity and wear resistance
• AlTiN coating provides high thermal resistance for dry or semi-dry cutting
• 30-degree right-hand helix for efficient chip evacuation
• Center-cutting design allows direct plunge entry
• Right-hand cutting direction with spiral flute geometry
• Tight mill diameter tolerance of +0.0000 / -0.0010 inches for precision fitment

Compatibility

Designed as an OEM-style replacement and standard tooling option for use in CNC machining centers, vertical mills, and manual milling machines accepting a 1/8 inch shank. Part of the ACCUPRO ASQSC2-AT-CC-30H series.

Installation Notes

Installation is performed by a qualified machinist or CNC operator. Ensure the spindle is fully stopped and the machine is powered down before changing tooling. Use an appropriate collet or end mill holder rated for the 1/8 inch shank diameter and verify runout before cutting. Follow the machine manufacturer guidelines and applicable shop safety practices for tool changes and speeds and feeds selection.
