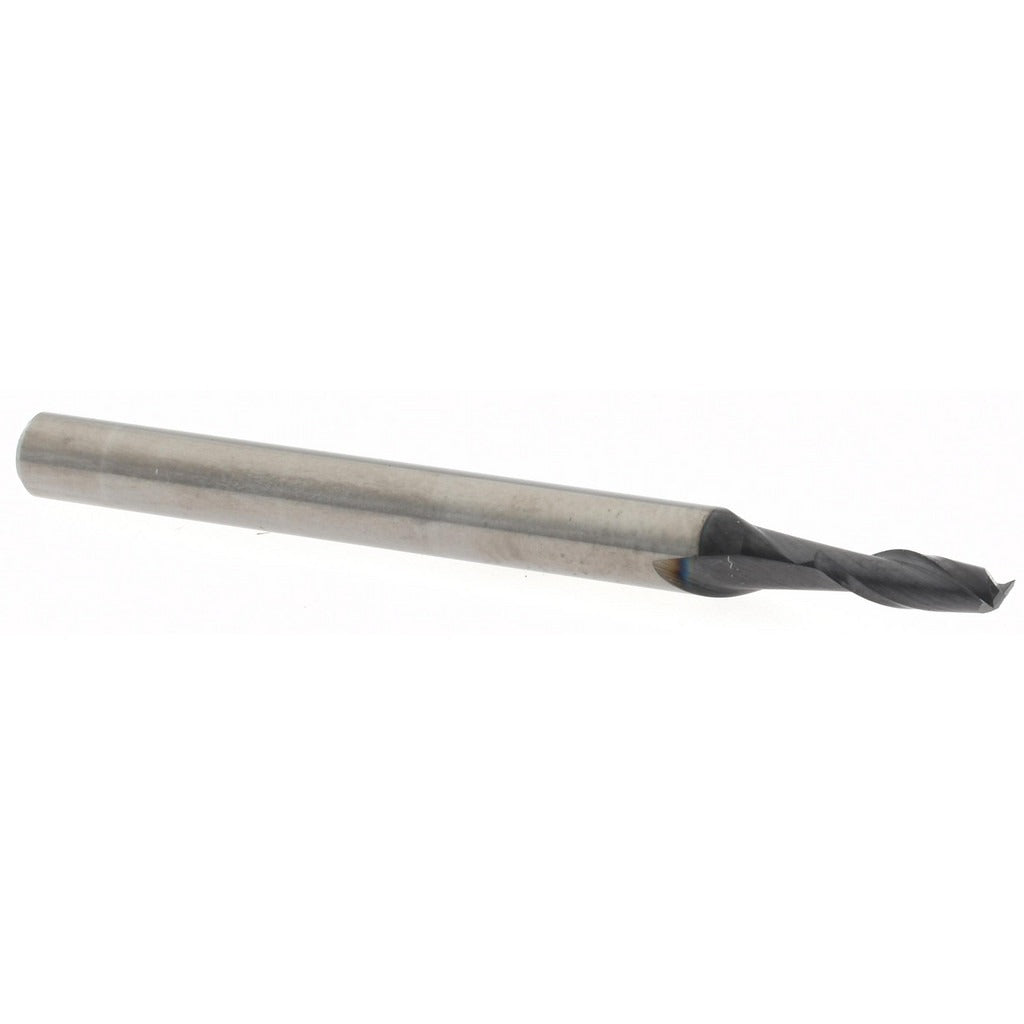

Accupro 14796929 Square End Mill 0.08in 2 Flute Altin Carbide

Product Description

The ACCUPRO 14796929 is a solid carbide square end mill designed for precision milling operations in ferrous and non-ferrous materials. The cutting diameter measures 0.08 inches with a 0.24-inch length of cut and a 1.5-inch overall length. A 30-degree helix angle and AlTiN coating give this tool strong performance in dry and semi-dry cutting conditions at elevated temperatures. The micrograin carbide substrate supports fine edge retention in demanding applications. This is a single-end, centercutting tool, meaning it can plunge as well as cut laterally. It is sold individually and suited for CNC machinists, toolroom operators, and precision shop technicians.

This end mill fits applications requiring small-diameter finish and profile milling, slot cutting, and contouring in tight geometries. The 0.125-inch shank diameter makes it compatible with standard collet systems commonly found on vertical machining centers, CNC mills, and precision toolroom equipment. The regular-length designation and 2-flute configuration work well in aluminum, steel, stainless, and similar materials where chip evacuation and surface finish are priorities.

Key Features

• 0.08-inch cutting diameter with mill diameter tolerance of +0.0000 / -0.0010 inches for tight dimensional control
• AlTiN coating provides heat resistance and extended tool life in dry or minimal-coolant cutting
• Micrograin solid carbide construction for rigidity and sharp edge retention
• 30-degree right-hand spiral flutes promote efficient chip evacuation
• Centercutting design allows plunge entry without a pre-drilled pilot hole
• 2-flute geometry supports higher feed rates in softer materials and non-ferrous applications

Compatibility

Designed for use in standard 1/8-inch collet or end mill holders on CNC vertical machining centers and precision toolroom mills requiring small-diameter square end milling.

Installation Notes

Installation should be performed by a qualified CNC machinist or toolroom technician. Ensure the machine spindle is fully stopped and locked out before changing tooling. Seat the 0.125-inch shank fully into the collet or tool holder to the recommended gauge line and tighten to the holder manufacturer's specified procedure. Inspect the cutting edge and coating for chips or damage before each use.
