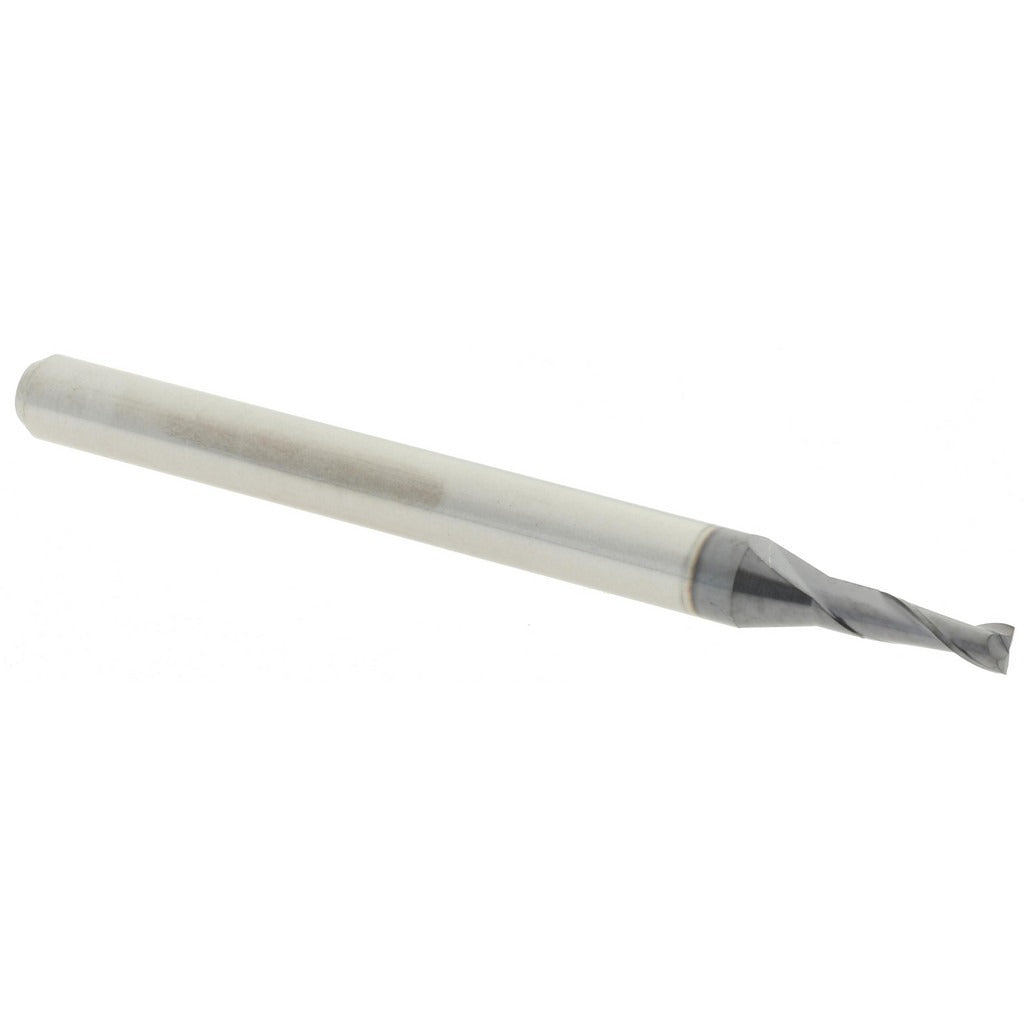

Accupro 14796924 Square End Mill 0.065in 2 Flute Carbide

Product Description

The ACCUPRO 14796924 is a solid carbide square end mill designed for precision milling in metalworking and machining applications. With a 0.065-inch cutting diameter and a 0.195-inch length of cut, this tool handles tight-tolerance slotting, profiling, and peripheral milling. The micrograin carbide substrate and AlTiN coating deliver hardness and thermal resistance well suited to dry or high-speed cutting in ferrous and hard materials. Two right-hand spiral flutes with a 30-degree helix angle promote efficient chip evacuation. Center-cutting capability allows direct plunge entry. This end mill is used by machinists and CNC operators working in job shops, aerospace, medical device, and general manufacturing environments.

This end mill is sized for small-diameter finish and semi-finish work in CNC machining centers and manual milling machines. The 0.125-inch shank diameter fits standard ER and collet toolholding systems common in precision shops. The 1.5-inch overall length and regular length classification suit most vertical and horizontal milling setups. It is appropriate for use in aluminum, stainless steel, hardened steels, titanium, and other demanding materials where an AlTiN coating provides a thermal barrier at the cutting edge.

Key Features

• 0.065-inch cutting diameter with mill diameter tolerance of +0.0000 / -0.0010 inches
• AlTiN coating for elevated heat and wear resistance in hard and abrasive materials
• Micrograin solid carbide substrate for rigidity and edge retention
• 2 right-hand spiral flutes with 30-degree helix for efficient chip flow
• Center-cutting geometry allows direct plunge milling
• 0.125-inch shank diameter with tolerance of -0.0001 / -0.0003 inches

Compatibility

Designed as an OEM-style replacement or direct-use end mill for CNC machining centers and manual mills accepting a 0.125-inch shank diameter via collet or ER toolholding systems.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the spindle is fully stopped and the machine is in a safe state before changing tooling. Seat the shank fully within the collet or toolholder to the recommended grip length before torquing the retention nut. Verify runout with a dial indicator after tool changes when working to tight tolerances, as small-diameter end mills are sensitive to collet wear and contamination.
