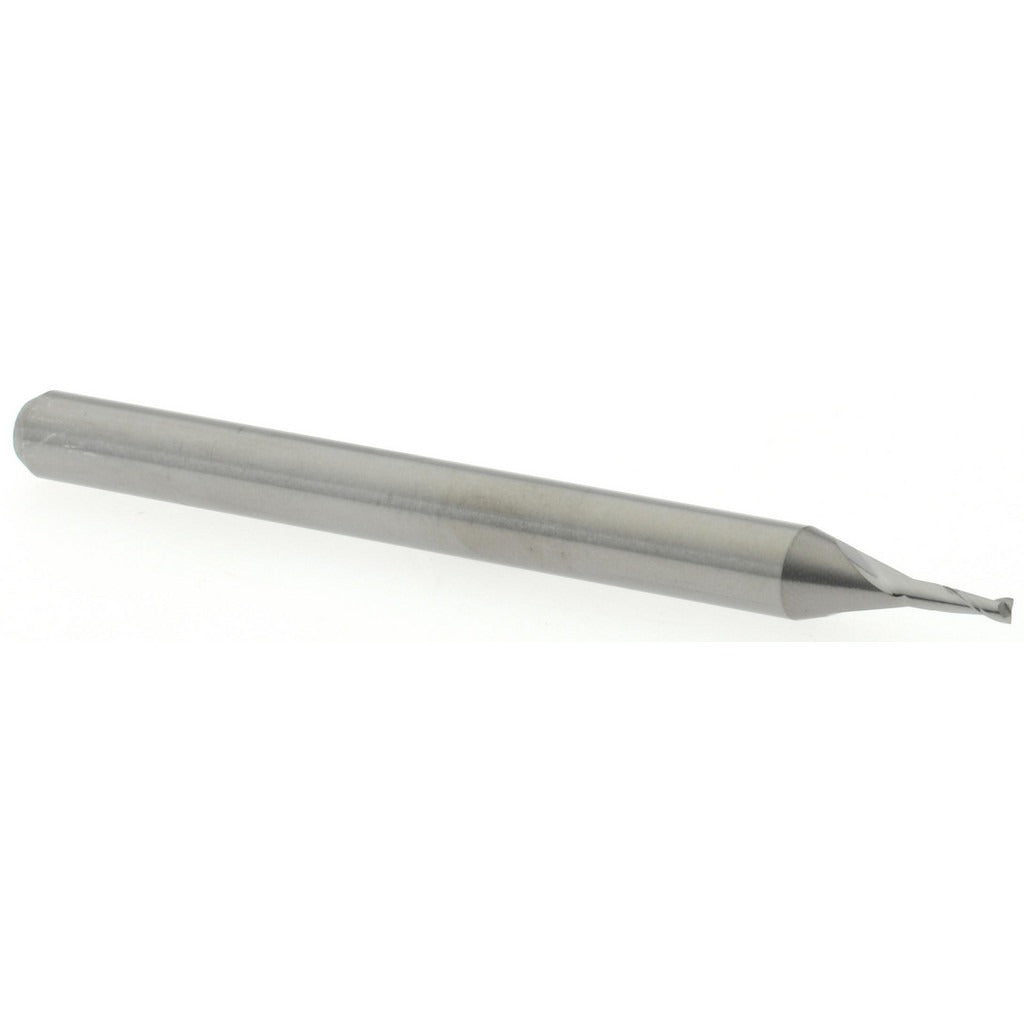

Accupro 14796905 Square End Mill 0.034 in 2 Flute Carbide

Product Description

The ACCUPRO 14796905 is a solid carbide square end mill designed for precision milling operations in metalworking and machining applications. With a cutting diameter of 0.034 inches and a 0.102-inch length of cut, this tool is built for fine detail work and tight-tolerance slots, pockets, and profiles. The micrograin carbide construction provides the hardness and rigidity needed to maintain edge integrity at small diameters. A 30-degree helix angle promotes efficient chip evacuation and smooth cutting action. This end mill is installed and operated by machinists and CNC tooling professionals working on precision components.

This end mill is suited for light-duty milling of ferrous and non-ferrous materials where small-diameter, high-precision cuts are required. Its centercutting capability allows direct plunge entry without a pre-drilled pilot hole, making it practical for a range of slotting and profiling operations. The 1/8-inch shank diameter fits standard collet systems commonly found on CNC machining centers and manual mills. The regular-length configuration keeps overhang minimal and supports rigidity during operation.

Key Features

• Solid micrograin carbide construction for hardness and wear resistance at small diameters
• 0.034-inch cutting diameter with a mill diameter tolerance of +0.0000 / -0.0010 inches
• 0.102-inch length of cut for controlled depth engagement
• 30-degree spiral flute helix angle for efficient chip flow and reduced cutting forces
• Centercutting design allows direct plunge entry into workpiece material
• Right-hand cut and right-hand flute configuration; uncoated finish

Compatibility

Designed as an OEM-style replacement or direct tooling selection for CNC machining centers and manual milling machines equipped with 1/8-inch collet or chuck systems accepting standard straight-shank end mills.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer guidelines. Ensure the spindle is fully stopped and power is locked out before changing tooling. Seat the shank fully into the collet to the minimum recommended engagement depth to prevent tool pullout during operation. Verify runout with a dial indicator before initiating the cut, especially critical at this small diameter to avoid tool breakage.
