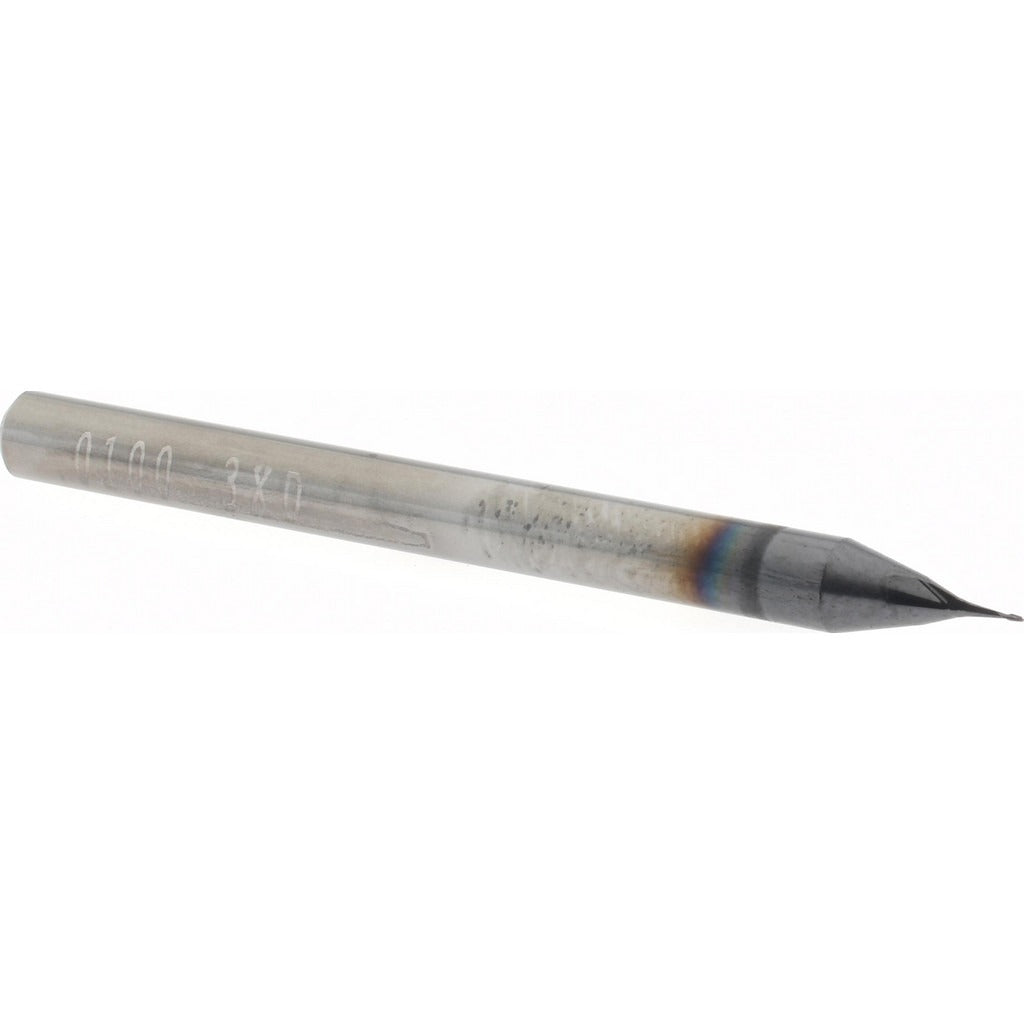

Accupro 14796885 Square End Mill 0.01 in 2 Flute Carbide

Product Description

The ACCUPRO 14796885 is a solid carbide square end mill designed for precision milling in tight-tolerance applications. With a 0.01 inch cutting diameter and a 1/32 inch (0.03 inch) length of cut, this tool is built for micro-milling work where dimensional accuracy is critical. The 2-flute, spiral-flute geometry with a 30-degree helix angle promotes efficient chip evacuation in shallow cuts. An AlTiN coating adds heat and wear resistance, extending tool life in hard and abrasive materials. The centercutting design allows plunge entry. This end mill is intended for use by machinists and tool-and-die professionals working on CNC machining centers and manual mills.

This end mill is suited for fine detail work, slotting, profiling, and micro-cavity milling in materials such as hardened steels, stainless alloys, titanium, and other difficult-to-machine metals where a small-diameter, high-performance tool is required. The 1/8 inch shank diameter fits standard collet systems commonly found in CNC machining centers. The 1-1/2 inch overall length keeps the tool compact and rigid, reducing deflection during fine finishing passes. Right-hand cut and right-hand flute orientation match conventional CNC spindle setups.

Key Features

• 0.01 inch cutting diameter for micro-milling and fine detail work
• AlTiN coating for improved heat resistance and extended tool life in hard materials
• 30-degree helix angle with spiral flute geometry for efficient chip evacuation
• Centercutting design allows direct plunge entry without pre-drilling
• Micrograin solid carbide construction provides rigidity and edge retention
• Right-hand cut, right-hand flute for compatibility with standard CNC spindle rotation

Compatibility

Designed for use in CNC machining centers and manual mills equipped with 1/8 inch collet or collet chuck systems accepting standard round shank end mills.

Installation Notes

Installation should be performed by a qualified machinist. Ensure the spindle is fully stopped and the machine is powered down before changing tooling. Seat the shank fully into the collet to the manufacturer-recommended engagement depth and torque the collet nut per the collet system specifications. Inspect the cutting edge for chips or damage before each use, as micro-diameter carbide tools are brittle and sensitive to improper handling or excessive runout.
