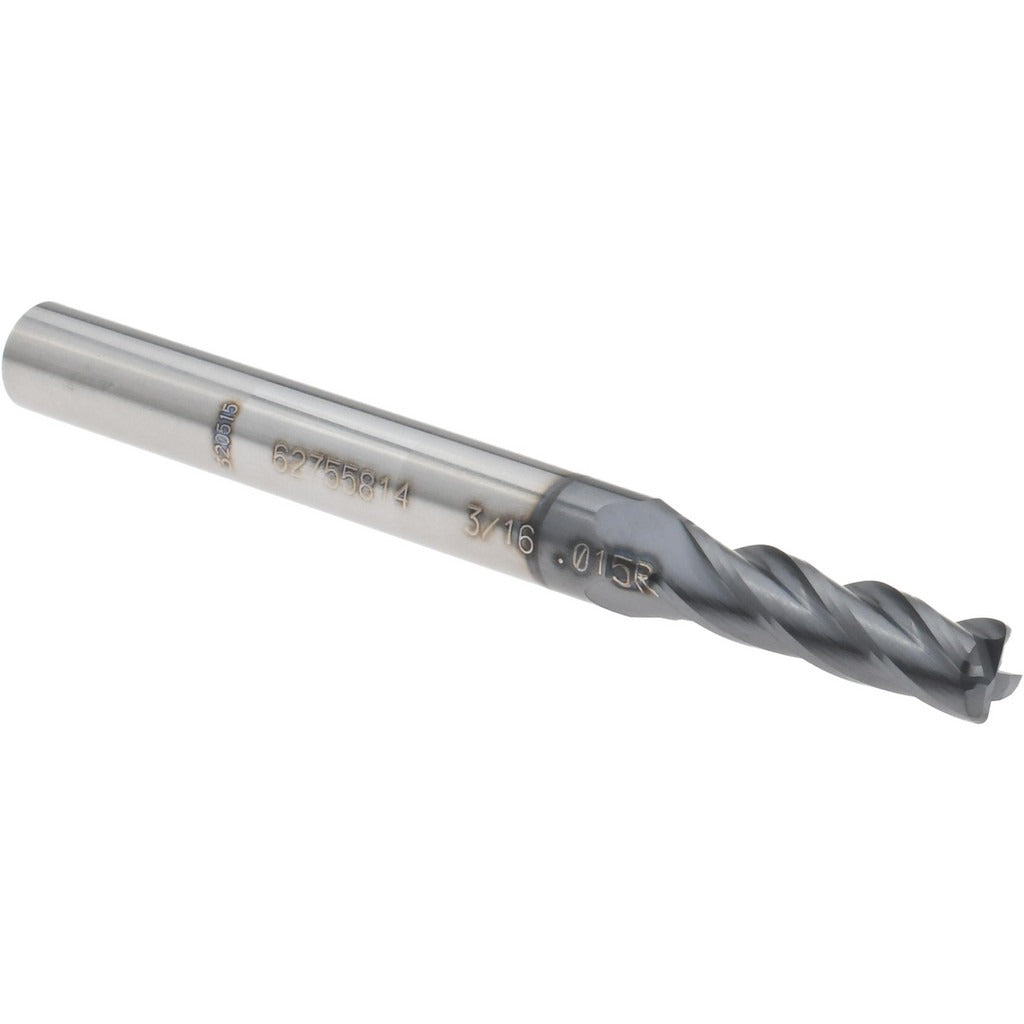

Accupro 14796339 Corner Radius End Mill 0.1562 in 4 Flute

Product Description

The ACCUPRO 14796339 is a solid carbide corner radius end mill designed for precision milling in tight-tolerance and miniature machining applications. It carries a 0.1562-inch cutting diameter with a 0.0150-inch corner radius that produces a controlled blend between the floor and wall of a milled feature, reducing stress concentrations and improving surface finish. The flute length (length of cut) is 0.5620 inches, the overall length is 2 inches, and the shank diameter is 3/16 inch. An AlTiN coating provides hardness and heat resistance at elevated cutting temperatures. This tool is installed and run by machinists and CNC operators working in job shops, tool-and-die, aerospace, and mold-and-die environments.

This end mill is suited to small-feature milling, slotting, and profiling in ferrous and non-ferrous metals as well as hardened steels where AlTiN coating performance is advantageous. The miniature series designation indicates it is built for small-envelope work where a standard-size tool cannot reach. The 30-degree helix and right-hand cutting direction support efficient chip evacuation in both conventional and climb milling passes. Centercutting geometry allows direct plunge entry. Single-end configuration means the cutting end is one side only.

Key Features

• 0.1562-inch cutting diameter with 0.0150-inch corner radius for blended floor-to-wall transitions
• AlTiN coating for extended tool life in high-temperature cutting conditions
• Solid micrograin carbide substrate for rigidity and wear resistance in small-diameter tooling
• 4-flute, right-hand spiral geometry with 30-degree helix for balanced chip load and finish
• Centercutting design permits direct plunge milling without a pre-drilled entry
• Miniature series build with 3/16-inch shank fits standard collets and tool holders for small-diameter tooling

Compatibility

Designed as an OEM-style replacement or direct-use solid carbide corner radius end mill for CNC machining centers and manual mills equipped with a collet or tool holder accepting a 3/16-inch shank diameter.

Installation Notes

Installation is performed by a machinist or CNC setup technician. Ensure the machine spindle is fully stopped and the tool holder is clean and free of runout before seating the shank. Torque the collet nut to the tool holder manufacturer specification. Verify radial runout at the cutting diameter before initiating a cut, as excessive runout on a small-diameter carbide end mill accelerates breakage.
