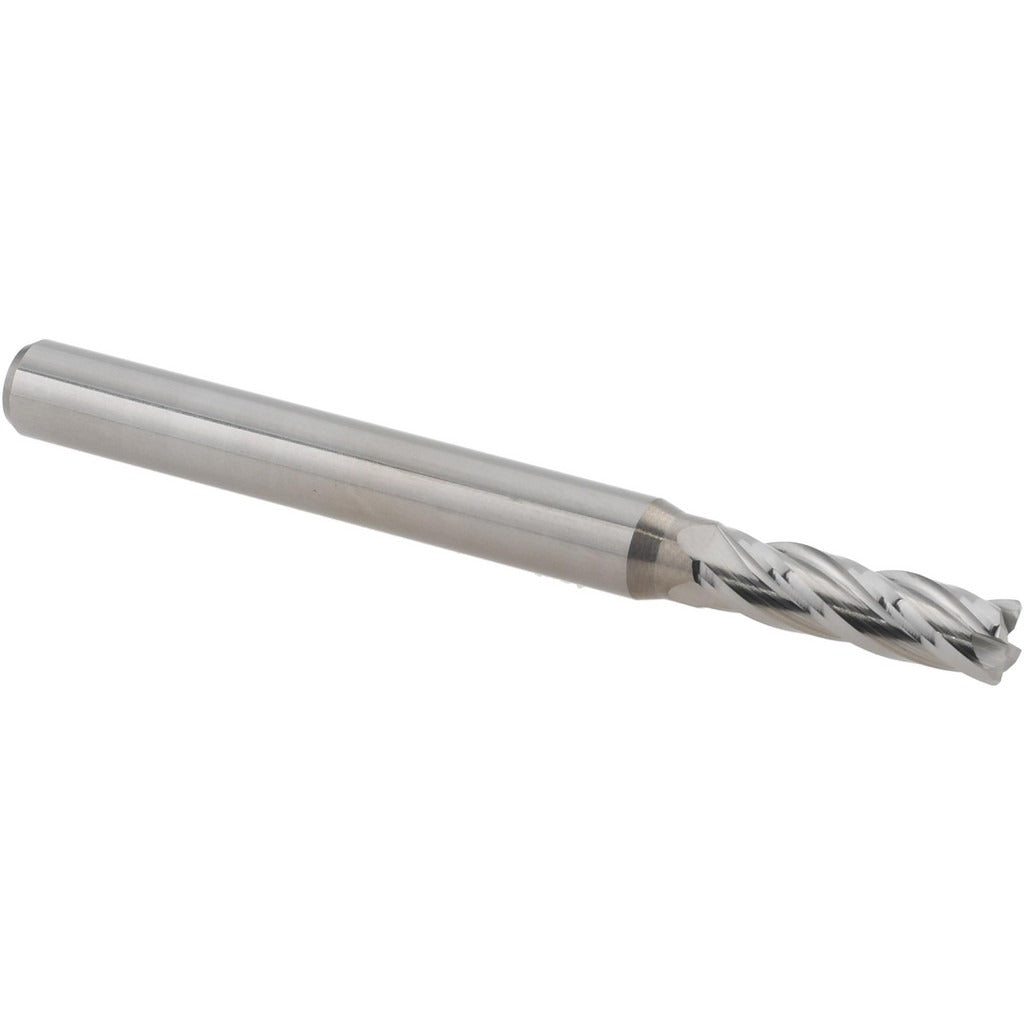

Accupro 14796338 Corner Radius End Mill 0.1562in 4 Flute

Product Description

The ACCUPRO 14796338 is a solid carbide corner radius end mill designed for precision milling in tight-tolerance machining applications. With a 0.1562-inch cutting diameter and a 0.0150-inch corner radius, this miniature series tool produces blended corner profiles that reduce stress concentrations and extend part life. The 4-flute, right-hand spiral design provides efficient chip evacuation while maintaining a smooth finish on ferrous and non-ferrous materials. The bright/uncoated finish suits applications where coating interaction with the workpiece material is a concern. This tool is installed and operated by machinists and CNC tooling technicians working in job shops, production environments, and prototype machining cells.

This end mill fits miniature and close-tolerance milling operations where a small diameter tool is required for slotting, profiling, or contouring. The centercutting geometry allows plunge entry, adding flexibility to its use in multi-axis CNC machining centers and manual mills. The 3/16-inch shank diameter fits standard collet chucks and end mill holders commonly found in vertical machining centers and toolroom mills. The 0.748-inch length of cut and 2-inch overall length provide clearance for moderate-depth passes without excessive tool deflection at this diameter.

Key Features

• 0.0150-inch corner radius blends sharp edges to reduce part stress and tool chipping
• Solid carbide micrograin construction provides rigidity and wear resistance at small diameters
• 4-flute right-hand spiral geometry balances chip load and surface finish
• Centercutting design allows direct plunge entry without a pre-drilled pilot hole
• Bright/uncoated finish compatible with a wide range of workpiece materials
• Miniature series proportions suited to fine-detail and close-tolerance work

Compatibility

Designed as an OEM-style miniature end mill for use in standard 3/16-inch collet chucks and end mill holders on CNC machining centers and manual vertical mills.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Secure the shank fully into the collet or end mill holder to the recommended engagement depth before torquing the retention system. Verify runout with a dial indicator before beginning the cut, as runout at this diameter will significantly affect tool life and part accuracy. Never exceed the tool manufacturer's recommended speeds and feeds for the material being cut.
