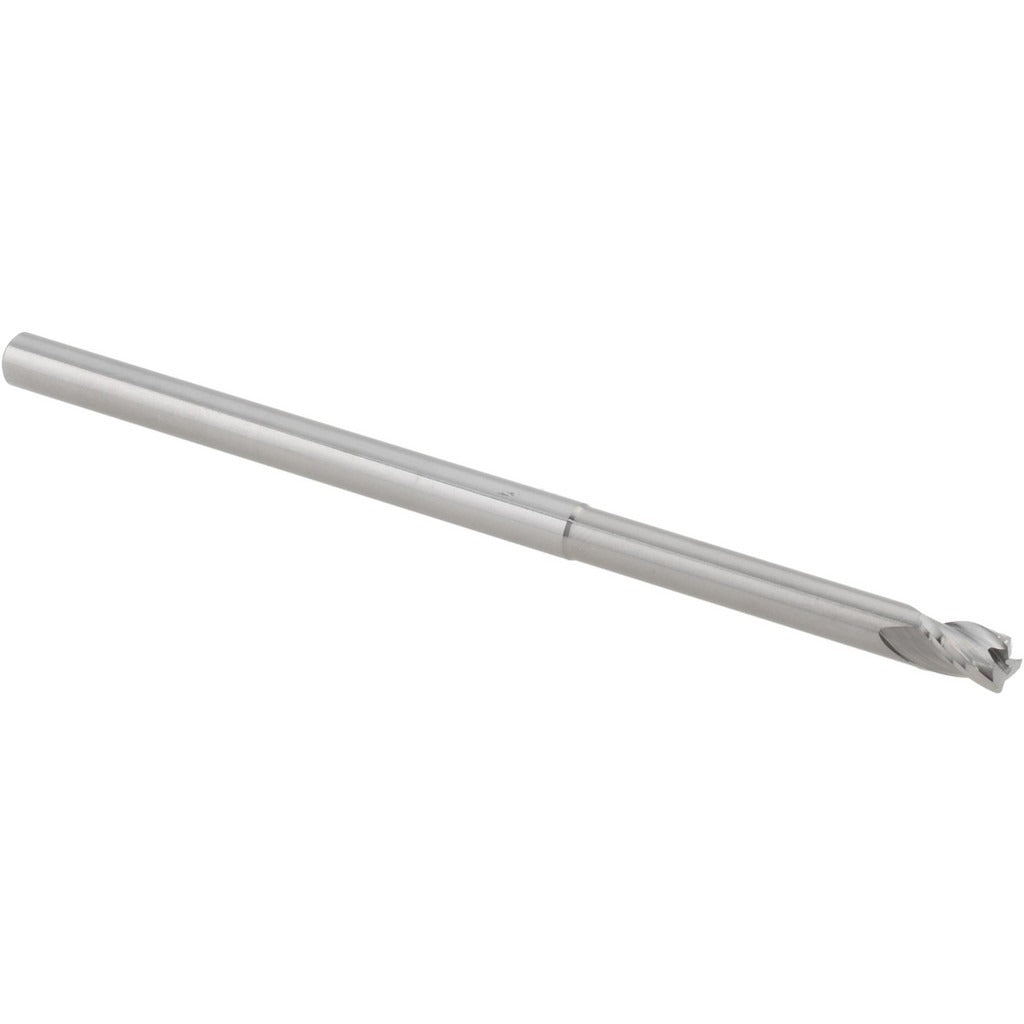

Accupro 14796323 Corner Radius End Mill 1/8 in 3 Flute Carbide

Product Description

The ACCUPRO 14796323 is a solid carbide corner radius end mill built for precision milling in tight geometries. It features a 1/8 inch diameter, a 0.0100 inch corner radius, and three flutes ground from micrograin carbide stock. The 0.625 inch length of cut and 1 inch reach length make it well-suited for deep-pocket profiling in small-scale applications. The bright uncoated finish keeps the tool at its ground tolerance without adding coating buildup at the corner radius. Machinists and tool-and-die professionals install this tool in CNC machining centers and manual mills wherever a small-diameter, corner-breaking end mill is required.

This end mill falls within the Miniature Series and is designed for applications demanding tight tolerances in small features. Typical uses include profiling, slotting, and pocket milling in ferrous and non-ferrous materials where a small corner relief is specified on the finished part. The extended reach configuration adds clearance when working in narrow cavities or tall workpiece setups. It is a single-end, centercutting tool with right-hand cutting and right-hand flute direction, suitable for conventional CNC milling operations.

Key Features

• Micrograin solid carbide construction for rigidity and wear resistance in precision milling
• 0.0100 inch corner radius reduces stress concentration at part corners and extends tool life
• Three-flute spiral geometry balances chip evacuation and finish quality
• Centercutting design allows plunge entry without a pre-drilled pilot
• Extended reach of 1 inch provides clearance for deep-pocket and tall-workpiece setups
• Bright/uncoated finish maintains ground dimensional accuracy at the cutting edge

Compatibility

Designed as an OEM-style replacement or direct-use solid carbide corner radius end mill for CNC machining centers and manual mills accepting a 1/8 inch shank diameter tool holder.

Installation Notes

Installation is performed by machinists or tooling technicians using a collet or end mill holder sized for a 1/8 inch shank. Confirm runout at the spindle before engaging the cut, as small-diameter carbide tools are sensitive to deflection. Power down and lock out the spindle before changing tooling. Shank diameter tolerance is -0.0001 to -0.0003 inch, so verify holder bore condition before seating the tool.
