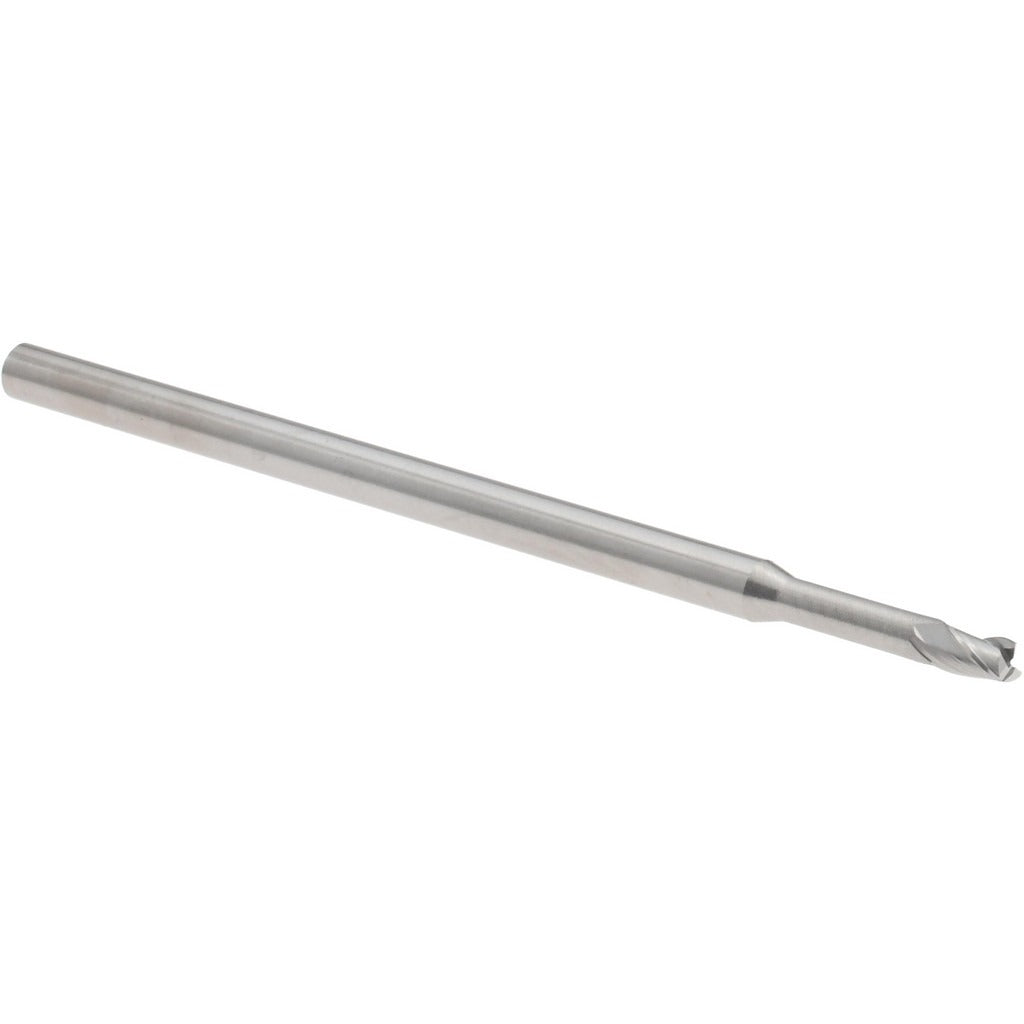

Accupro 14796249 Corner Radius End Mill 0.0938in 3 Flute

Product Description

The ACCUPRO 14796249 is a solid carbide corner radius end mill designed for precision milling in tight geometries and fine-detail work. With a 0.0938 inch cutting diameter and a 0.0050 inch corner radius, it is engineered for light-duty cuts where edge integrity and dimensional accuracy are critical. The micrograin carbide construction provides the rigidity and wear resistance needed for consistent performance in ferrous and non-ferrous materials. The bright uncoated finish makes it well-suited for materials where coating adhesion or contamination is a concern. This tool is installed and operated by machinists and tool-and-die professionals on CNC milling centers and manual mills.

This miniature end mill is used in applications requiring small-diameter, high-precision cutting — including mold and die work, medical component machining, aerospace detail parts, and electronics fixtures. The extended reach design, with a 0.5000 inch reach length, allows access to features in deeper pockets without sacrificing rigidity. Its 1.5 inch length of cut and 2.5 inch overall length make it a practical choice for shops running small-footprint workpieces on vertical machining centers.

Key Features

• 0.0938 inch cutting diameter with 0.0050 inch corner radius for fine-detail milling
• 3-flute, right-hand spiral configuration for efficient chip evacuation
• Micrograin solid carbide construction for wear resistance and edge stability
• Centercutting design allows plunge entry without pre-drilled pilot holes
• Extended reach with 0.5000 inch reach length for deeper pocket access
• Bright uncoated finish suitable for non-ferrous and specialty material applications

Compatibility

Designed as an OEM-style miniature solid carbide end mill for use in standard 1/8 inch collet systems on CNC and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist. Secure the shank fully within the collet or tool holder to the recommended engagement depth before tightening. Inspect the tool for chips or cracks before each use. Never exceed the recommended speed and feed parameters for the cutting diameter and work material.
