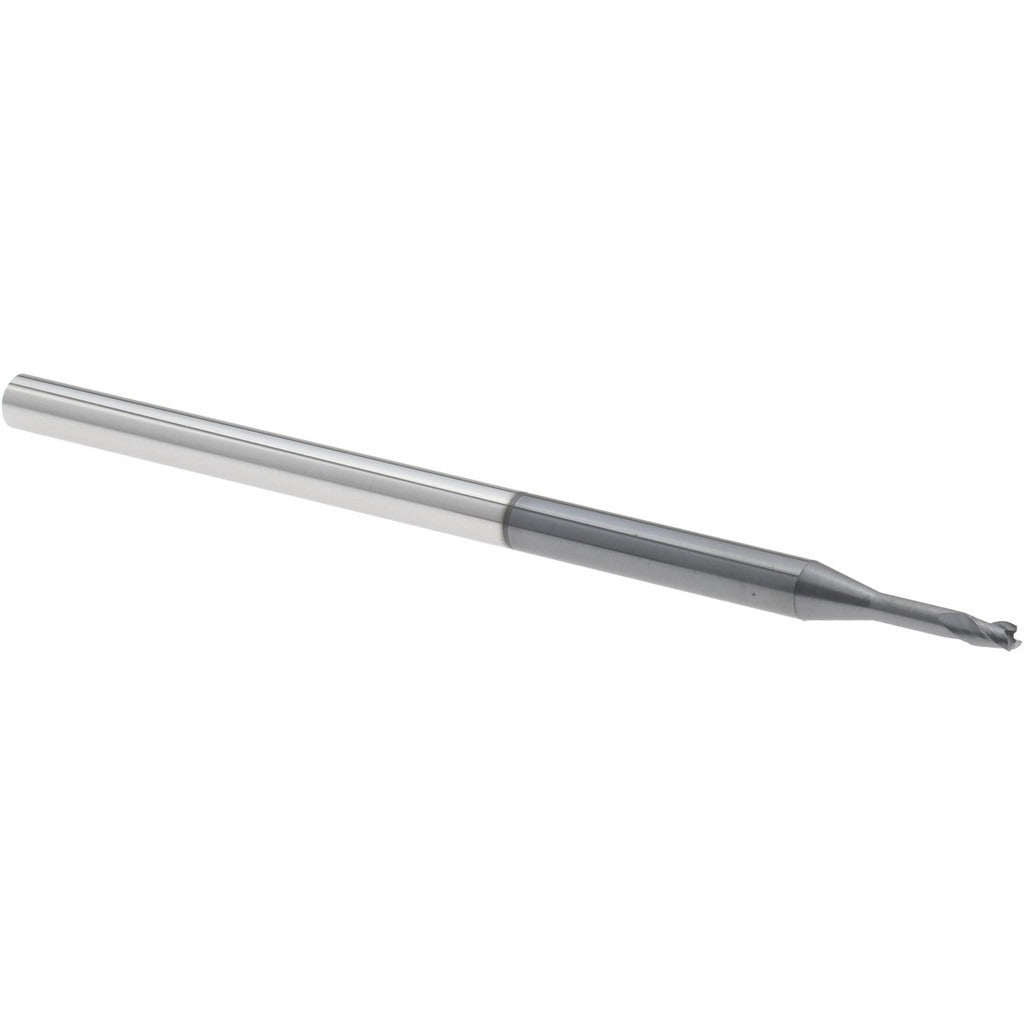

Accupro 14796234 Corner Radius End Mill 1/16 in 3 Flute

Product Description

The ACCUPRO 14796234 is a solid carbide corner radius end mill designed for precision milling in tight-tolerance applications. Built on a miniature series platform, it features a 1/16 inch (0.0625 inch) cutting diameter with a 0.0050 inch corner radius, 3 flutes, and an AlTiN coating for extended tool life in ferrous and high-hardness materials. The right-hand spiral flute geometry and centercutting design allow both plunge and lateral cutting operations. This tool is suited for machinists and CNC operators working with small-feature die work, mold cavities, and intricate part geometries where corner radius control and surface finish are critical.

This end mill is applied in CNC milling operations requiring miniature tooling with extended reach capability. The 0.3120 inch reach length and 0.0930 inch length of cut support deep-pocket and narrow-slot work where standard-length tooling cannot access the feature. The 1/8 inch shank diameter fits standard ER collets and end mill holders common to vertical machining centers and CNC routers. It is a single-end tool intended for production and toolroom use in metalworking shops handling mold, die, and precision component work.

Key Features

• 1/16 inch cutting diameter with 0.0050 inch corner radius for controlled edge geometry
• AlTiN coating improves heat resistance and wear life in hard and abrasive materials
• 3-flute, right-hand spiral design with centercutting capability for plunge entry
• Extended reach at 0.3120 inch reach length for deep-feature access
• Micrograin solid carbide construction for rigidity and edge retention in miniature tooling
• 30-degree helix angle balances chip evacuation and cutting forces in small-diameter applications

Compatibility

Designed as an OEM-style miniature end mill fitting standard 1/8 inch collets and end mill holders on CNC vertical machining centers and CNC routers.

Installation Notes

This tool is installed by machinists or CNC setup technicians. Ensure the machine spindle and collet are free of debris and within runout specification before seating the shank, as miniature-diameter carbide tooling is sensitive to collet runout. Power down and lock out the machine spindle before changing tooling. Consult the machine manufacturer and applicable shop safety standards for appropriate feed, speed, and depth-of-cut parameters based on workpiece material.
