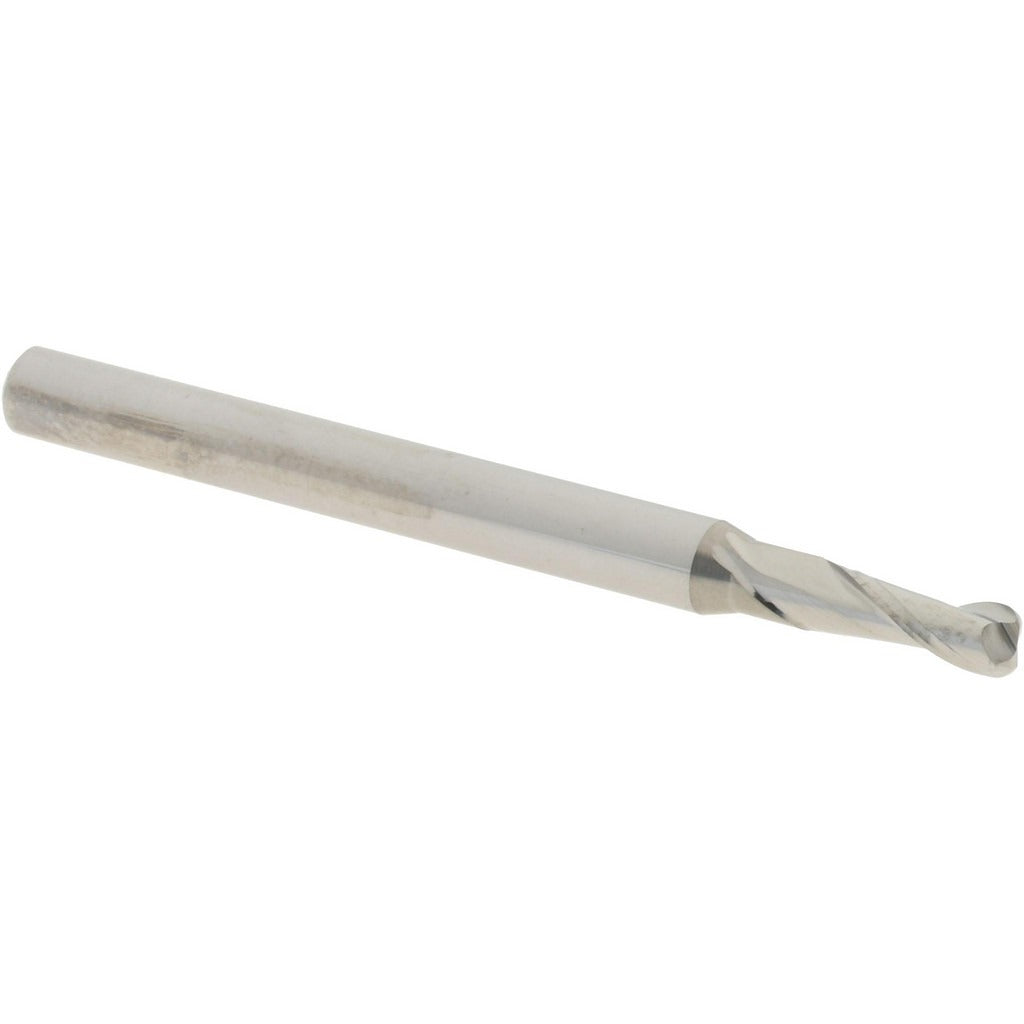

Accupro 14796213 Corner Radius End Mill 0.0938in 2 Flute Carbide

Product Description

The ACCUPRO 14796213 is a solid carbide corner radius end mill designed for precision milling of small features in ferrous and non-ferrous materials. It has a 0.0938-inch diameter, a 0.03-inch corner radius, and a 0.279-inch length of cut, making it well suited for tight-tolerance work where edge chipping and workpiece damage must be minimized. The micrograin solid carbide construction provides the rigidity and wear resistance required for consistent performance in CNC machining centers and manual mills. With 2 flutes and a bright uncoated finish, this tool is a standard choice for general-purpose small-diameter milling where coolant compatibility and chip clearance are priorities. Machinists and tool-and-die professionals are the primary installers.

This end mill fits production and prototype machining applications where small-diameter, corner-radius profile work is required. The miniature series designation makes it appropriate for micro-milling operations in mold making, aerospace component finishing, and precision part manufacturing. The 1/8-inch shank diameter suits standard miniature collet chucks found on CNC machining centers and high-speed spindles. Single-end geometry and centercutting capability allow both peripheral and plunge milling in confined areas without requiring a pilot hole.

Key Features

• 0.03-inch corner radius reduces stress concentration and extends tool life on detailed contour cuts
• Micrograin solid carbide substrate provides superior hardness and dimensional stability
• Centercutting design allows direct plunge entry into the workpiece
• Right-hand cut and right-hand spiral flute geometry for standard CNC spindle compatibility
• Bright uncoated finish suitable for use with most cutting fluids on a wide range of materials
• 1/8-inch shank fits standard miniature collet systems without adapters

Compatibility

Designed as an OEM-style miniature corner radius end mill for use in standard 1/8-inch collet chucks on CNC machining centers, high-speed spindles, and compatible manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer guidelines. Ensure the spindle is fully stopped and locked out before changing tooling. Seat the shank fully into the collet to the recommended depth and tighten to the collet manufacturer torque specification using appropriate collet wrenches. Verify tool runout with a dial indicator before beginning a production cut.
