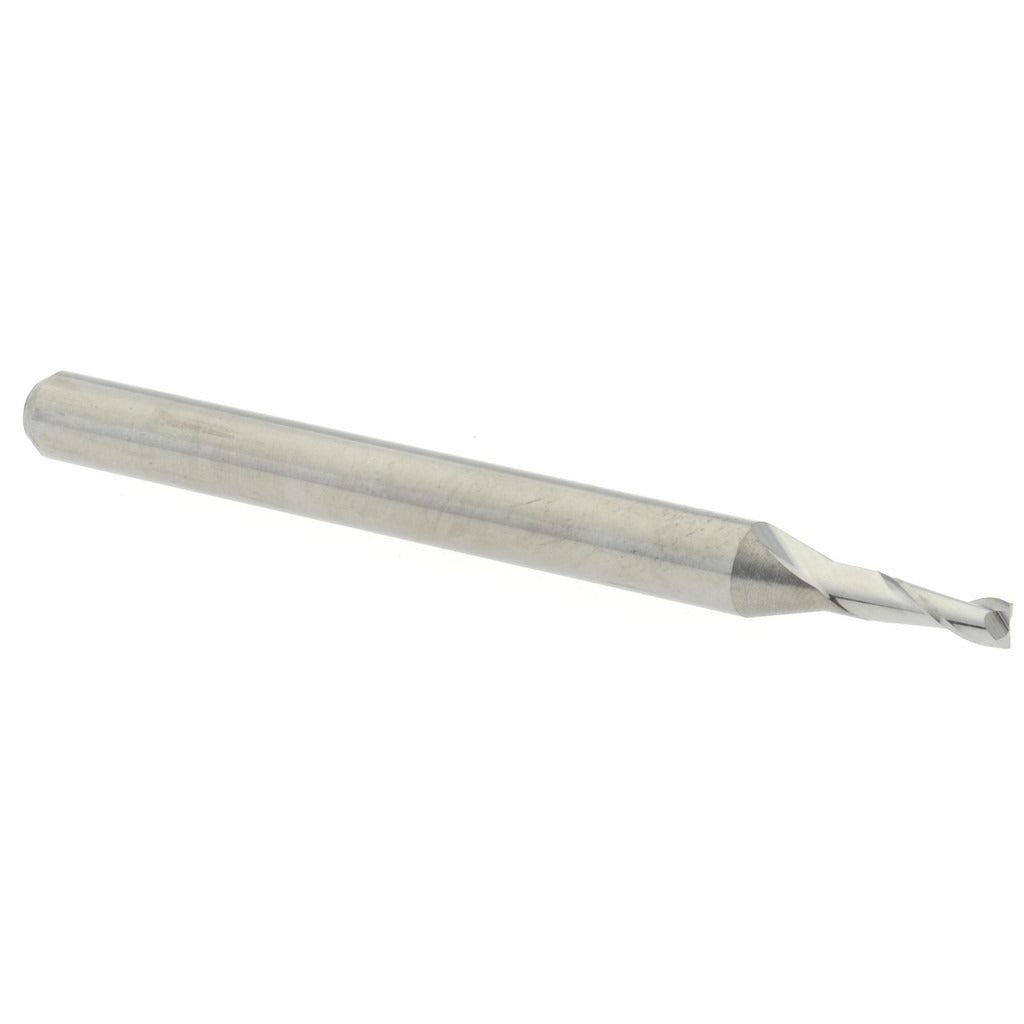

Accupro 14796203 Corner Radius End Mill 1/16 in 2 Flute Carbide

Product Description

The ACCUPRO 14796203 is a miniature solid carbide corner radius end mill designed for precision machining of small features and tight tolerances. With a 1/16 inch (0.0625 inch) cutting diameter and a 0.005 inch corner radius, it produces smooth, radiused edges while reducing stress concentrations at part corners. The single-end, centercutting design allows plunge entry and full slot cutting. Micrograin carbide construction delivers hardness and edge retention suited to demanding cuts in ferrous and non-ferrous materials. Machinists and tool-and-die professionals use this tool in CNC machining centers and manual mills where miniature geometry is required.

This end mill is suited for fine detail work in mold and die machining, medical component manufacturing, electronics fixtures, and other applications that demand small-diameter precision tooling. The bright/uncoated finish makes it a straightforward choice for aluminum, brass, plastics, and similar non-ferrous materials where coating is unnecessary. Its miniature series classification positions it for applications where standard-size end mills cannot reach or where part geometry demands sub-1/8 inch cutting diameters.

Key Features

• 0.0625 inch cutting diameter with 0.005 inch corner radius for precise radiused edge formation
• Micrograin solid carbide construction for superior hardness and wear resistance
• Centercutting design allows direct plunge milling without a pre-drilled pilot hole
• 2-flute geometry provides efficient chip evacuation in small-diameter cuts
• 30-degree right-hand spiral helix for smooth cutting action and reduced chatter
• Bright/uncoated finish suitable for non-ferrous and non-abrasive workpiece materials

Compatibility

Designed as an OEM-style miniature series corner radius end mill compatible with standard 1/8 inch collets and tool holders used in CNC machining centers and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist following shop safety procedures. Ensure the spindle is fully powered down and locked out before changing tooling. Seat the 1/8 inch shank fully and evenly in a clean, undamaged collet or end mill holder and torque to the tool holder manufacturer's specification. Verify runout with a dial indicator before beginning a cut, as excessive runout on miniature-diameter tools accelerates edge wear and increases breakage risk.
