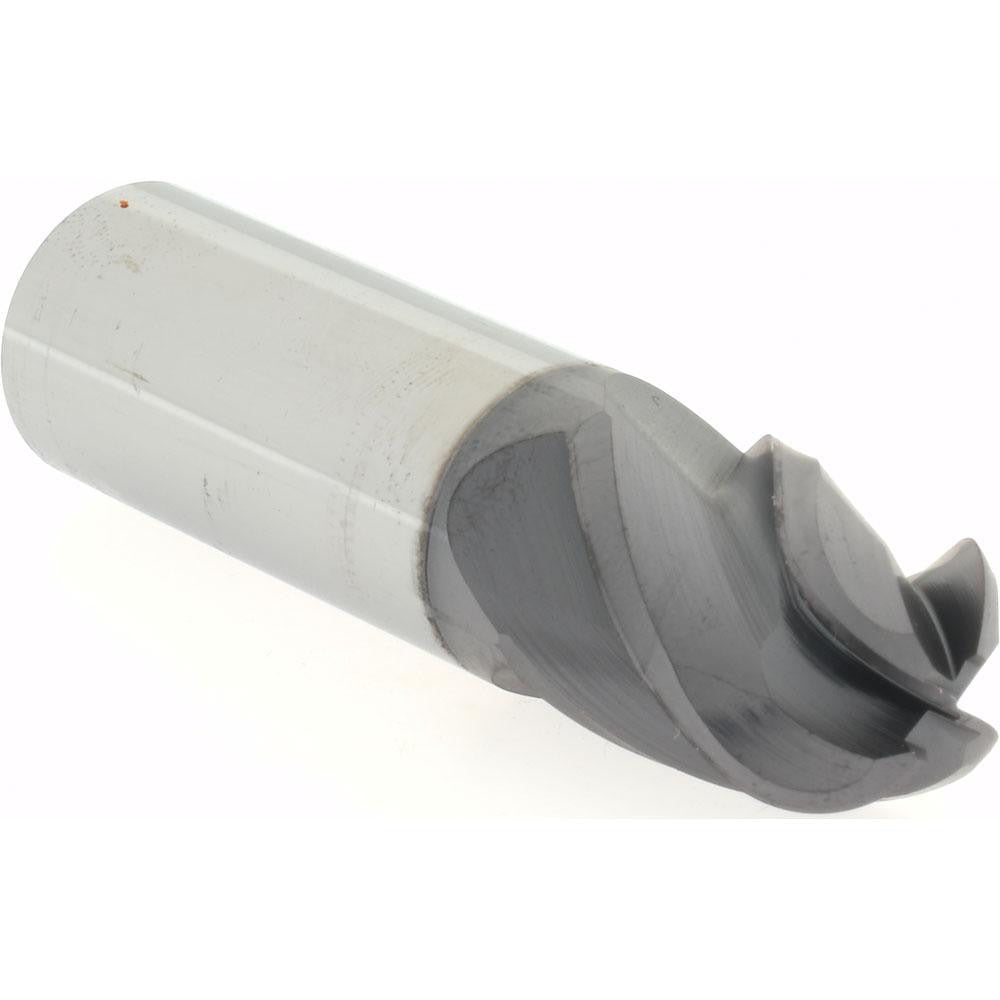

Accupro 14788698 Ball End Mill 0.75 in 4 Flute Carbide

Product Description

The ACCUPRO 14788698 is a solid carbide ball end mill designed for high-performance milling operations in ferrous and non-ferrous materials. Built with four flutes and a medium flute type, it delivers efficient chip evacuation and a smooth finish in profiling, contouring, and slotting applications. The AlTiN+ coating provides elevated heat resistance and extended tool life under high-speed cutting conditions. With a 0.75-inch mill diameter and 1-inch length of cut, this tool handles moderate depth passes with consistent dimensional accuracy. Licensed machinists and CNC operators working in precision machining environments are the primary users of this end mill.

This ball end mill is suited for 3-axis and multi-axis CNC machining centers in both job shop and production environments. The cylindrical shank with a 0.75-inch diameter allows direct chuck or collet mounting without adapters. The AlTiN+ coating makes it particularly effective in dry or minimal-lubrication cutting of alloy steels, stainless steels, and hardened materials. The 3-inch overall length provides adequate reach for most standard cavity and contour milling setups without introducing excessive tool deflection.

Key Features

• Solid carbide construction for rigidity and wear resistance in demanding cuts
• AlTiN+ coating for high-temperature resistance and extended tool life
• 4-flute, medium flute design balances material removal rate with surface finish quality
• Ball end geometry suited for 3D contouring, profiling, and cavity milling
• Cylindrical shank for direct collet or chuck mounting
• No chipbreaker, making it appropriate for finishing and semi-finishing passes

Compatibility

Designed as an OEM-style replacement-grade solid carbide ball end mill for use in standard CNC machining centers and manual mills accepting a 0.75-inch cylindrical shank tool holder.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator following the machine tool manufacturer guidelines for tool clamping torque and runout verification. Always power down and lock out the spindle before changing tooling. Verify tool projection and stick-out against the programmed depth of cut to minimize deflection. Collet and chuck systems should be inspected for wear before seating the shank to ensure concentricity.
