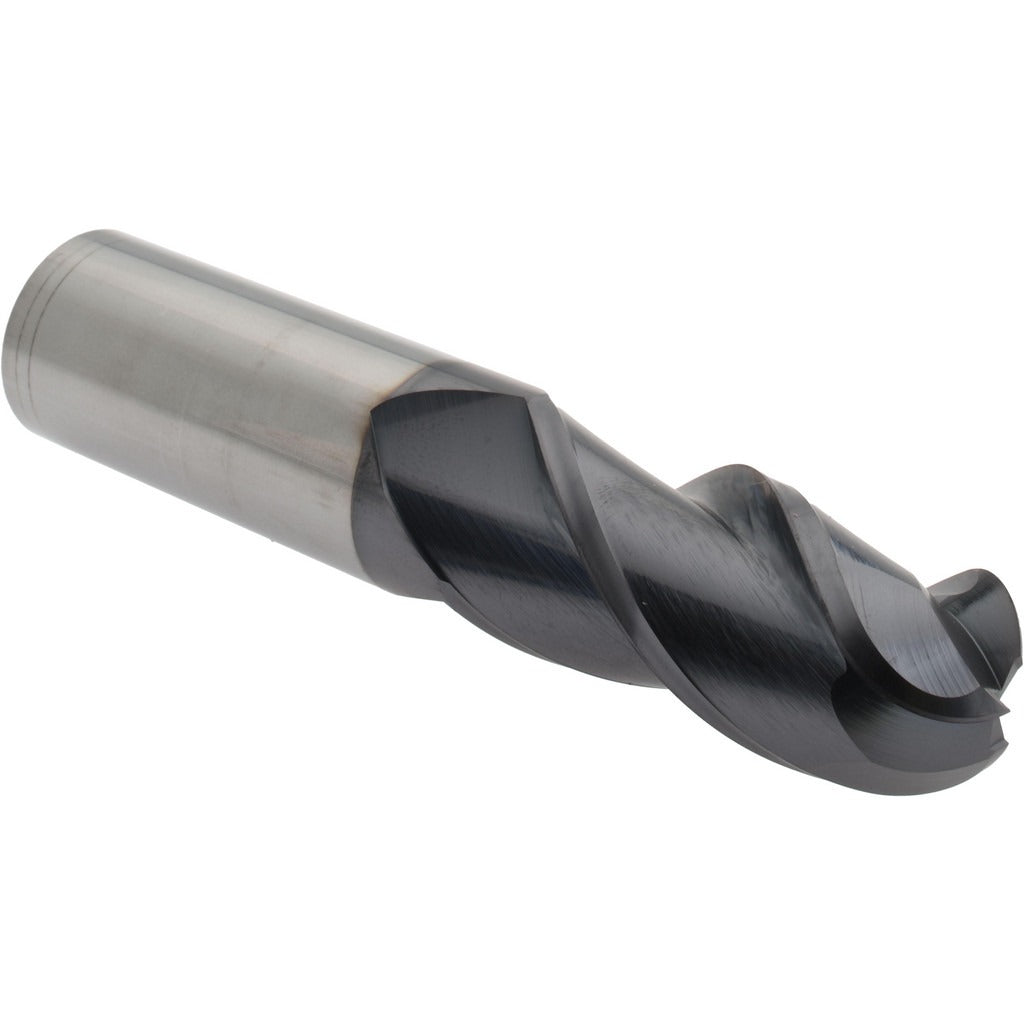

Accupro 14788652 Ball End Mill 1 in 3 Flute Solid Carbide

Product Description

The ACCUPRO 14788652 is a solid carbide ball end mill designed for high-performance milling operations in ferrous and non-ferrous materials. Built with a 1-inch diameter and three medium-helix flutes, it delivers smooth chip evacuation and consistent surface finishes in slotting, profiling, and contouring applications. The AlTiN+ coating provides elevated heat resistance and extended tool life under aggressive cutting conditions. With a 2.25-inch length of cut and a 5-inch overall length, this tool is suited for reaching into deeper pockets and complex geometries where standard-reach tooling falls short.

This ball end mill is used in CNC machining centers for finish and semi-finish milling of molds, dies, and contoured workpiece profiles. The 1-inch cylindrical shank provides a secure grip in standard end mill holders or collet chucks. It is appropriate for use in job shops and production environments handling hardened steels, stainless, and high-temperature alloys where the AlTiN+ coating helps maintain edge integrity at elevated cutting speeds.

Key Features

• 1-inch mill diameter with matching 1-inch cylindrical shank for rigid tool holding
• 2.25-inch length of cut enables deep pocket and contour milling
• Three medium-helix flutes balance chip clearance with cutting edge strength
• AlTiN+ coating provides heat resistance and extended tool life in ferrous and exotic alloys
• Solid carbide construction for precision, rigidity, and wear resistance
• No chipbreaker geometry for smooth finish passes on complex surfaces

Compatibility

Designed as an OEM-style replacement and production-grade solid carbide ball end mill compatible with standard 1-inch end mill holders and collet chucks used on CNC vertical and horizontal machining centers.

Installation Notes

Installation should be performed by a qualified machinist or CNC tool setter. Ensure the machine spindle is fully stopped and the tool changer is locked out before changing tooling. Seat the shank fully and evenly in the holder and torque the retention mechanism to the holder manufacturer specification. Verify runout with a dial indicator before beginning a cut to protect both the tool and the workpiece.
