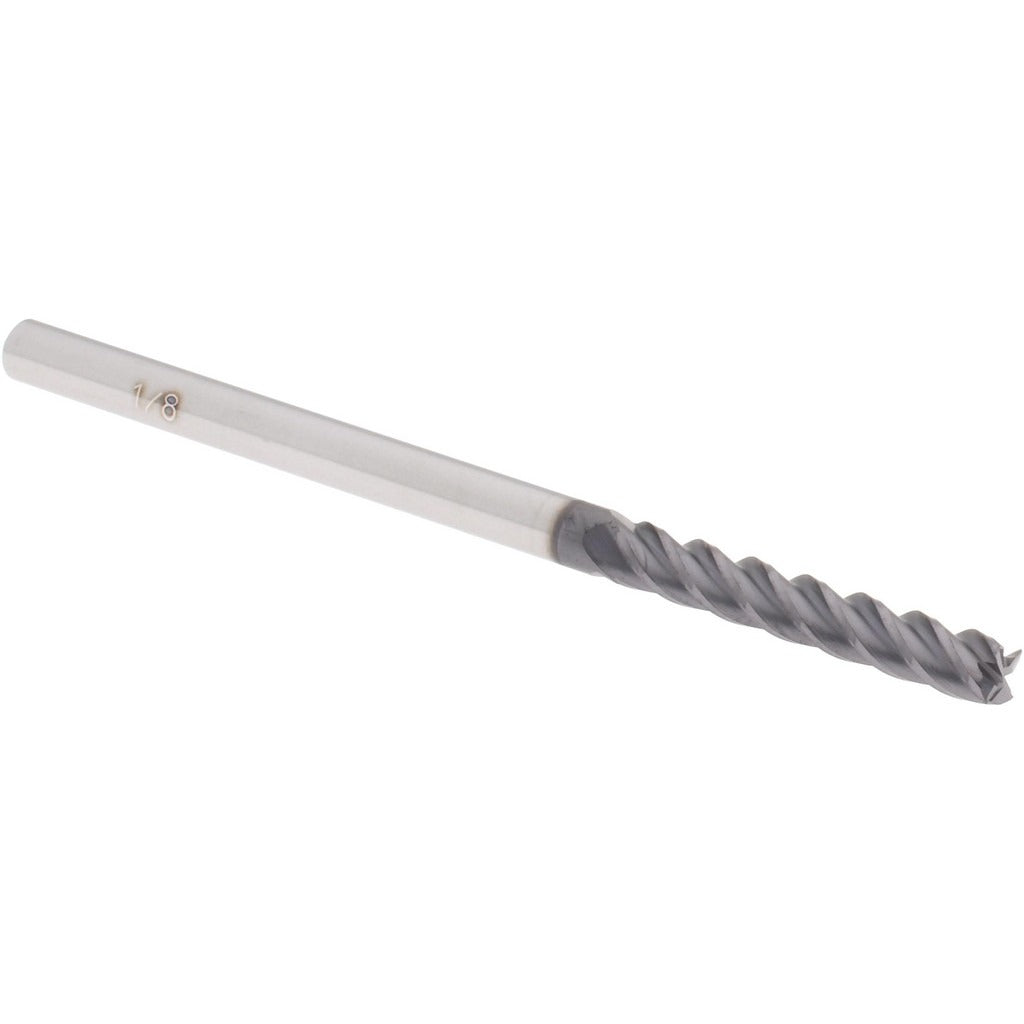

Accupro 14788559 Square End Mill 1/8 Inch 4 Flute Carbide

Product Description

The ACCUPRO 14788559 is a solid carbide square end mill designed for precision milling operations in metalworking and machining environments. With a 1/8 inch (0.125 inch) mill diameter and four helical flutes, it delivers clean, accurate cuts in a compact form factor. The centercutting geometry allows the tool to plunge directly into workpiece material, expanding its usefulness across slotting, profiling, and pocket milling applications. At 2.25 inches overall length with a 0.75 inch length of cut, this end mill is sized for close-tolerance work in tight setups. It weighs 0.02 pounds and is sold individually.

This end mill is suited for use in CNC machining centers, manual knee mills, and similar setups where small-diameter tooling is required. The 1/8 inch cylindrical shank is compatible with standard collets and end mill holders commonly found in production and job shop environments. Applications include finish milling of ferrous and non-ferrous metals, plastics, and composites where a sharp, rigid carbide cutting edge is needed. Machinists and CNC operators handling detailed or fine-feature work will find the four-flute helical geometry well matched to these tasks.

Key Features

• Solid carbide construction for rigidity and wear resistance in demanding cuts
• Four helical flutes for efficient chip evacuation and smooth surface finish
• Centercutting design allows direct plunge entry into workpiece material
• 1/8 inch mill diameter and 0.75 inch length of cut for fine-detail machining
• Cylindrical shank for straightforward mounting in standard collet systems
• Compact overall length of 2.25 inches keeps tool deflection to a minimum

Compatibility

Designed as an OEM-style replacement or standard tooling option for CNC machining centers and manual mills accepting 1/8 inch cylindrical shank end mills with standard collet or end mill holder tooling systems.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the spindle is fully stopped and machine power is locked out before changing tooling. Seat the shank fully into the collet or holder and torque to the tool holder manufacturer's specification. Verify runout with a dial indicator before beginning production cuts.
