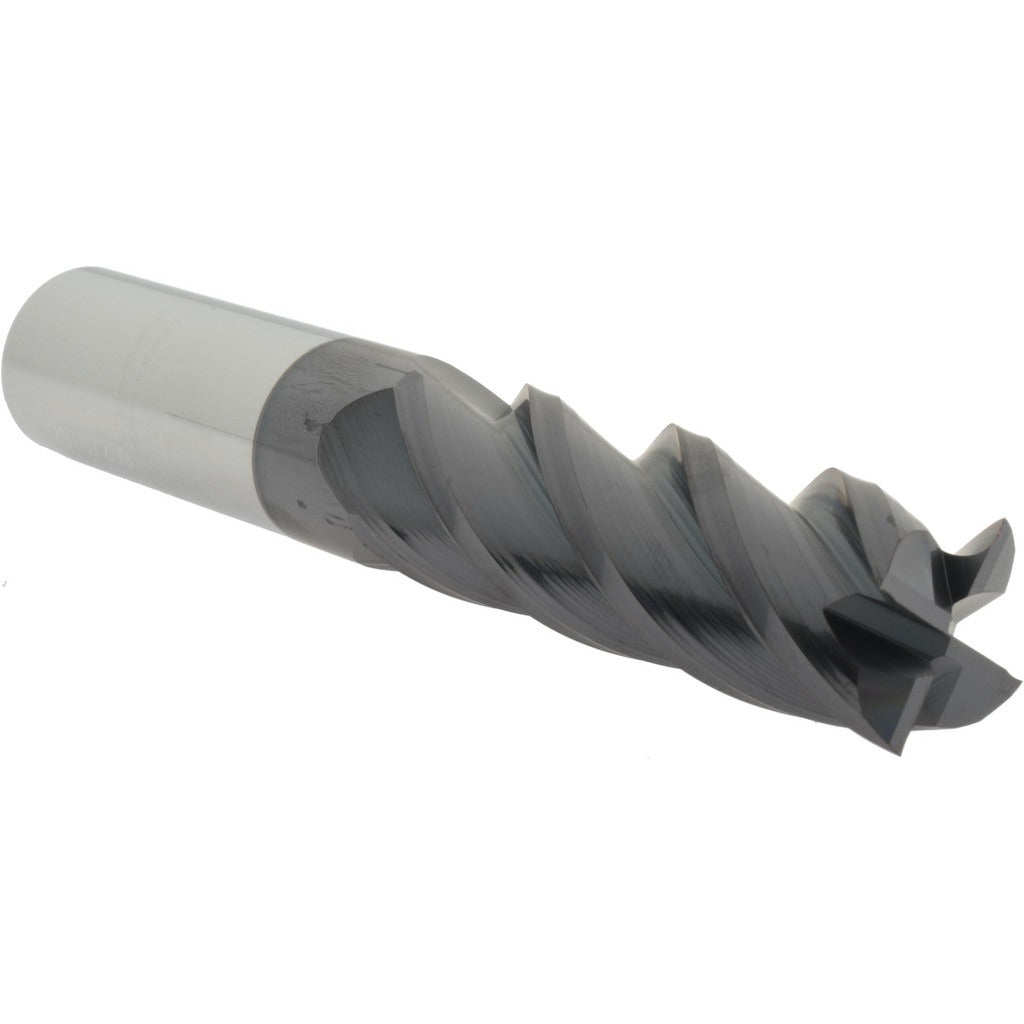

Accupro 14788549 Square End Mill 1 in 4 Flute Solid Carbide

Product Description

The ACCUPRO 14788549 is a solid carbide square end mill designed for precision milling operations in metal fabrication and machining environments. Built with 4 helical flutes and a 1.0000 inch mill diameter, this centercutting tool can plunge directly into workpiece material, expanding its range of applications beyond standard peripheral milling. The cylindrical shank measures 1.0000 inch in diameter, and the overall length is 6 inches, with a 3.0000 inch length of cut. Solid carbide construction provides hardness and wear resistance suited to demanding cutting conditions. Installation and use require a CNC machining center, vertical mill, or comparable machine tool with a proper collet or tool holder.

This end mill is intended for use in professional machine shop environments, tool rooms, and production machining operations. The centercutting geometry allows for slot milling, plunge cutting, and profiling work. The 4-flute configuration balances chip evacuation with surface finish quality, making it appropriate for finish passes and semi-finish passes on ferrous and non-ferrous materials. Extended reach is not featured on this tool, so it is best suited for standard-depth applications within the 3.0000 inch length of cut.

Key Features

• 1.0000 inch mill diameter and 1.0000 inch cylindrical shank diameter for secure tool holding
• 4 helical flutes for balanced cutting performance and surface finish
• Centercutting design enables direct plunge entry into the workpiece
• 3.0000 inch length of cut supports moderate-depth slotting and profiling
• Solid carbide construction for hardness and dimensional stability under load
• No chipbreaker geometry, suited for consistent chip formation in standard applications

Compatibility

Designed as an OEM-style replacement or direct-use solid carbide square end mill for standard CNC and manual milling machines accepting a 1 inch cylindrical shank tool holder or collet.

Installation Notes

A licensed machinist or qualified CNC operator should install and qualify this tool. Power down the machine and confirm a zero-energy state before changing tooling. Use a calibrated torque wrench and appropriate collet or end mill holder rated for the shank diameter. Verify runout with a dial indicator after seating the tool before beginning any cut cycle.
