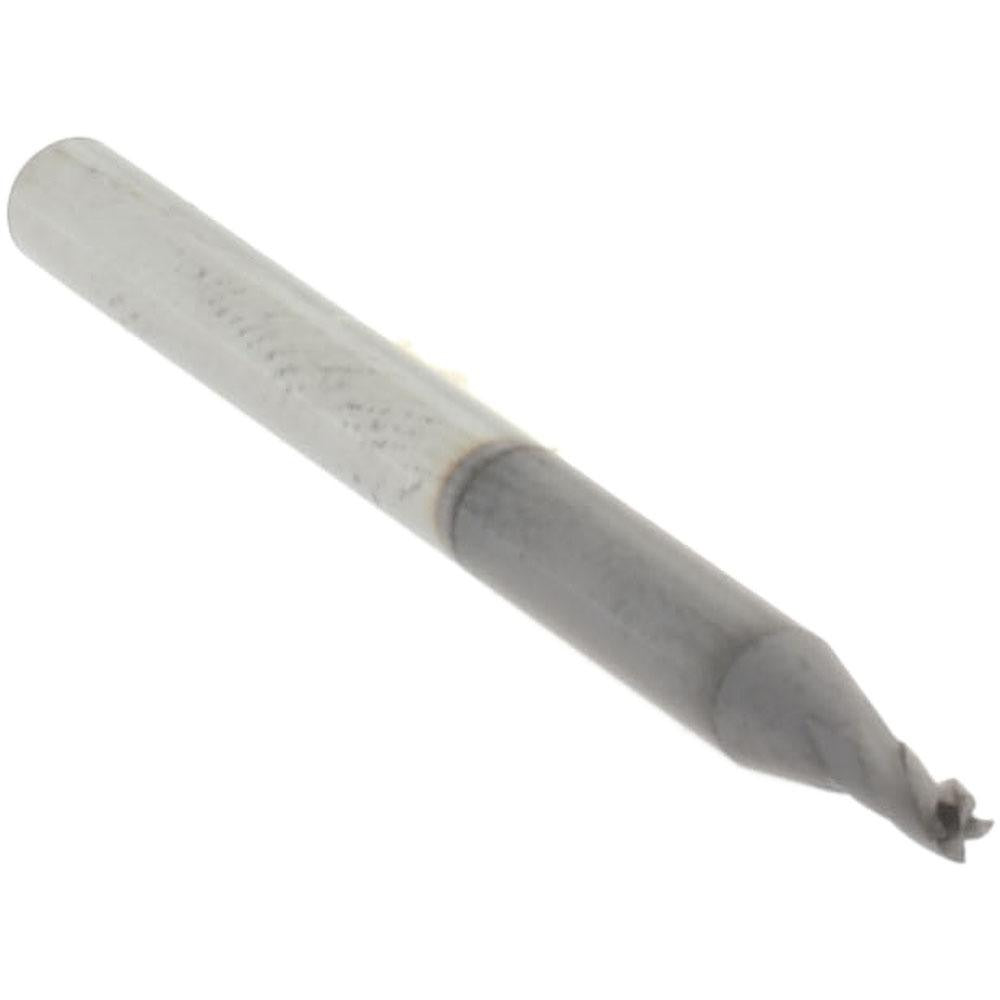

Accupro 14788504 Square End Mill 4 Flute 1.50mm Carbide

Product Description

The ACCUPRO 14788504 is a solid carbide square end mill designed for precision milling operations in metalworking and machining applications. With a 1.50 mm cutting diameter, four helical flutes, and a 3.00 mm length of cut, this end mill delivers clean, accurate cuts in a compact form factor. The centercutting geometry allows the tool to plunge directly into the workpiece in addition to conventional peripheral milling. At 0.02 pounds, it is suited for CNC machining centers and manual mills where small-diameter tooling is required. Machinists and tooling specialists working on close-tolerance parts will find this a reliable production-grade option.

This end mill is used in precision machining environments where small-diameter cutting tools are needed, including mold and die work, micro-component manufacturing, and finish milling of tight features. The 3.000 mm cylindrical shank fits standard collet systems and tool holders sized for that shank diameter. With an overall length of 38.00 mm, the tool provides adequate reach for typical shallow-to-moderate depth applications without sacrificing rigidity. It is appropriate for use in both production shops and toolroom settings handling ferrous and non-ferrous materials.

Key Features

• 1.50 mm cutting diameter for small-feature and detail milling
• Four helical flutes for efficient chip evacuation and smooth finish
• Centercutting design allows direct plunge entry into the workpiece
• Solid carbide construction for rigidity and wear resistance
• 3.000 mm cylindrical shank for compatibility with standard collet holders
• 38.00 mm overall length balances reach and tool stiffness

Compatibility

Designed as an OEM-style replacement or direct-use solid carbide square end mill for CNC machining centers and manual milling machines equipped with collet systems accepting a 3.000 mm cylindrical shank.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the spindle is fully stopped and the machine is in a safe, locked-out state before changing tooling. Seat the shank fully into the collet or tool holder and torque the retention system according to the machine manufacturer's specifications. Inspect the cutting edges for chips or damage before each use and replace the tool if any defects are observed.
