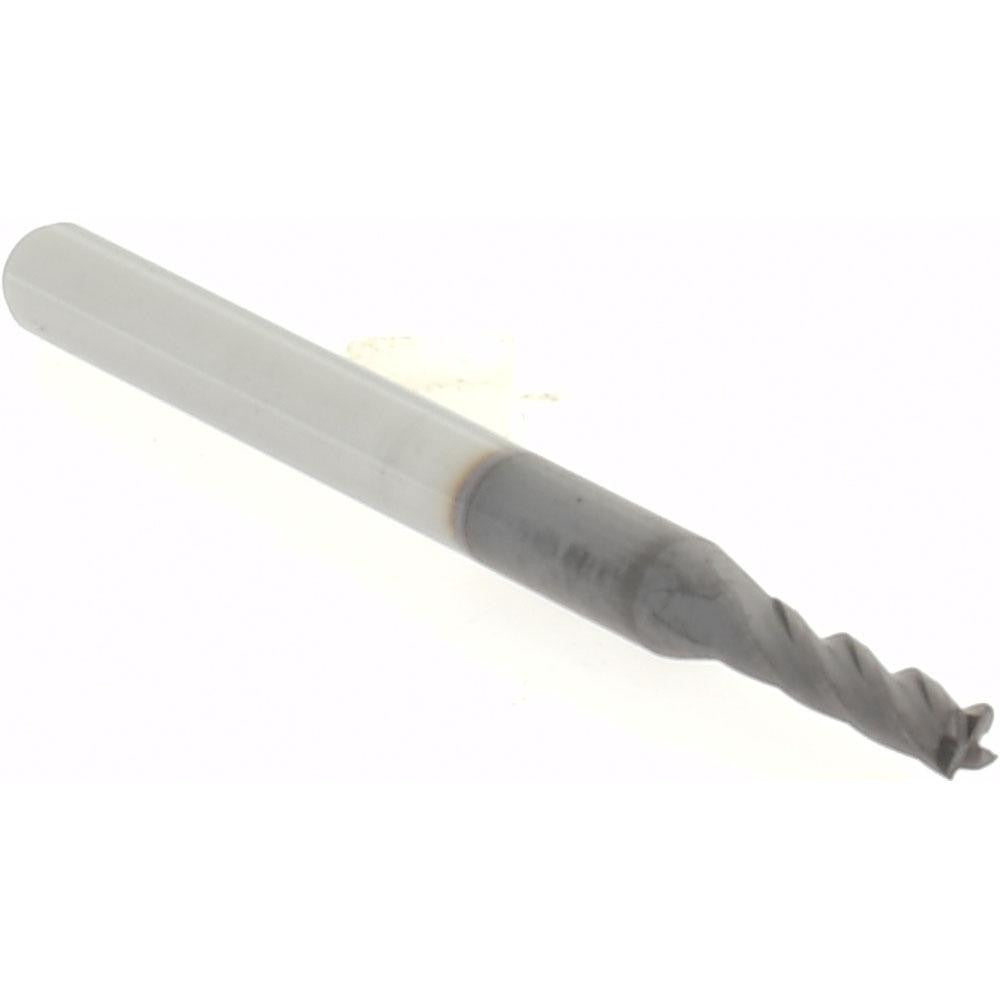

Accupro 14788459 Square End Mill 4 Flute 2mm Carbide

Product Description

The ACCUPRO 14788459 is a solid carbide square end mill designed for precision milling operations in metalworking and machining applications. With a 2.00 mm mill diameter and a 4-flute helical geometry, this end mill delivers clean, accurate cuts in ferrous and non-ferrous materials. The centercutting design allows for plunge milling as well as conventional peripheral cuts. At 38.00 mm overall length with an 8.00 mm length of cut, it is sized for tight-tolerance finish work and slotting operations on CNC machining centers and manual mills. A cylindrical shank of 3.000 mm diameter ensures secure tool holding in standard collets and chucks. This tool is used by machinists, tool-and-die makers, and CNC operators working on precision components.

This end mill is suited for small-diameter milling tasks including slotting, profiling, and light plunge cuts in metals and engineering plastics. The compact 2.00 mm diameter makes it appropriate for detailed work, mold work, and intricate part geometries where larger tools cannot reach. The helical flute configuration promotes chip evacuation and reduces cutting forces, making it effective in both dry and wet cutting conditions on vertical machining centers and CNC routers.

Key Features

• Solid carbide construction for rigidity and wear resistance in demanding cuts
• 4 helical flutes for efficient chip evacuation and improved surface finish
• Centercutting design enables plunge milling capability
• 2.00 mm mill diameter suited for fine-detail and small-feature machining
• Cylindrical shank compatible with standard collet toolholders
• No chipbreaker geometry keeps cutting edge simple for general-purpose use

Compatibility

Designed as an OEM-style replacement solid carbide square end mill for use in standard collet or chuck toolholding systems accepting a 3.000 mm cylindrical shank diameter.

Installation Notes

Installation should be performed by a qualified machinist following shop safety procedures. Ensure the spindle is fully stopped and the machine is powered down before changing tooling. Seat the shank fully into the collet or chuck and torque the toolholder according to the toolholder manufacturer guidelines, not the end mill specifications. Inspect the cutting edge for chips or damage before use and confirm runout is within acceptable tolerances for the application.
