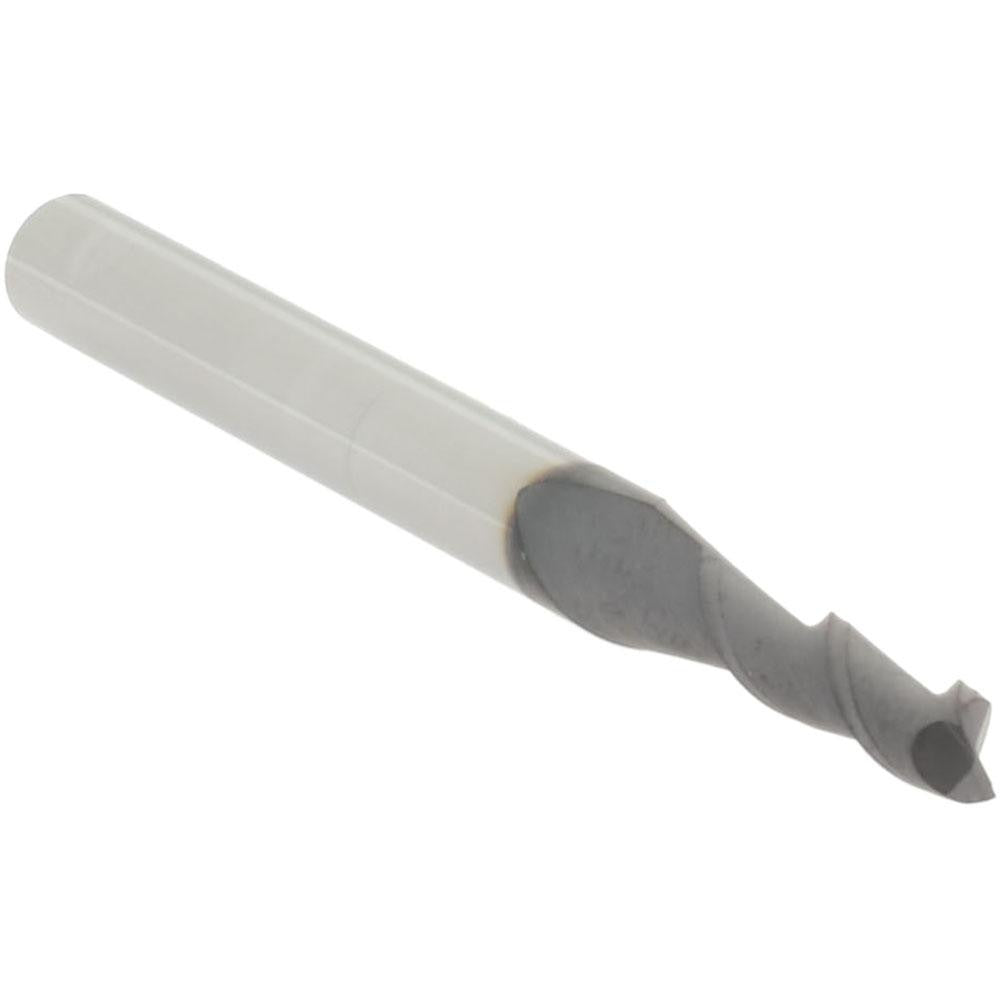

Accupro 14788328 Square End Mill 2 Flute Solid Carbide

Product Description

The ACCUPRO 14788328 is a 2-flute solid carbide square end mill designed for precision milling operations in metalworking and machining applications. With a mill diameter of 0.1410 inches (9/64 inch) and a 3/16 inch cylindrical shank, this end mill delivers consistent performance in tight-tolerance work. The helical flute geometry promotes efficient chip evacuation, and the centercutting design allows for direct plunge entry into workpiece material. Overall length is 2 inches with a 0.5000 inch length of cut. Solid carbide construction provides the rigidity and wear resistance required for small-diameter work on ferrous and non-ferrous materials.

This end mill is suited for light finishing passes, slot milling, and profiling operations where small cutter diameters are required. It is commonly used in job shops, tool rooms, and production machining environments on CNC machining centers and manual knee mills. The small diameter makes it particularly useful for detail work, narrow slots, and fine-feature geometry on dies, molds, and precision components. A licensed machinist or CNC operator typically selects this tool for applications requiring close dimensional control in confined areas.

Key Features

• Centercutting design allows direct plunge cutting without pre-drilling
• Helical flute geometry promotes chip flow and reduces heat buildup
• Solid carbide construction for rigidity and wear resistance at small diameters
• Cylindrical shank provides consistent grip in standard collet chucks and end mill holders
• No chipbreaker geometry for clean, consistent edge finish on precision cuts

Compatibility

Designed as an OEM-style solid carbide square end mill compatible with standard 3/16 inch collet chucks, end mill holders, and milling machine spindles accepting cylindrical shank tooling.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the machine spindle is fully stopped and locked out before inserting or removing the end mill from the holder. Verify collet size matches the 3/16 inch shank diameter and that the tool is seated to the correct gage length before tightening. Follow shop-standard runout inspection procedures after tool setup to confirm concentricity before cutting.
