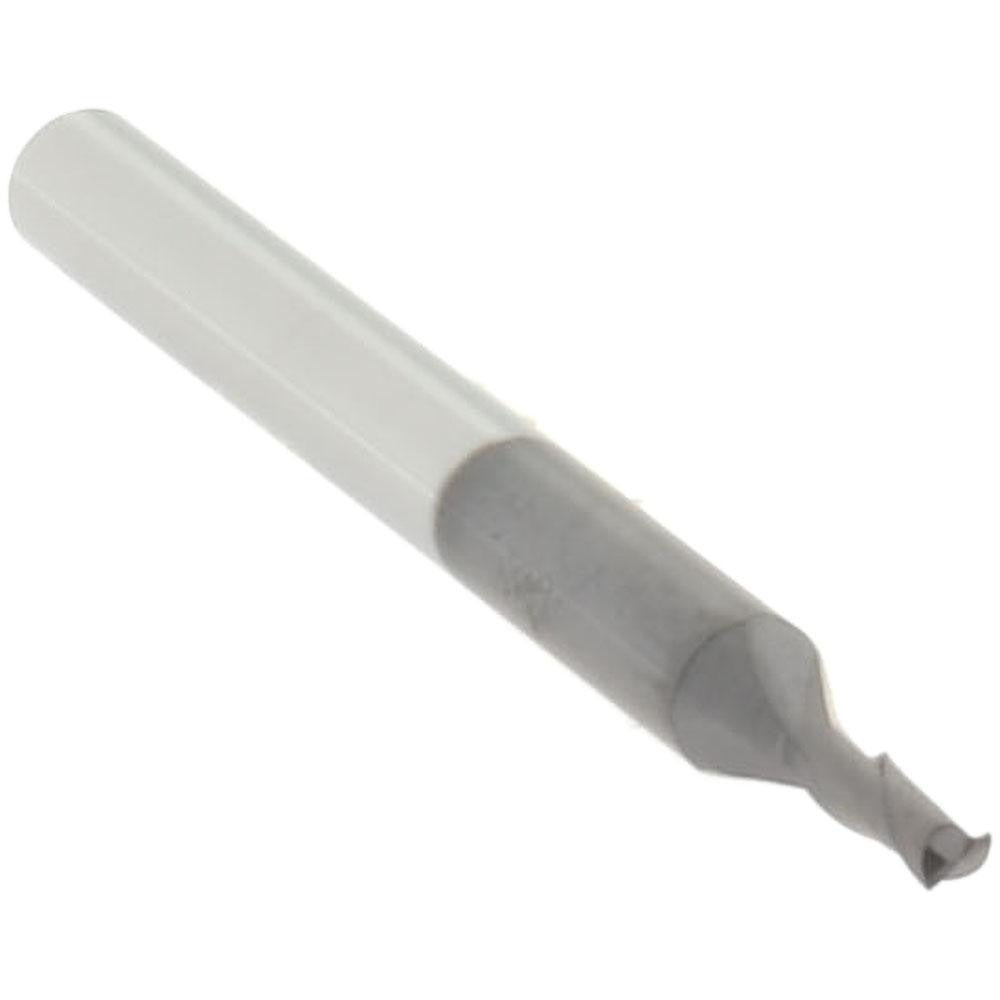

Accupro 14788323 Square End Mill 1/16 Inch 2 Flute Carbide

Product Description

The ACCUPRO 14788323 is a solid carbide square end mill designed for precision milling operations in metalworking and machining applications. With a 1/16 inch (0.0630 inch) mill diameter and 2 helical flutes, this centercutting end mill is built for slot milling, plunge cutting, and profile work in tight-tolerance environments. The solid carbide construction provides hardness and wear resistance suitable for ferrous and non-ferrous materials. The overall length is 1-1/2 inches with a length of cut of 3/16 inch. This tool is typically installed and operated by machinists and CNC tooling professionals working with milling machines, machining centers, or manual knee mills.

This end mill is well suited for small-feature milling tasks in production and job shop environments. The 1/8 inch cylindrical shank fits standard collets and tool holders used in vertical machining centers and manual mills. The centercutting geometry allows direct plunge entry into the workpiece without a pre-drilled pilot hole, making it practical for pocket milling, contour work, and die-and-mold operations requiring fine detail at small diameters.

Key Features

• Solid carbide construction for hardness and extended tool life
• Centercutting design enables direct plunge milling without a pilot hole
• 2 helical flutes for efficient chip evacuation in small-diameter cuts
• 1/16 inch mill diameter for fine-detail and small-feature work
• Cylindrical 1/8 inch shank fits standard collets and tool holders
• No chipbreaker and no extended reach — optimized for short, rigid setups

Compatibility

Designed as an OEM-style replacement solid carbide square end mill for use with standard 1/8 inch collets and tool holders on vertical milling machines and CNC machining centers.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Always power down and lock out the spindle before changing tooling. Seat the shank fully into the collet or tool holder and torque the retention hardware according to the machine manufacturer's specifications. Inspect the cutting edges for chips or damage before mounting and do not exceed the rated speed and feed parameters for the workpiece material.
