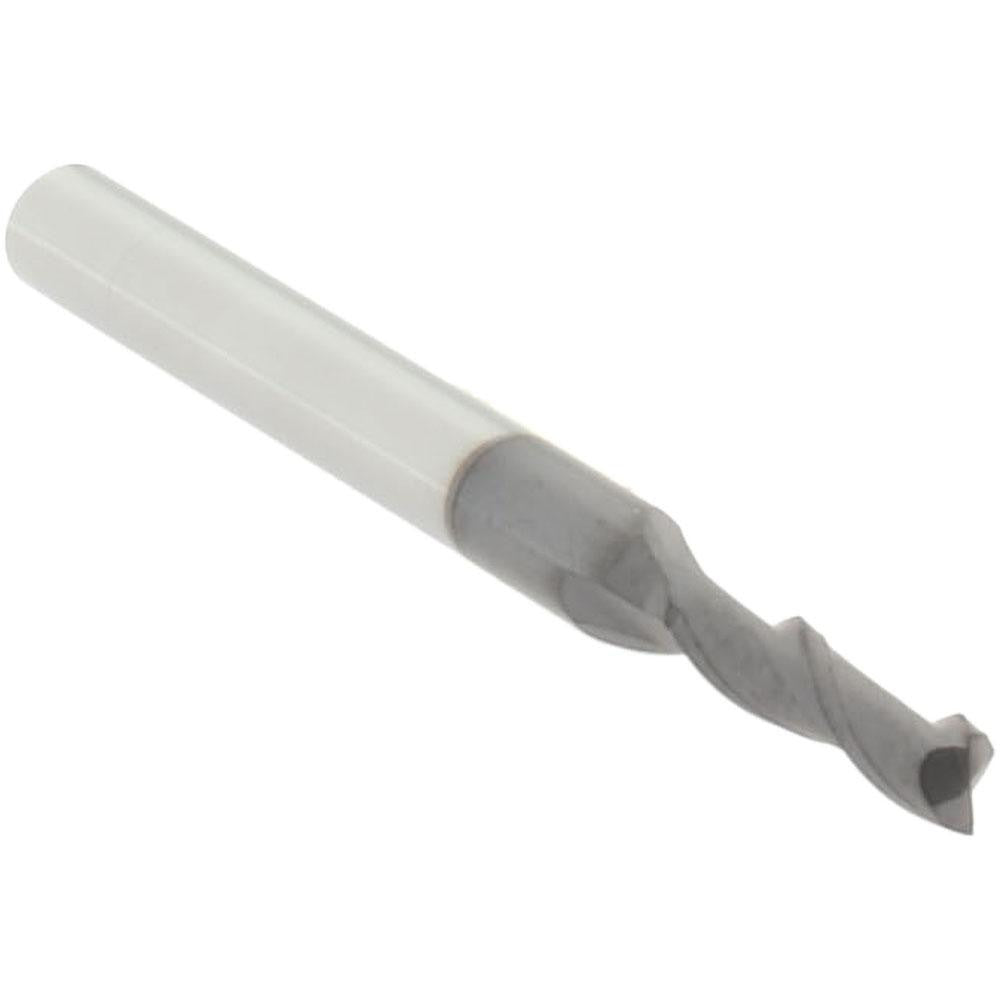

Accupro 14788305 Square End Mill 2 Flute Solid Carbide

Product Description

The ACCUPRO 14788305 is a solid carbide square end mill designed for precision milling operations in metalworking and machining applications. With a 3/32 inch (0.0940 inch) mill diameter and two helical flutes, this end mill delivers clean, accurate cuts in ferrous and non-ferrous materials. The centercutting geometry allows it to plunge directly into workpiece material as well as perform standard peripheral and slot milling. The cylindrical shank measures 1/8 inch (0.1250 inch) in diameter, and overall tool length is 1-1/2 inches. Solid carbide construction provides rigidity and wear resistance compared to high-speed steel alternatives, making it suitable for higher feed rates and harder materials.

This end mill is used in CNC machining centers, manual knee mills, and benchtop milling machines for light profiling, slotting, and contouring cuts. Its 3/8 inch length of cut and compact overall length make it well suited to close-tolerance work in small-scale components, tool and die work, mold making, and prototype machining. The two-flute configuration provides good chip clearance in softer materials and aluminum alloys. Professional machinists and toolroom operators are the primary users of this tool class.

Key Features

• Centercutting design allows direct plunge entry into workpiece material
• Solid carbide construction for rigidity, heat resistance, and extended tool life
• Two helical flutes provide efficient chip evacuation during cutting
• 3/32 inch mill diameter with 3/8 inch length of cut for precise, small-diameter work
• Cylindrical 1/8 inch shank fits standard collets and end mill holders
• Non-chipbreaker, non-extended-reach geometry for straightforward profiling and slotting

Compatibility

Designed as an OEM-style replacement or standard tooling option for milling machines accepting a 1/8 inch cylindrical shank end mill holder or collet.

Installation Notes

Installation and tool changes must be performed with the machine fully powered down and the spindle at a complete stop. Secure the cylindrical shank in a properly sized collet or end mill holder and torque the retaining nut or set screw according to the machine manufacturer specifications. Inspect the shank and collet bore for chips or debris before seating the tool. Solid carbide tooling is brittle and should not be dropped or subjected to lateral impact during handling or storage.
