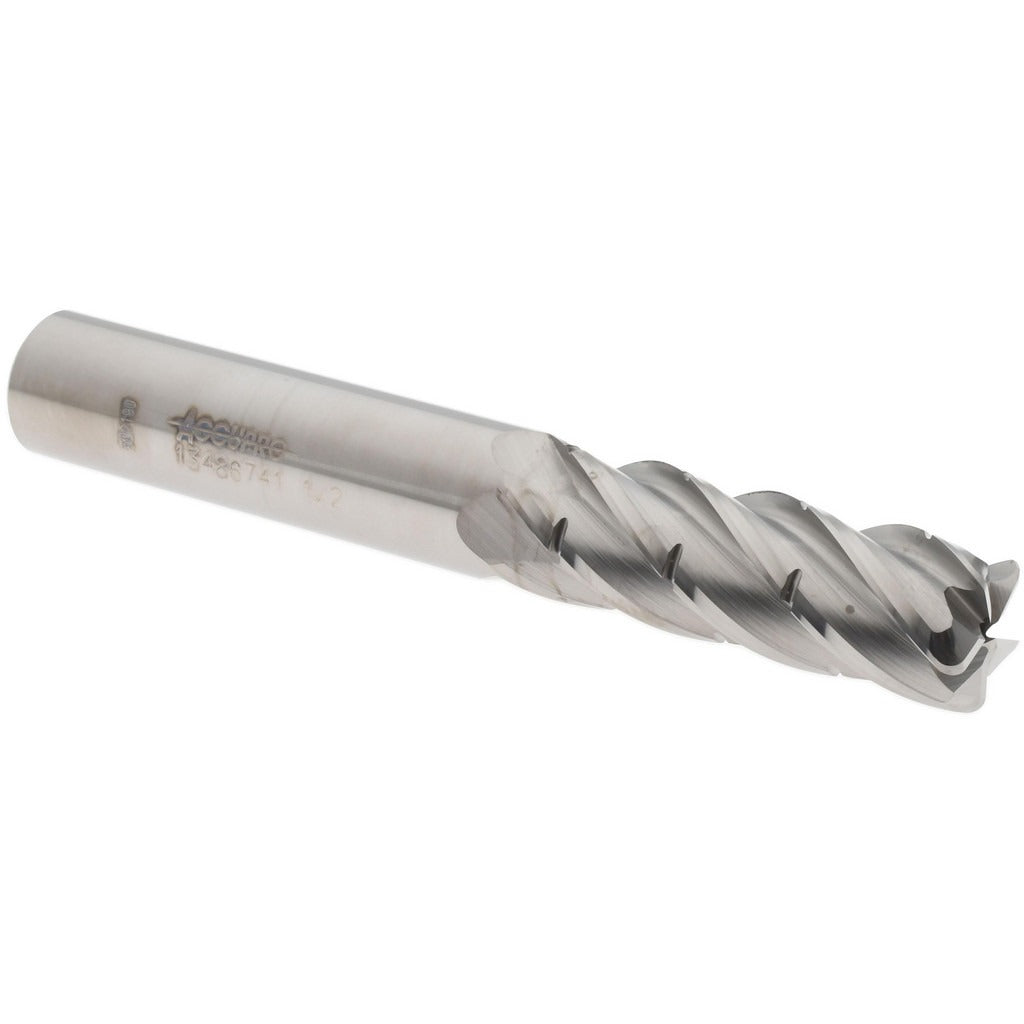

Accupro 14735165 Corner Radius End Mill 1/2 in 5 Flute Carbide

Product Description

The ACCUPRO 14735165 is a solid carbide corner radius end mill designed for high-performance material removal in aluminum and similar non-ferrous applications. It features a 1/2 inch mill diameter, a 1-1/2 inch length of cut, and a 0.06 inch corner radius that reduces stress concentration at the cutting edge. With 5 flutes, a right-hand cutting direction, and a 36-degree helix angle, this tool is built to deliver efficient chip evacuation and smooth surface finishes. The AL-5 series designation and micrograin carbide substrate make it well-suited for demanding machining environments. It ships as a single-end tool with a straight-cylindrical shank and a bright, uncoated finish.

This end mill is intended for use in CNC machining centers and manual milling machines where aluminum is the primary workpiece material. The AL-5 series is optimized for aluminum applications, and the chipbreaker geometry along with coolant-through capability supports high-speed, high-volume cuts. Variable index flute spacing helps reduce chatter during long cuts. It is a standard-length tool suited for general-purpose profiling, slotting, and contouring operations. Machinists and tool and die professionals working in job shops, aerospace component fabrication, or production machining environments are the typical end users.

Key Features

• Solid carbide micrograin substrate for wear resistance and edge retention
• 0.06 inch corner radius reduces edge chipping and improves surface finish
• 5-flute, right-hand spiral design with variable index for chatter reduction
• Chipbreaker geometry aids chip evacuation in deep-cavity cuts
• Coolant-through capable for heat management at high feed rates
• Bright, uncoated finish appropriate for aluminum and non-ferrous materials

Compatibility

Designed for use in aluminum machining applications as part of the ACCUPRO AL-5 series. Fits standard straight-cylindrical shank tool holders accepting a 1/2 inch shank diameter. Not designed for center-cutting operations.

Installation Notes

Installation should be performed by a qualified machinist following the tool holder manufacturer specifications for runout and clamping torque. Verify shank diameter tolerance compliance before seating in the collet or end mill holder. Ensure the machine spindle is fully stopped and locked out before changing tooling. Do not use this tool on ferrous materials or hardened steels, as the AL-5 series and uncoated carbide substrate are optimized for non-ferrous workpieces.
