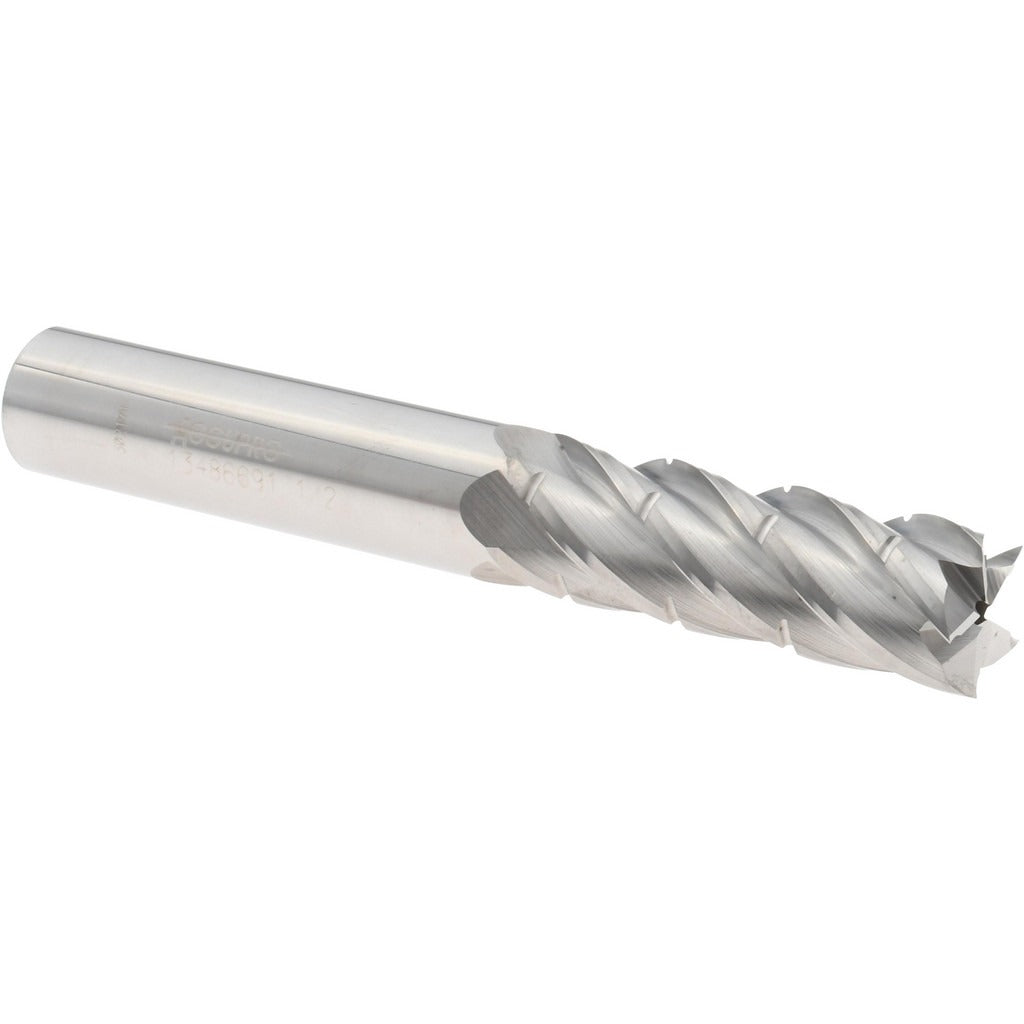

Accupro 14735162 Square End Mill 5 Flute Solid Carbide

Product Description

The ACCUPRO 14735162 is a solid carbide square end mill designed for high-performance milling of metals, composites, and other demanding materials. With a 0.5 inch cutting diameter, five flutes, and a 36-degree helix angle, this tool delivers efficient chip evacuation and smooth cutting action in a wide range of milling applications. The micrograin carbide substrate provides superior hardness and wear resistance compared to standard carbide grades. A variable index geometry reduces chatter and vibration during aggressive cuts. The chipbreaker feature helps manage chip formation in deep pocketing and slotting operations where chip control is critical.

This end mill is suited for production machining environments, job shops, and toolroom work where tight tolerances and consistent tool life are required. The 1.5 inch length of cut and 3.5 inch overall length make it appropriate for moderate-depth pocketing, contouring, and slotting operations. The bright, uncoated finish means it can be run as-is or used as a base for secondary coating if required by the application. Right-hand cutting and right-hand spiral flute direction are standard for conventional machining center spindles.

Key Features

• 5-flute design with variable index geometry reduces vibration and chatter during cut
• Chipbreaker geometry aids chip management in slotting and deep pocket milling
• 36-degree helix angle promotes smooth cutting action and efficient chip evacuation
• Micrograin carbide substrate for improved edge strength and wear resistance
• Bright, uncoated finish suitable for use across a broad range of workpiece materials
• Straight-cylindrical shank for direct collet or end mill holder mounting

Compatibility

Designed as a direct-fit replacement or new-install solid carbide square end mill for any machining center or milling machine equipped with a standard 0.5 inch collet, ER collet chuck, or end mill holder accepting a straight-cylindrical shank.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the spindle is fully stopped and the machine is in a safe, locked-out state before changing tooling. The shank should be cleaned and seated to the minimum recommended engagement depth in the holder before tightening. Verify runout with a dial indicator after tool installation to confirm proper seating and avoid premature tool wear.
