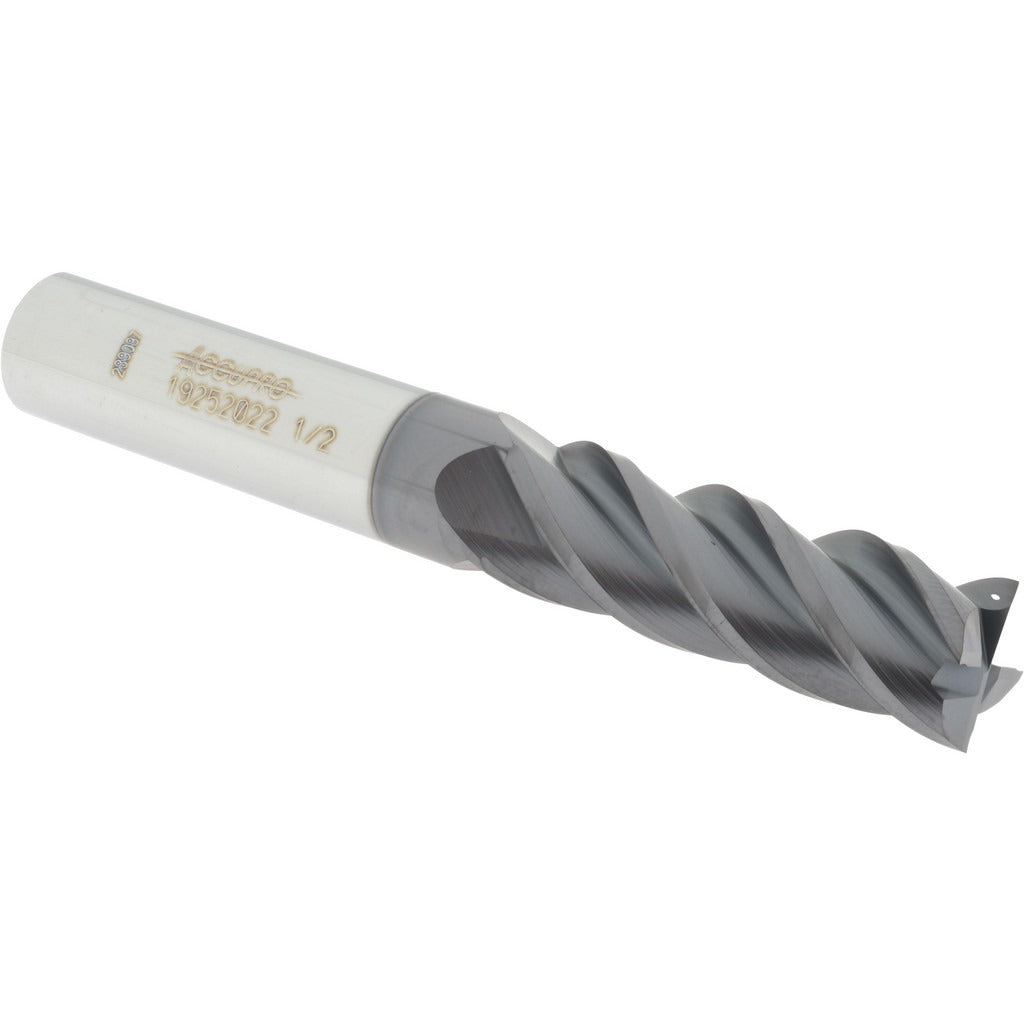

Accupro 14505815 Square End Mill 0.5 in 4 Flute Solid Carbide

Product Description

The ACCUPRO 14505815 is a solid carbide square end mill designed for precision material removal in ferrous and non-ferrous machining applications. It features a 0.5 inch cutting diameter, a 1.5 inch length of cut, and a 3.5 inch overall length with a 0.5 inch straight cylindrical shank. The four-flute spiral design runs a 40-degree helix angle for aggressive chip evacuation and smooth cutting action. The AlTiN plus coating provides thermal resistance and extended tool life in high-speed and dry machining conditions. Micrograin carbide substrate adds toughness and edge retention. This end mill is centercutting, allowing plunge entry without a pre-drilled hole.

This end mill is suited for milling operations requiring an extra-long length of cut in the 1.5 to 2.0 inch range. It is used in vertical and horizontal machining centers for slotting, profiling, and pocket milling. Right-hand cut and right-hand flute geometry make it compatible with standard spindle rotation. The AlTiN plus finish performs well in elevated-temperature environments, making it a practical choice for alloy steels, stainless, and titanium when paired with appropriate feeds and speeds. Machinists and CNC operators working in job shop and production environments are the primary users.

Key Features

• Solid micrograin carbide construction for edge retention and rigidity
• AlTiN plus coating for thermal resistance in dry or high-speed cutting
• 40-degree helix angle promotes efficient chip flow and reduced cutting forces
• Centercutting design allows direct plunge entry
• Right-hand cut and right-hand flute for use with standard spindle direction
• Extra-long length type with length of cut range from 1.5 to 2.0 inches

Compatibility

Designed for use in standard 0.5 inch collets, end mill holders, or hydraulic chucks on vertical and horizontal machining centers. Part of ACCUPRO Series 6/44.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the spindle is fully stopped and the machine is in a safe state before changing tooling. Seat the shank fully into the holder and torque the retention mechanism to the tool holder specification. Verify runout with a dial indicator before beginning a cut to protect both the tool and the workpiece.
