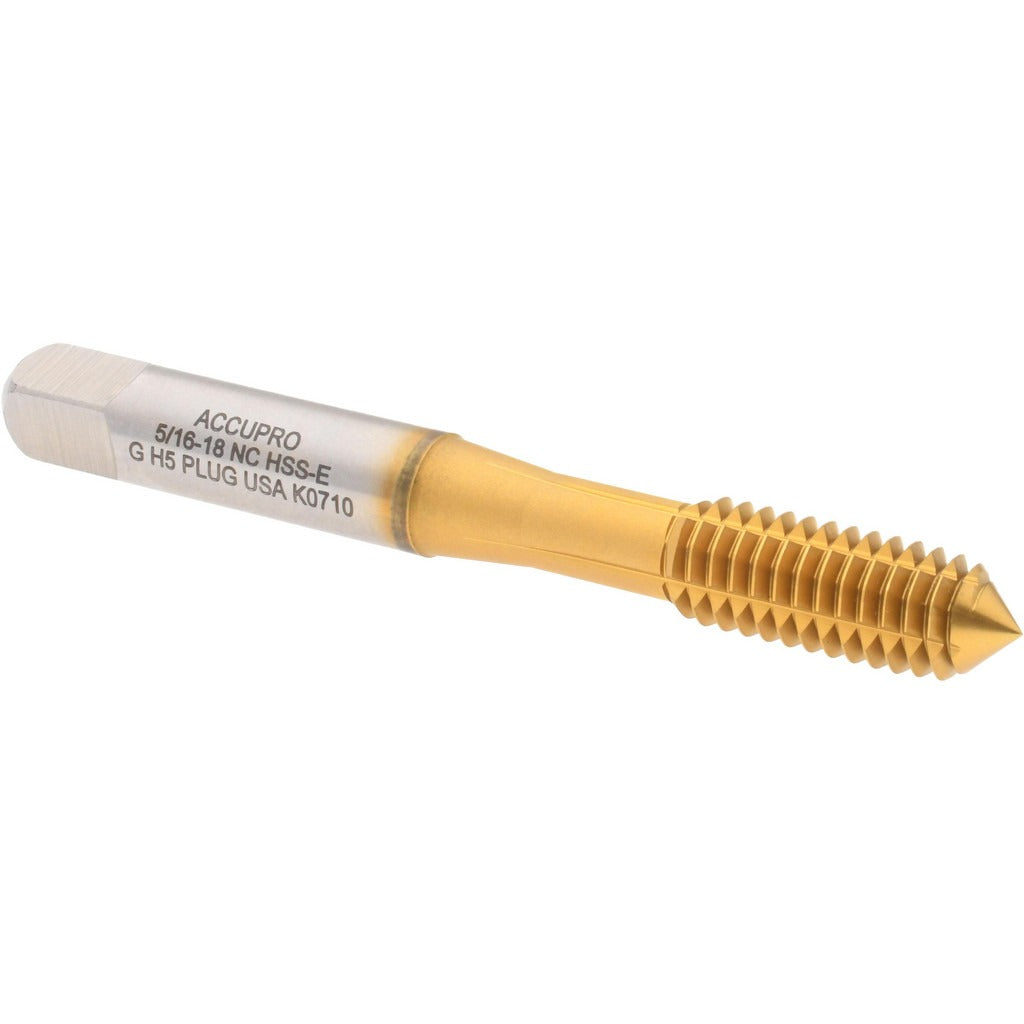

Accupro 13105-00T Thread Forming Tap 5/16-18 Unc Plug Tin

Product Description

The ACCUPRO 13105-00T is a thread forming tap designed for cutting 5/16-18 UNC internal threads in through-hole applications. Unlike cutting taps, thread forming taps displace material rather than remove it, producing stronger threads with no chips to clear. This tap is manufactured from powdered metal high-speed steel and coated with titanium nitride (TiN) for improved wear resistance and longer tool life. The plug chamfer with 4 chamfered threads provides a gradual lead-in, making it well suited for general-purpose tapping in a range of workpiece materials. It is used by machinists, maintenance technicians, and tool and die professionals.

This tap is intended for through-hole threading operations on ferrous and non-ferrous metals where a Class 3B thread fit is required. The right-hand thread direction and H5 thread limit make it a standard choice for precision threading in production and maintenance environments. With a tapping depth of 1.125 inches and a thread length of 0.88 inches, it handles typical through-hole depths encountered in general machining and repair work. A single oil groove aids lubrication during the forming process.

Key Features

• Thread forming design displaces material for chip-free, stronger threads
• Powdered metal high-speed steel construction for consistent hardness and toughness
• Titanium nitride (TiN) coating reduces friction and extends tool life
• Plug chamfer (4 chamfered threads) for gradual thread engagement
• H5 thread limit with Class 3B fit for precision thread tolerance control
• Right-hand thread direction, suitable for standard tapping equipment

Compatibility

Designed for through-hole threading of 5/16-18 UNC threads in materials compatible with thread forming operations, including low-carbon steel, aluminum, and other ductile metals. Fits standard tap holders and chucks accepting a 0.318-inch shank diameter.

Installation Notes

Thread forming taps require appropriate cutting fluid or tapping lubricant to protect the tool and workpiece during operation. Ensure the tapping drill size matches the recommended hole diameter for thread forming, as it differs from cutting tap requirements. Secure the workpiece and use a properly aligned tap holder or tapping head to prevent tap breakage. Always follow applicable shop safety practices when operating drilling and tapping equipment.
