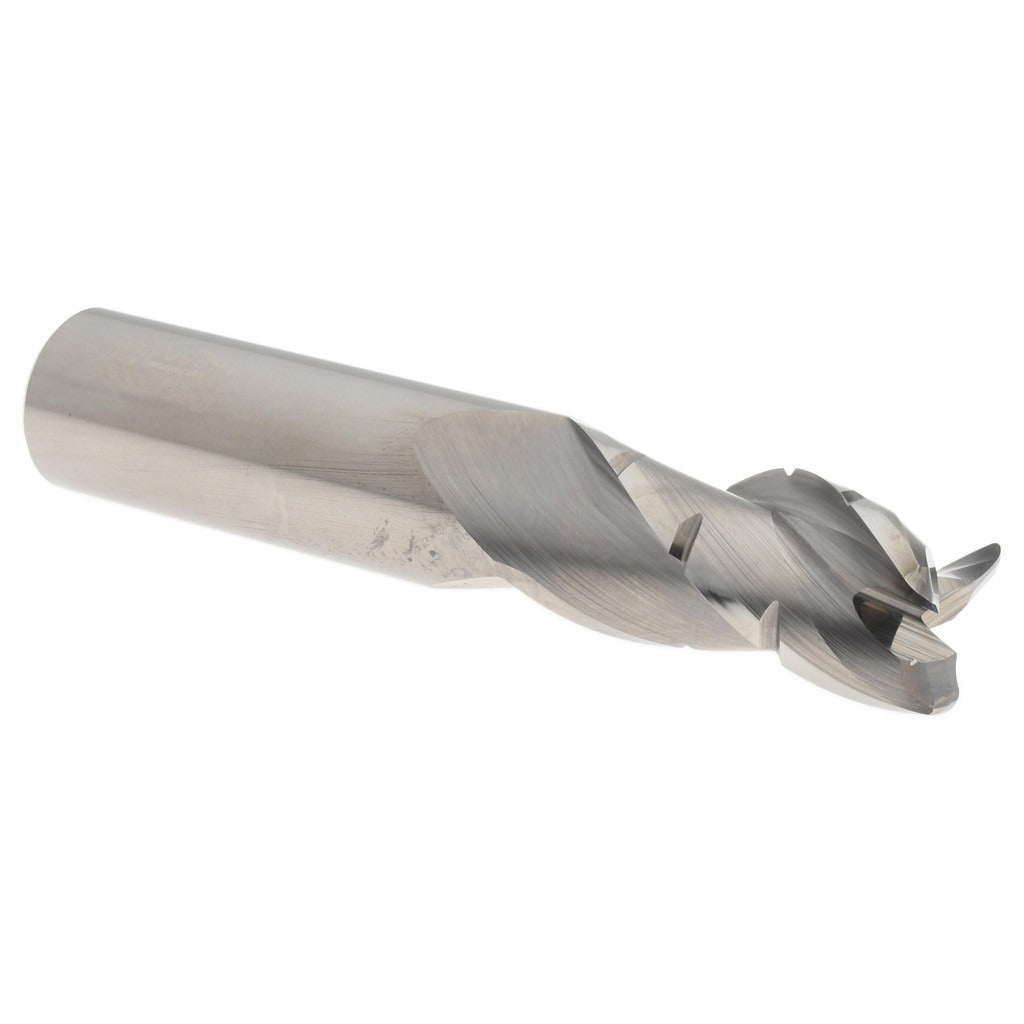

Accupro 125956 Roughing Finishing End Mill 3/4 in Carbide

Product Description

The ACCUPRO 125956 is a solid carbide roughing finishing end mill designed for aggressive material removal and finish-quality profiling in a single tool. Built with 3 flutes and a 37-degree helix angle, it generates efficient chip evacuation while maintaining surface quality. The 0.09-inch corner radius reduces corner chipping and extends tool life in demanding cuts. Micrograin carbide construction provides the hardness and rigidity needed for high-feed milling in steel, aluminum, and similar materials. This tool is intended for use by machinists and CNC operators running production or job-shop environments.

The 125956 is suited for pocketing and profiling operations where both roughing passes and finishing passes are required without a tool change. With a 3/4-inch mill diameter and 1.625-inch length of cut, it handles moderate-depth pockets and contoured profiles. The bright/uncoated finish makes it well-suited for non-ferrous materials such as aluminum where coating adhesion can be a concern. Right-hand cutting and right-hand flute direction are standard for conventional CNC vertical and horizontal machining centers.

Key Features

• Solid micrograin carbide construction for rigidity and wear resistance
• 3 flutes with 37-degree helix for efficient chip evacuation and smooth finish
• 0.09-inch corner radius reduces stress concentration at corners
• Bright/uncoated finish optimized for non-ferrous and general-purpose milling
• Single-end design with 3/4-inch shank for direct collet or end mill holder mounting
• Designed for pocketing and profiling applications per manufacturer Series AL designation

Compatibility

Designed for use in standard 3/4-inch collets or end mill holders on CNC vertical machining centers, horizontal machining centers, and manual mills. Suited for pocketing and profiling operations as noted in manufacturer application data.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Secure the shank fully into a clean, properly sized collet or end mill holder and torque the retention system per the toolholder manufacturer's specifications. Inspect the spindle taper and holder bore for chips or damage before seating the tool. Verify runout with a dial indicator before beginning a production run to avoid premature tool wear or part rejection.
