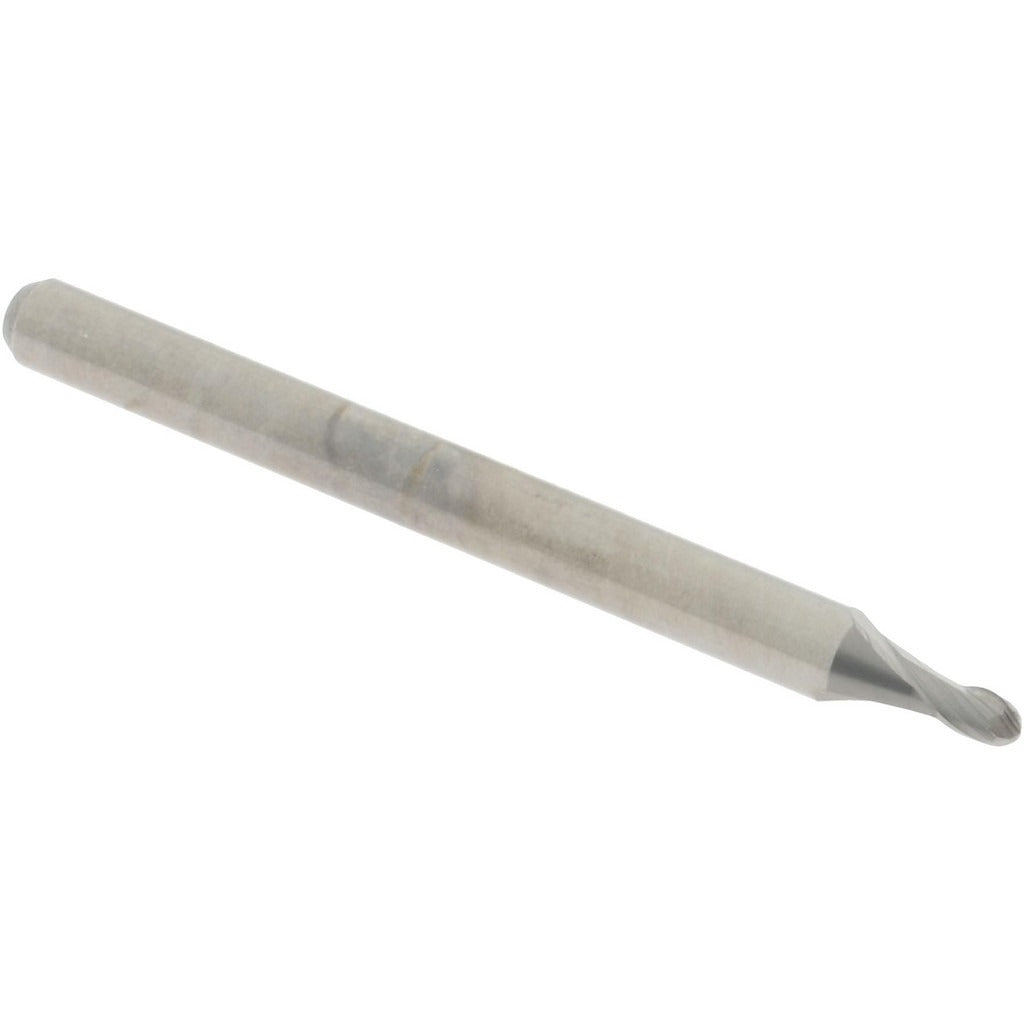

Accupro 12465529 Ball End Mill 0.065 in 2 Flute Carbide

Product Description

The ACCUPRO 12465529 is a solid carbide ball end mill designed for precision milling in tight geometries and small-feature work. At 0.065 inches in diameter with a 0.098-inch length of cut (LOC), this miniature-series tool is built for profiling, contouring, and slotting operations where close tolerances are required. The 2-flute, right-hand spiral configuration with a 30-degree helix angle promotes efficient chip evacuation and smooth cutting action. Micrograin carbide construction provides the hardness and edge retention needed in demanding materials. The bright uncoated finish suits a wide range of ferrous and non-ferrous applications without added coating variables.

This end mill fits residential and commercial machine shop environments, CNC machining centers, and precision prototype work where small-diameter tooling is standard. The 1/8-inch shank diameter is compatible with common collet systems used in vertical machining centers and high-speed spindles. At 1.5 inches overall length (OAL), the tool is suited for shallow-to-moderate depth applications requiring minimal stick-out and maximum rigidity. Machinists and toolroom technicians working in mold making, medical component manufacturing, and aerospace detail work will find this a practical choice for miniature milling paths.

Key Features

• 0.065-inch ball end diameter for fine-detail contouring and profiling
• Micrograin solid carbide construction for rigidity and edge retention
• 2-flute, right-hand spiral with 30-degree helix for efficient chip evacuation
• Bright uncoated finish compatible with ferrous and non-ferrous materials
• Single-end design with 1/8-inch shank for standard collet fitment
• Miniature series at 1.5 inches OAL for compact, low-deflection setups

Compatibility

Designed as an OEM-style miniature ball end mill compatible with CNC machining centers and manual mills equipped with 1/8-inch collet systems.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician familiar with CNC tooling and collet systems. Ensure the spindle is fully stopped and the machine is in a safe state before changing tooling. Verify collet condition and runout before seating the shank to protect the tight diameter tolerances on this miniature tool. Consult machine manufacturer guidelines for recommended speeds, feeds, and clamping torque for small-diameter carbide end mills.
