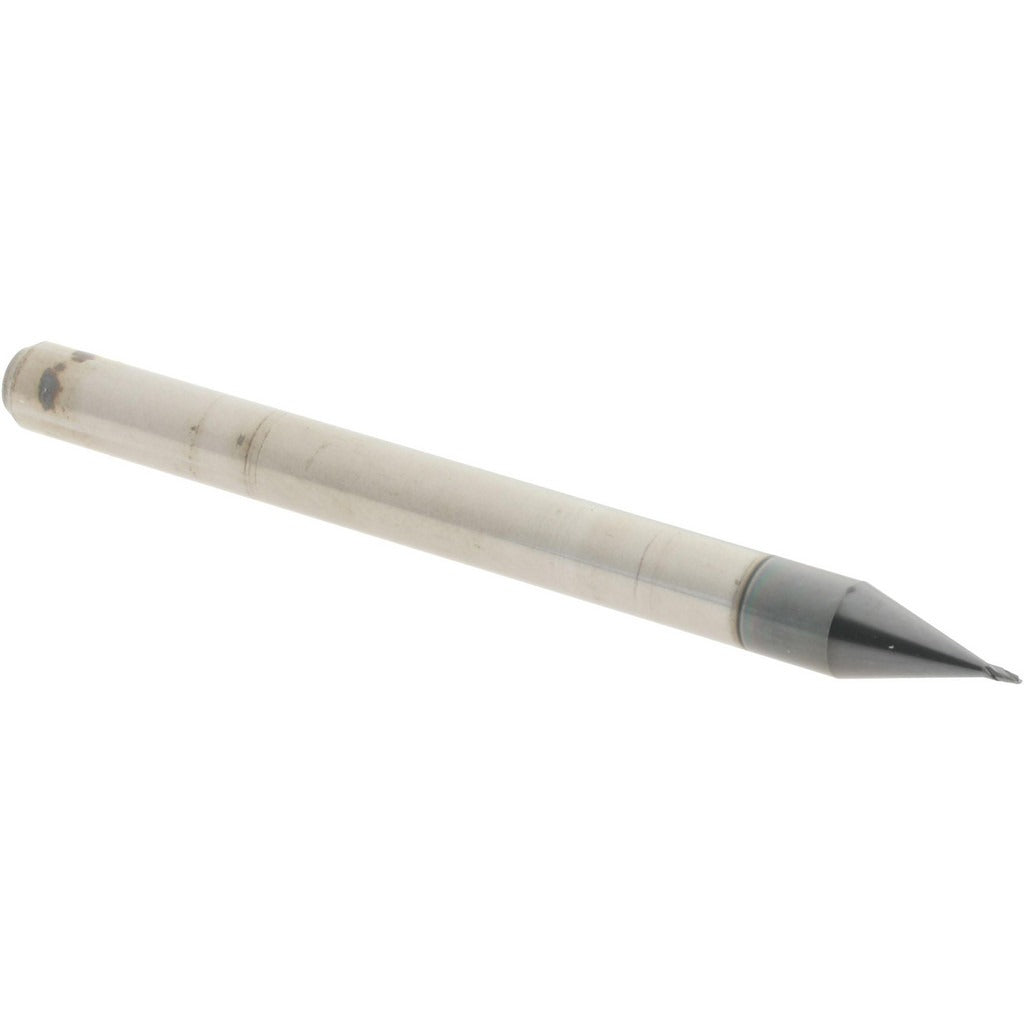

Accupro 12464351 Square End Mill 0.016 in 2 Flute Carbide

Product Description

The ACCUPRO 12464351 is a solid carbide square end mill designed for precision milling in demanding machining environments. It features a 0.016 inch cutting diameter and a 0.024 inch length of cut, making it well suited for micro-milling operations where tight tolerances and fine feature detail are required. The two-flute configuration supports efficient chip evacuation in small-diameter applications. An AlTiN coating provides heat resistance and extended tool life when cutting hardened steels, stainless alloys, and other abrasive materials. The stub-length profile adds rigidity, reducing deflection during cut. This tool is installed by machinists and CNC operators working in precision manufacturing, aerospace, medical device, and mold and die applications.

This end mill is suited for use in CNC machining centers and precision mills where small-diameter tooling is required. The 0.125 inch shank diameter is compatible with standard collet and tool holder systems used in vertical and horizontal milling setups. The right-hand cutting and right-hand flute direction are standard for the majority of CNC spindle configurations. The 30-degree helix angle and micrograin carbide substrate support stable cutting in ferrous and non-ferrous materials. Stub-length geometry is preferred when workpiece access allows shorter reach, as it maximizes tool stiffness.

Key Features

• Solid micrograin carbide construction for hardness and wear resistance
• AlTiN coating for high-temperature performance and extended tool life
• 0.016 inch cutting diameter with a mill diameter tolerance of +0.0000 / -0.0010 inches
• 2-flute, right-hand spiral design promotes chip evacuation in small-diameter cuts
• 30-degree helix angle balances cutting forces and surface finish
• Center-cutting capable, allowing plunge entry into workpiece material
• Stub-length profile maximizes rigidity and minimizes deflection

Compatibility

Designed for use in CNC machining centers and precision milling machines equipped with collet systems or tool holders that accept a 0.125 inch shank diameter. Suitable for milling ferrous and non-ferrous metals, hardened steels, and abrasive alloys where AlTiN coating performance is advantageous.

Installation Notes
