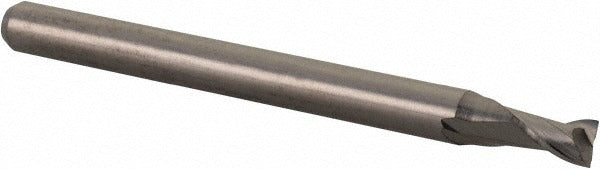

Accupro 12462567 Square End Mill 0.095 in 2 Flute Carbide

Product Description

The ACCUPRO 12462567 is a solid carbide square end mill designed for precision milling operations in metal, composites, and engineering plastics. With a 0.095-inch cutting diameter and a 0.285-inch length of cut, this tool is suited for fine detail work, slotting, and profiling in tight geometries. The micrograin carbide substrate provides the hardness and edge retention needed for consistent performance in demanding applications. A 30-degree helix angle promotes efficient chip evacuation and reduces cutting forces. The bright, uncoated finish is appropriate for applications where coating buildup or reaction with the workpiece material is a concern.

This end mill is intended for use in CNC machining centers, manual mills, and precision toolroom equipment where small-diameter tooling is required. The 0.125-inch shank diameter fits standard collets and tool holders common to light-duty and precision milling setups. The regular-length geometry and single-end configuration make it a straightforward replacement or working stock tool for shops running small-feature programs. Centercutting capability allows plunge entry directly into the workpiece without pre-drilling.

Key Features

• 0.095-inch cutting diameter with mill diameter tolerance of +0.0000 / -0.0010 inches for close-tolerance work
• Micrograin solid carbide construction for superior hardness and edge retention
• 30-degree right-hand spiral flutes promote efficient chip evacuation
• Centercutting design allows direct plunge milling without pre-drilled entry holes
• Bright/uncoated finish suitable for non-ferrous metals and applications where coatings are not preferred
• 2-flute configuration provides generous chip clearance in slotting and profiling cuts

Compatibility

Designed as an OEM-style replacement or working stock end mill compatible with standard 0.125-inch ID collets and tool holders used in CNC and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the spindle is fully stopped and the machine is in a safe, locked-out state before changing tooling. Seat the shank fully and evenly in the collet to the recommended engagement depth per the tool holder manufacturer guidelines. Inspect the cutting edges for chips or damage before each use, as small-diameter carbide tools are brittle and can fracture under improper clamping or excessive runout.
