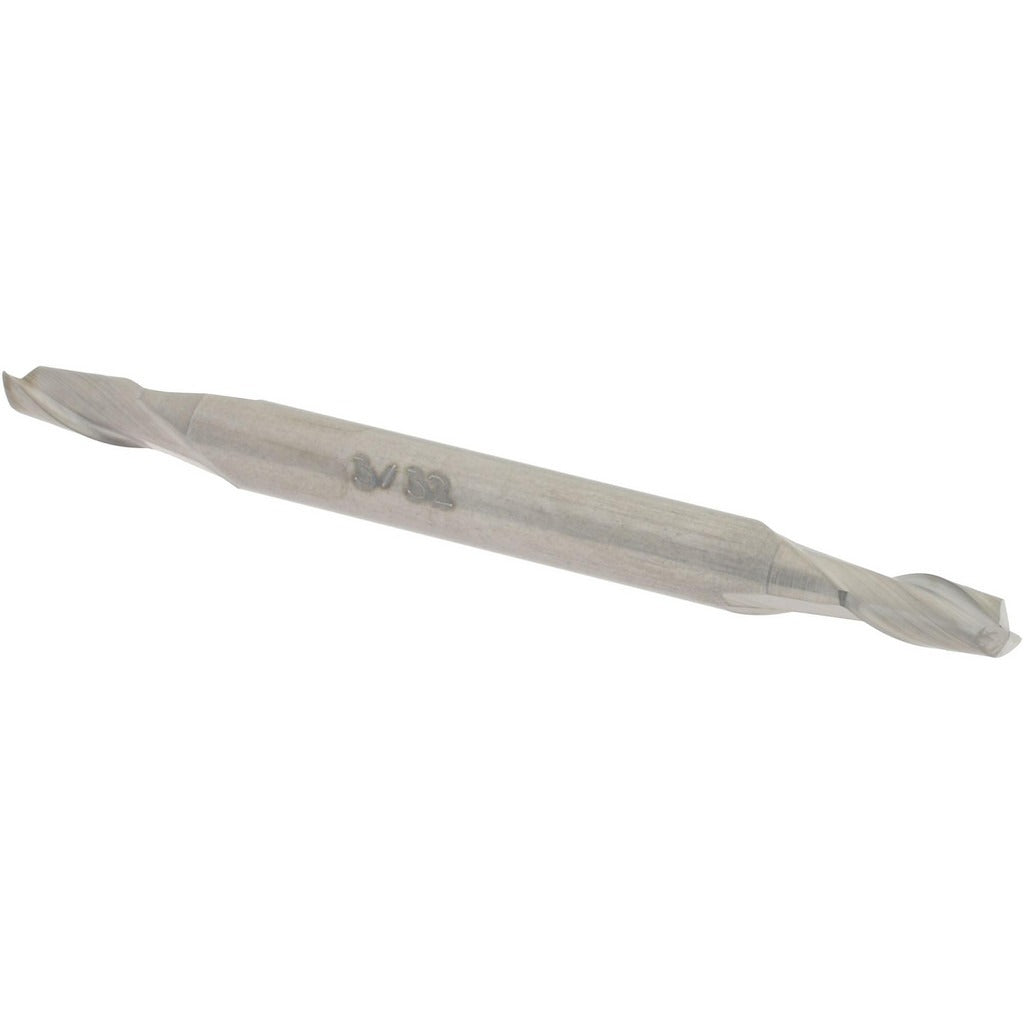

Accupro 12185065 Square End Mill 3/32 in 2 Flute Carbide

Product Description

The ACCUPRO 12185065 is a solid carbide square end mill designed for precision milling operations in metal and composite materials. Built from micrograin carbide, this stub-length, double-end tool measures 0.0938 inches in cutting diameter with a 3/16-inch length of cut and a 1/8-inch shank diameter. The 30-degree spiral flute geometry and right-hand cut direction support efficient chip evacuation and smooth surface finishes. With a bright uncoated finish, it suits applications where coating is unnecessary or where regrinding is anticipated. Licensed machinists and CNC operators rely on this configuration for fine-detail work requiring tight tolerances.

This end mill is suited for light-duty slotting, profiling, and contouring in small-feature machining. The stub overall length of 1.5 inches provides rigidity in applications where reach is not a constraint, reducing deflection during high-speed passes. The centercutting design allows plunge cutting directly into the workpiece. It is a practical choice for tool-and-die, mold-making, and precision part machining environments running CNC mills or manual knee mills.

Key Features

• Solid micrograin carbide construction for wear resistance and dimensional stability
• Double-end design extends usable tool life between regrinds
• 30-degree helix spiral flute promotes efficient chip flow
• Centercutting capability allows direct plunge entry
• Bright uncoated finish suitable for regrinding and dry machining applications
• Tight shank diameter tolerance of -0.0001/-0.0004 inches for secure collet holding

Compatibility

Designed as an OEM-style replacement or standard tooling selection for CNC and manual milling machines accepting a 1/8-inch round shank.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the machine spindle is fully powered down and the collet or chuck is clean and free of debris before seating the shank. Verify runout after tool installation to remain within the manufacturer diameter tolerance. Follow your facility safety procedures and machine manufacturer guidelines for spindle speed and feed rate selection.
