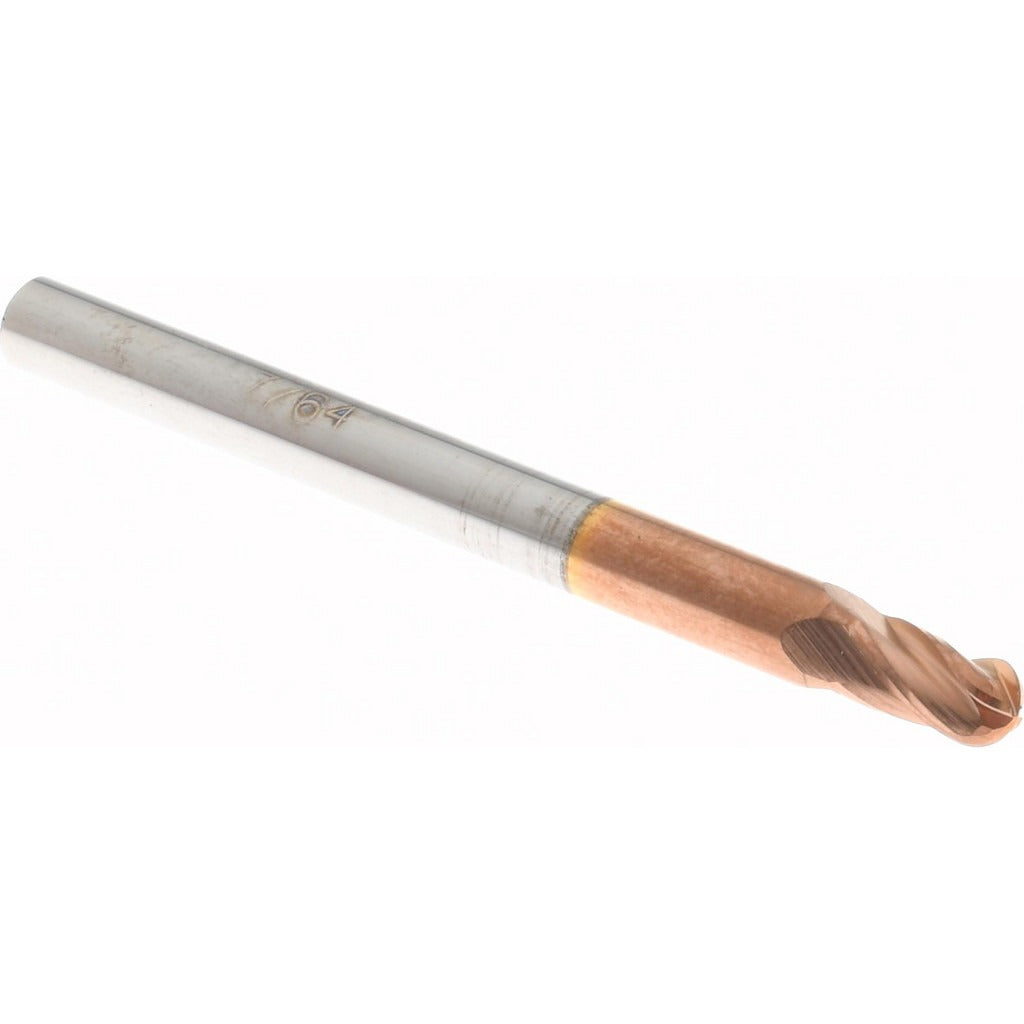

Accupro 12184761 Ball End Mill 0.1094 in 4 Flute Ticn Carbide

Product Description

The ACCUPRO 12184761 is a solid carbide ball end mill designed for precision milling of contoured surfaces, slots, and complex three-dimensional profiles. Built from micrograin solid carbide stock, this single-end tool measures 0.1094 inches in diameter with a 0.1875-inch length of cut and a 1.5-inch overall length. The TiCN (Titanium Carbonitride) coating improves surface hardness and wear resistance, extending tool life across a range of workpiece materials. The 40-degree helix angle and four-flute spiral geometry promote efficient chip evacuation and smooth cutting action. Machinists and CNC operators in job shops, toolrooms, and production environments rely on this style of end mill for finish passes and die-mold work.

This stub-length ball end mill suits applications where a compact tool profile is needed to minimize deflection and maintain tight tolerances. It is well suited for finish milling of hardened steels, stainless alloys, cast iron, and non-ferrous materials where TiCN coating provides the necessary thermal and abrasion resistance. The right-hand cutting and right-hand flute direction make it compatible with standard CNC machining center spindles. Its 0.125-inch shank diameter fits common collet systems used on vertical machining centers and high-speed routers.

Key Features

• Micrograin solid carbide construction for rigidity and edge retention in demanding cuts
• TiCN coating improves wear resistance and reduces built-up edge on ferrous and non-ferrous materials
• 40-degree helix angle promotes smooth cutting action and efficient chip evacuation
• Four-flute spiral geometry maximizes material removal rate while maintaining surface finish quality
• Stub length reduces overhang and deflection for improved dimensional accuracy
• Single-end design with right-hand cut and right-hand flute for standard CNC spindle compatibility

Compatibility

Designed as an OEM-style solid carbide ball end mill replacement for CNC machining centers and manual mills equipped with collets or tool holders accepting a 0.125-inch shank diameter.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the spindle is fully stopped and the machine is in a safe, locked-out state before changing tooling. Seat the shank fully into the collet or tool holder to the recommended grip length and torque the retention nut to the tool holder manufacturer's specification. Verify tool runout with a dial indicator before beginning a production cut.
