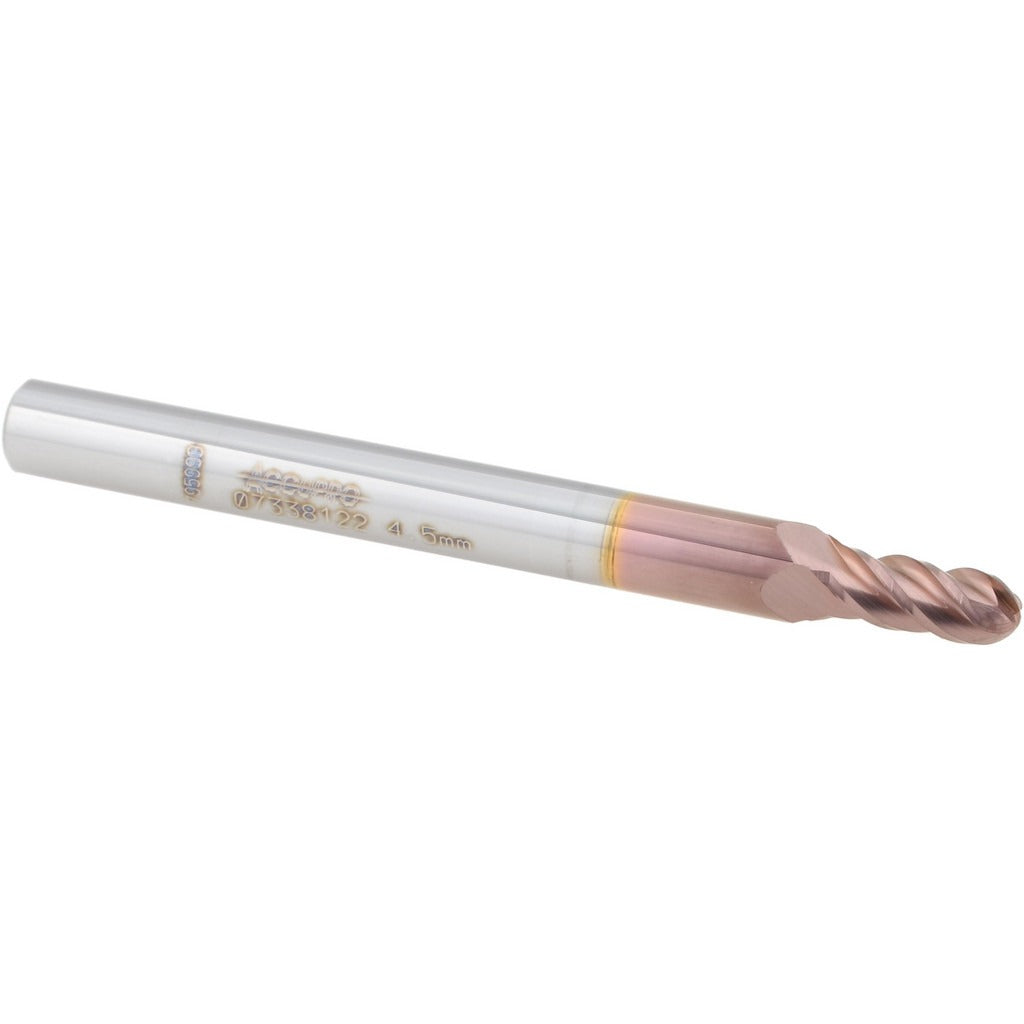

Accupro 12184755 Ball End Mill 4.50mm 4 Flute Carbide Ticn

Product Description

The ACCUPRO 12184755 is a solid carbide ball end mill designed for precision milling operations in metal cutting and machining applications. With a 4.50 mm cutting diameter and a 9.50 mm length of cut, this single-end tool removes material in a spherical profile suited to contouring, profiling, and finishing passes. The four-flute geometry paired with a 40-degree helix angle promotes efficient chip evacuation and smooth surface finishes. A TiCN coating extends tool life by reducing friction and increasing surface hardness. This tool is installed and used by machinists and CNC operators working in job shops, tool rooms, and production environments.

This ball end mill is suited to milling steel, alloy steel, cast iron, stainless steel, and similar ferrous materials where TiCN coating provides a thermal and wear advantage. The 6.00 mm shank diameter fits standard collets and end mill holders on CNC machining centers and manual knee mills. The stub-length classification keeps the tool rigid, reducing deflection on shallow-to-moderate depth cuts. Right-hand cutting and right-hand flute direction make this a conventional setup for standard spindle configurations.

Key Features

• 4.50 mm cutting diameter with ball-nose profile for contouring and 3D surface work
• 4-flute, right-hand spiral geometry for efficient chip removal and improved finish quality
• 40-degree helix angle reduces cutting forces and supports smooth chip flow
• TiCN coating increases surface hardness and reduces tool wear on ferrous materials
• Micrograin solid carbide substrate provides rigidity and edge retention
• Stub-length design minimizes deflection in standard depth-of-cut applications

Compatibility

Designed for use in standard 6.00 mm collets and end mill holders on CNC machining centers and manual milling machines configured for right-hand cutting tools.

Installation Notes

Installation is performed by a machinist or CNC operator. Power down and lock out the spindle before inserting or removing the tool from the holder. Ensure the collet or holder is clean and free of debris before seating the shank to the correct insertion depth. Follow the machine tool manufacturer guidelines and applicable shop safety standards when setting feeds, speeds, and depth of cut for the workpiece material.
