Accupro 12184729 Ball End Mill 0.0938 in 4 Flute Carbide

Product Description

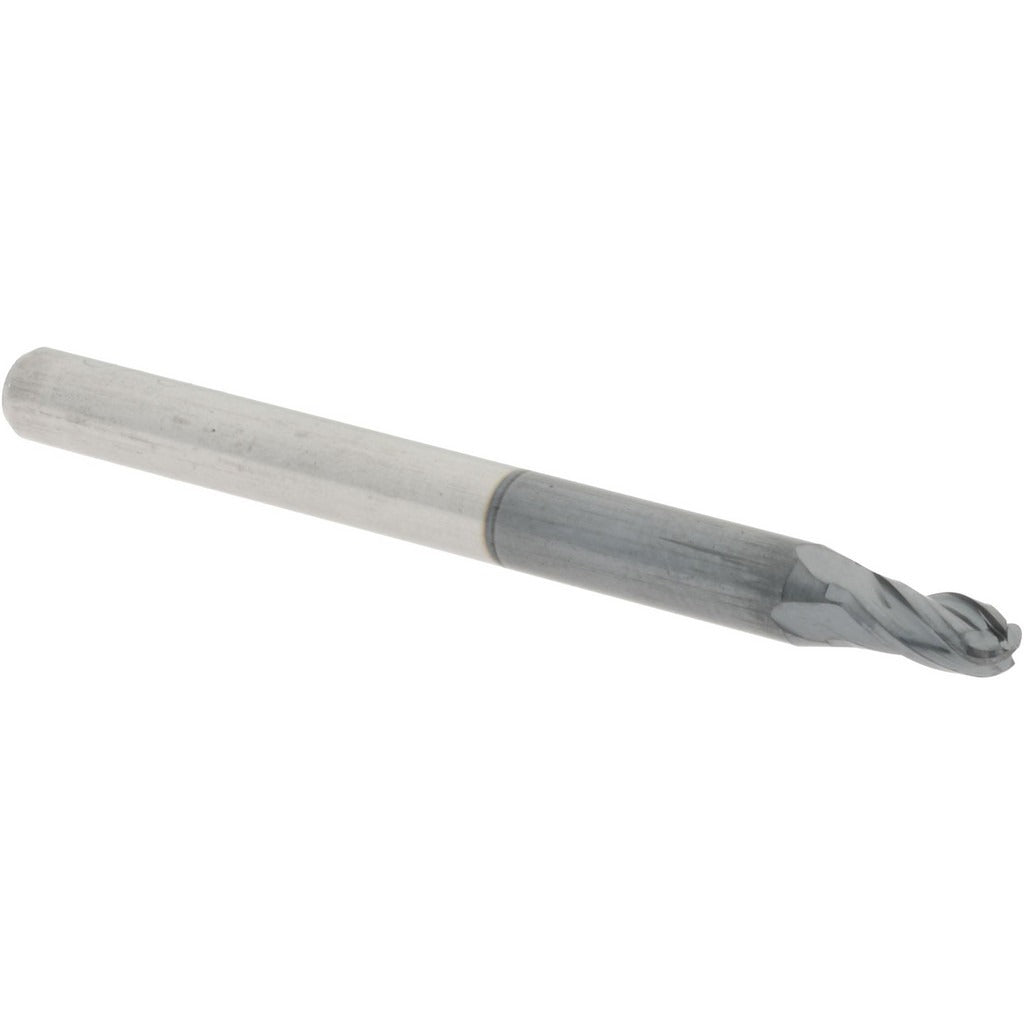

The ACCUPRO 12184729 is a solid carbide ball end mill designed for high-performance milling in demanding machining environments. With a 0.0938 inch cutting diameter and a 0.1875 inch length of cut, this tool is built for fine detail work, contour milling, and finishing passes in hard and abrasive materials. The AlTiN coating provides exceptional heat resistance and extended tool life at elevated cutting speeds. The 40-degree helix angle promotes efficient chip evacuation and smooth cutting action. Machinists and tool-and-die professionals select this end mill for precision applications where dimensional accuracy and surface finish are critical.

This end mill is suited for CNC machining centers and manual mills running ferrous metals, hardened steels, stainless steel, titanium, and similar difficult-to-machine materials. The stub length configuration and 1/8 inch shank diameter make it a natural fit for close-tolerance work and tight radii in mold making, die work, and aerospace component finishing. The single-end design allows straightforward tool-holder setup with standard collet chucks and end mill holders.

Key Features

• Solid carbide micrograin construction for rigidity and wear resistance
• AlTiN coating extends tool life in high-heat, high-speed cutting applications
• 40-degree right-hand spiral flutes promote efficient chip evacuation
• 4-flute design delivers superior surface finish on finishing passes
• Stub length configuration reduces deflection in precision milling
• Ball nose geometry enables contour milling and 3D surface finishing

Compatibility

Designed as an OEM-style replacement or direct-use cutting tool compatible with standard 1/8 inch collet chucks and end mill holders on CNC and manual milling machines accepting right-hand cutting tools.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the spindle is fully stopped and the machine is in a safe state before changing tooling. Seat the 1/8 inch shank fully into the collet or tool holder and torque the retention hardware per the tool holder manufacturer specifications. Verify runout with a dial indicator before beginning the cut cycle to confirm proper seating and minimize tool deflection.
