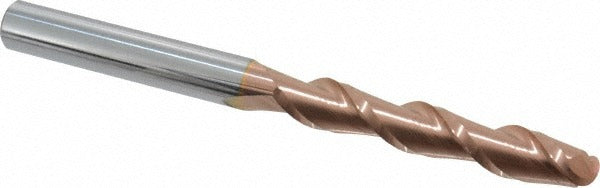

Accupro 12184263 Ball End Mill 0.5625in 2 Flute Carbide Ticn

Product Description

The ACCUPRO 12184263 is a solid carbide ball end mill designed for precision milling operations in metalworking and machining environments. With a 0.5625 inch mill diameter, a 3 inch length of cut, and a 6 inch overall length, this is an extra-long tool suited for deep-cavity and contour milling where standard-length end mills cannot reach. The TiCN coating improves surface hardness and wear resistance, extending tool life in demanding ferrous and non-ferrous applications. Two right-hand spiral flutes with a 40-degree helix angle promote efficient chip evacuation and smooth cutting action. The micrograin carbide substrate provides a balance of toughness and edge retention at elevated cutting speeds.

This end mill is appropriate for use in CNC machining centers and manual mills handling die and mold work, deep-pocket profiling, and 3D contouring. The extra-long configuration and 9/16 inch shank diameter make it a strong candidate for aerospace, automotive, and tool-and-die shops where extended reach into deep features is required. It is a single-end tool with right-hand cutting direction, installed by machinists and CNC operators in standard end mill holders or collet chucks compatible with its shank diameter.

Key Features

• 0.5625 inch ball nose diameter for contour and 3D surface milling
• 3 inch length of cut supports deep-cavity and long-reach applications
• TiCN coating for improved wear resistance and tool life
• Micrograin solid carbide construction for edge retention and rigidity
• 40-degree right-hand spiral flutes for efficient chip evacuation
• Extra-long 6 inch overall length for deep-feature access

Compatibility

Designed as an OEM-style replacement or direct-use cutting tool for CNC machining centers and manual mills accepting a 9/16 inch shank diameter end mill holder or compatible collet chuck.

Installation Notes

Installation is performed by qualified machinists or CNC operators. Power down and lock out the spindle before inserting or removing the tool. Secure the 9/16 inch shank fully in a properly sized collet or end mill holder and torque the retention device per the toolholder manufacturer specification. Inspect the cutting edges for chips or damage before each use, and confirm runout with a dial indicator when tight tolerances are required.
