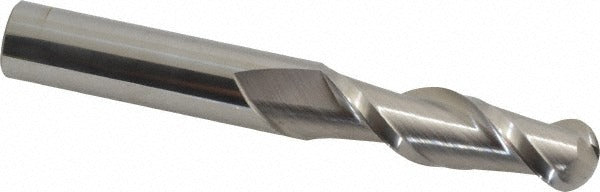

Accupro 12184232 Ball End Mill 0.625 in 2 Flute Solid Carbide

Product Description

The ACCUPRO 12184232 is a solid carbide ball end mill designed for precision milling operations in metalworking and machining applications. With a 0.625-inch diameter and a 2.125-inch length of cut, it handles deep-cavity profiling, contouring, and 3D surface work where rigidity and edge retention are critical. The 2-flute geometry and 40-degree right-hand helix promote efficient chip evacuation while maintaining smooth surface finishes. The micrograin carbide substrate delivers the hardness and wear resistance needed for demanding cuts in ferrous and non-ferrous materials. This tool is sized for CNC machining centers and manual mills operated by machinists and tool-and-die professionals.

This ball end mill is suited for production and job-shop environments where long-reach access to deep pockets or sloped surfaces is required. The long-length designation and 2.125-inch length of cut make it appropriate for mold and die work, aerospace profiling, and general precision part manufacturing. The single-end configuration means the working end is the ball tip only. Right-hand cutting direction is standard for conventional CNC spindle rotation.

Key Features

• Solid micrograin carbide construction for high hardness and edge retention
• 0.625-inch ball end diameter with a 2.125-inch length of cut for deep-reach applications
• 40-degree right-hand helix angle promotes chip evacuation and smooth surface finish
• 2-flute spiral geometry suited for profiling, contouring, and 3D surface milling
• Uncoated finish allows direct use on a wide range of materials without coating compatibility concerns
• Long-length designation provides extended reach into deep cavities and pockets

Compatibility

Designed as a standard single-end ball end mill compatible with CNC machining centers and manual mills accepting a 0.625-inch straight shank tool holder or collet.

Installation Notes

Installation is performed by qualified machinists following standard tooling procedures. Ensure the machine spindle is fully powered down and locked out before changing tooling. Seat the 0.625-inch shank fully and evenly in the collet or tool holder to the recommended gauge-line depth to prevent runout. Verify spindle rotation direction is right-hand before initiating a cut, and confirm all feeds and speeds are set per the material being machined.
