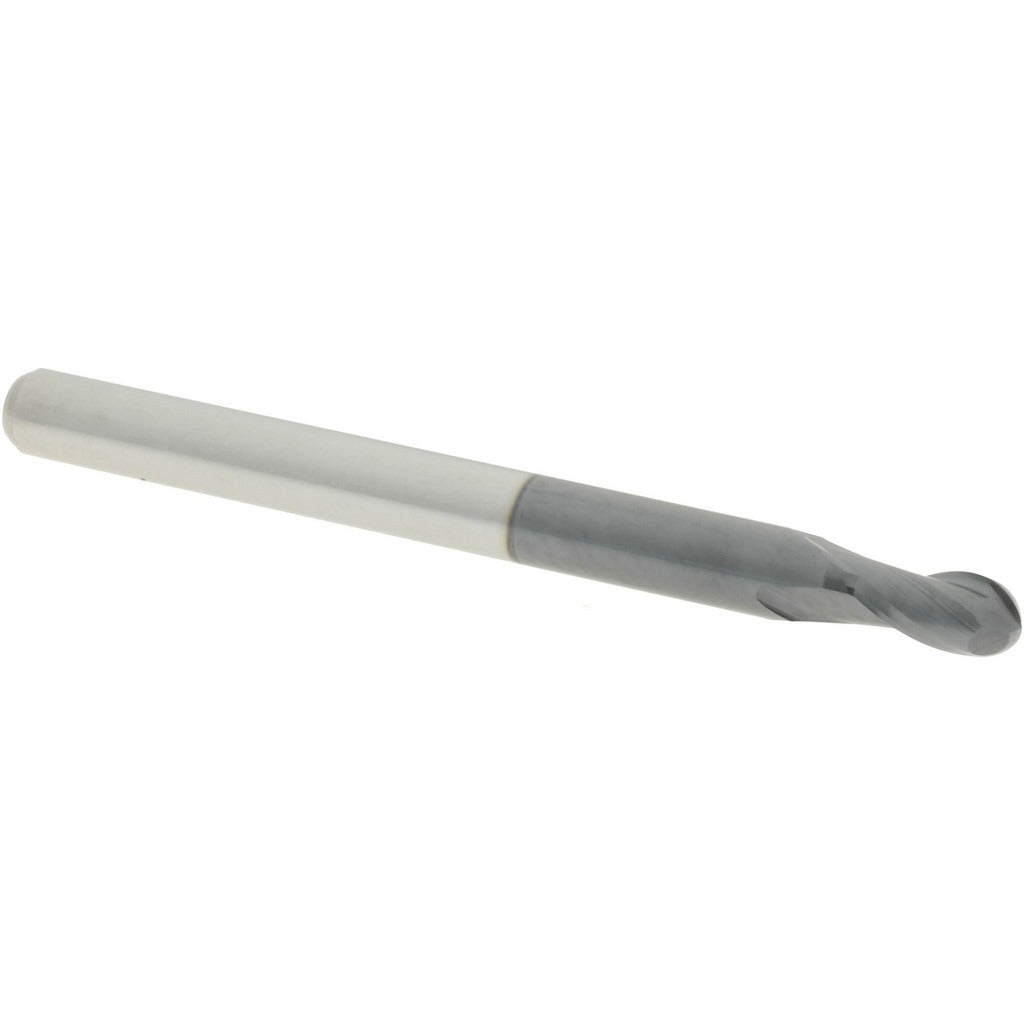

Accupro 12184111 Ball End Mill 0.1094 in 2 Flute Carbide

Product Description

The ACCUPRO 12184111 is a solid carbide ball end mill designed for precision milling operations in metalworking and machining environments. With a 0.1094-inch (7/64-inch) mill diameter and a 0.1875-inch (3/16-inch) length of cut, this stub-length tool is built for controlled, close-tolerance work in tight spaces. The AlTiN coating provides heat resistance and wear protection, extending tool life in ferrous and hardened materials. The micrograin carbide substrate supports the 40-degree helix angle, promoting efficient chip evacuation and smooth cutting action. This end mill is installed and operated by machinists and CNC programmers in job shops, tool rooms, and production environments.

This end mill is suited for slot milling, profiling, and contouring in ferrous metals, hardened steels, and high-temperature alloys where the AlTiN coating delivers maximum thermal protection. The stub-length geometry reduces deflection during aggressive cuts at small diameters. With a 1/8-inch shank diameter and 1-1/2-inch overall length, it seats securely in standard collets and end mill holders on CNC machining centers and manual mills. Right-hand cut and right-hand spiral flute direction are standard for conventional and climb milling setups.

Key Features

• 0.1094-inch (7/64-inch) ball end diameter for fine detail and contour work
• AlTiN coating for high-temperature wear resistance in ferrous and alloy materials
• 40-degree helix angle promotes efficient chip evacuation and reduces cutting forces
• Micrograin solid carbide substrate for rigidity and edge retention at small diameters
• Stub-length geometry minimizes deflection in precision milling applications
• Single-end, right-hand cut configuration for standard CNC and manual mill setups

Compatibility

Designed for use in standard 1/8-inch collets and end mill holders on CNC machining centers and manual milling machines accepting right-hand cut solid carbide end mills.

Installation Notes

Installation and tool changes must be performed by a qualified machinist with the spindle fully stopped and machine power locked out per shop safety procedures. Seat the shank fully into the collet or holder and torque the retention nut to the toolholder manufacturer specifications. Inspect the cutting edges and coating condition before each use. Do not exceed the tool manufacturer recommended speeds and feeds for the workpiece material and depth of cut.
