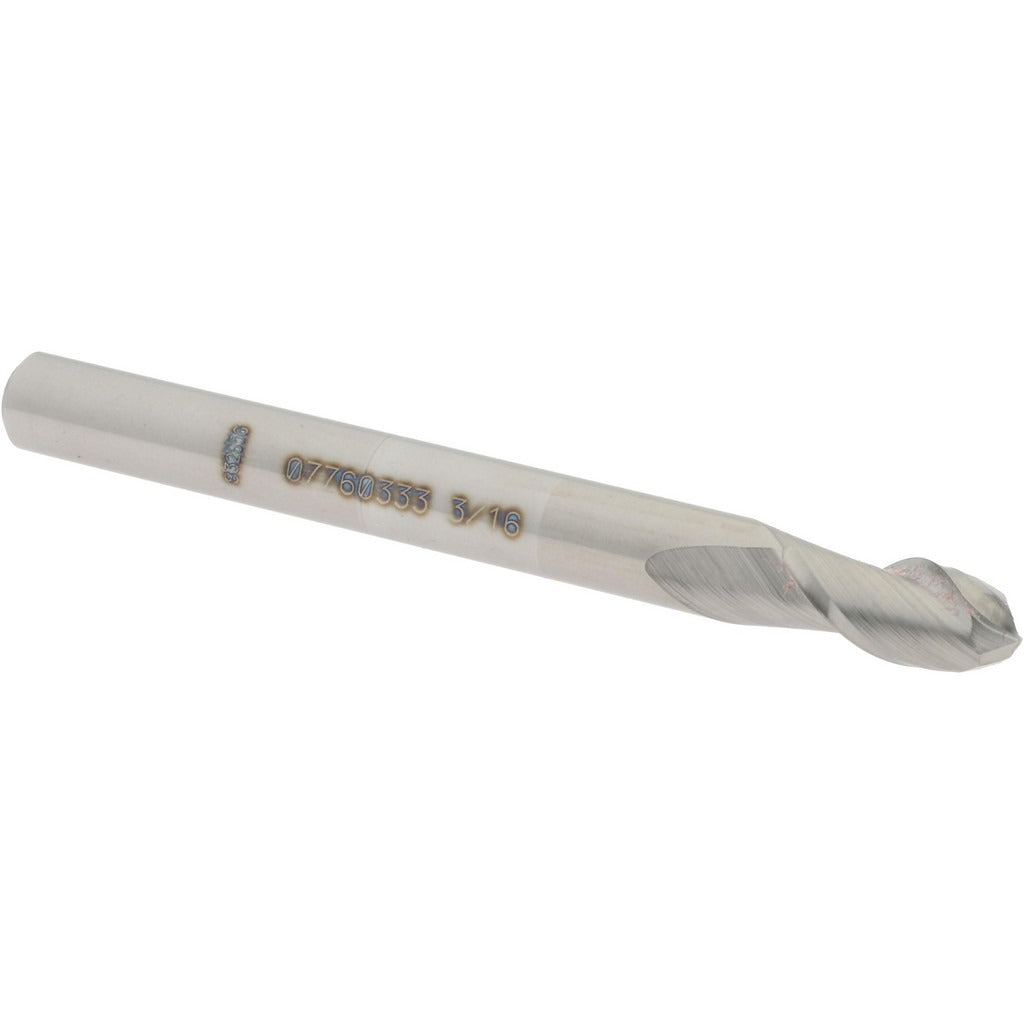

Accupro 12184106 Ball End Mill 0.1875 in 2 Flute Carbide

Product Description

The ACCUPRO 12184106 is a solid carbide ball end mill designed for precision milling operations in metalworking and machining applications. With a 0.1875-inch (3/16-inch) mill diameter and a 0.375-inch length of cut, this stub-length end mill is built for tight-tolerance work where rigidity and accuracy matter. The micrograin solid carbide construction provides excellent wear resistance and edge retention compared to high-speed steel alternatives. The 40-degree helix angle promotes efficient chip evacuation and smooth cutting action. This tool is installed and used by machinists and CNC operators working on milling machines, machining centers, and manual mills across production and job-shop environments.

The 12184106 is suited for slotting, profiling, and contouring operations in ferrous and non-ferrous materials where a ball-end profile is required. Its stub length and 2-inch overall length make it a practical choice for setups with limited Z-axis clearance or when minimizing tool deflection is a priority. The uncoated finish makes it appropriate for use with cutting fluids and in applications where coating compatibility with workpiece material is a concern. Machinists working on mold details, complex contours, and small-radius features will find this diameter and flute count well suited to finish and semi-finish passes.

Key Features

• Solid carbide micrograin construction for superior hardness and edge retention
• 0.1875-inch mill diameter with 0.375-inch length of cut for precise small-feature work
• 40-degree helix angle promotes efficient chip evacuation during milling
• Right-hand cut and right-hand spiral flute geometry for standard spindle rotation
• Uncoated finish compatible with a wide range of cutting fluids and workpiece materials
• Stub length design increases rigidity and reduces deflection in tight setups

Compatibility

Designed as an OEM-style replacement or direct-use solid carbide ball end mill suitable for CNC machining centers and manual mills accepting a 3/16-inch straight shank.

Installation Notes

Installation is performed by a qualified machinist or CNC operator. Ensure the machine spindle is fully stopped and locked out before inserting or removing the tool from the holder. Use an appropriate collet or end mill holder sized for a 3/16-inch shank and tighten to the tool holder manufacturer's specified procedure. Verify runout with a dial indicator before beginning cuts to protect both the tool and the workpiece.
