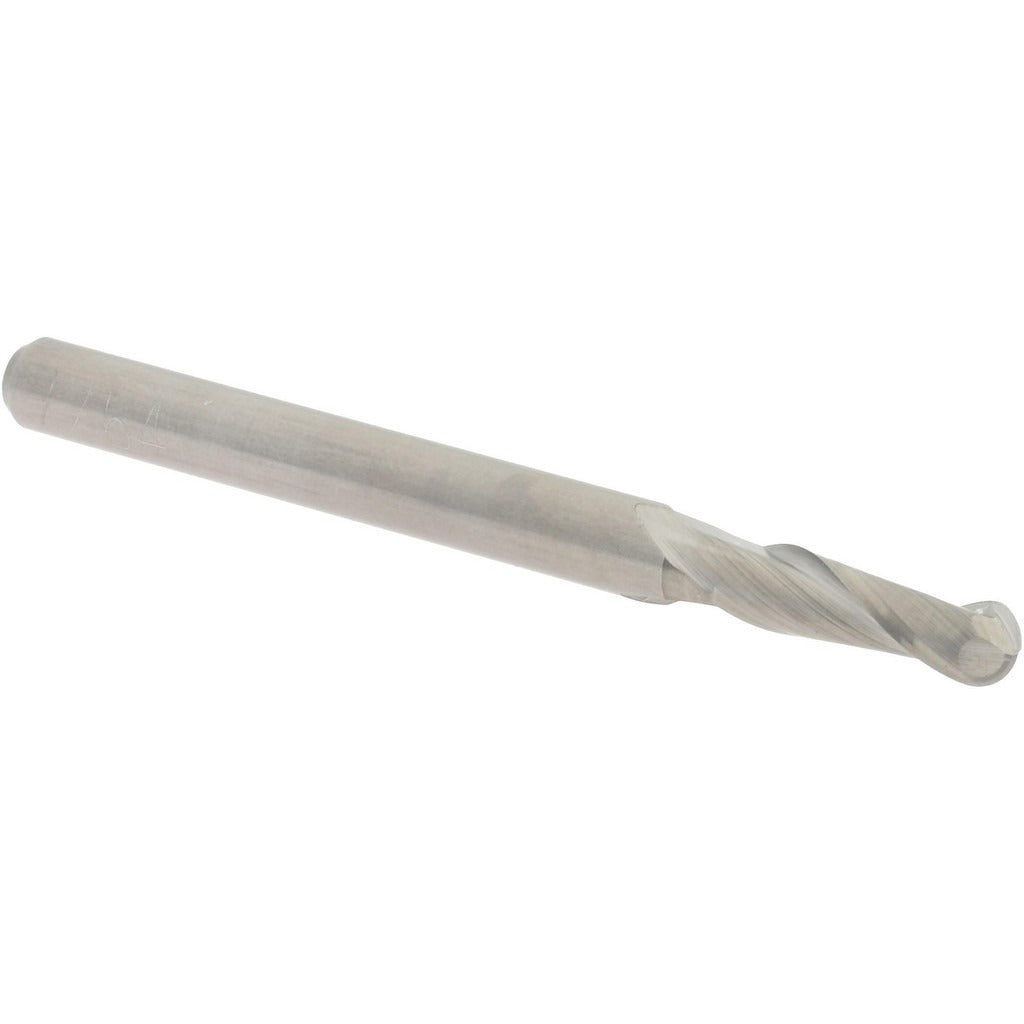

Accupro 12183947 Ball End Mill 0.1094 in 2 Flute Carbide

Product Description

The ACCUPRO 12183947 is a solid carbide ball end mill designed for precision milling operations in metalworking and machining applications. With a 0.1094-inch (7/64-inch) mill diameter and a 0.375-inch length of cut, this tool handles contour milling, slotting, and profiling in tight-tolerance work. The micrograin carbide construction delivers hardness and edge retention in demanding cutting conditions. The 40-degree helix angle promotes efficient chip evacuation and smooth cutting action. This end mill ships as a single-end tool with a right-hand cutting and flute direction. It is installed by machinists and tool-and-die professionals working on CNC machining centers and manual mills.

This end mill is suited for small-diameter finish and semi-finish milling on ferrous and non-ferrous materials where a ball nose profile is required. The 1/8-inch shank diameter fits standard collets and tool holders in that size range. The uncoated finish makes it a straightforward choice for applications where a coated tool is not required or where re-grinding is anticipated. Its compact geometry makes it practical for detailed work on molds, dies, and complex 3D contour surfaces.

Key Features

• Micrograin solid carbide construction for hardness and edge retention
• 40-degree helix angle for efficient chip evacuation and reduced cutting forces
• 0.1094-inch (7/64-inch) ball nose diameter for small-diameter contouring
• Right-hand cut and right-hand flute direction for standard CNC and manual mill setups
• Uncoated finish suitable for general-purpose milling and re-grind applications
• Single-end design with 1/8-inch shank diameter for compatibility with standard collets

Compatibility

Designed for use in CNC machining centers and manual milling machines equipped with a 1/8-inch collet or tool holder. Confirm spindle RPM and feed rate parameters are appropriate for the 0.1094-inch diameter before use.

Installation Notes

Installation is performed by qualified machinists. Power down and lock out the machine spindle before inserting or removing the end mill from the tool holder. Ensure the collet and holder are clean and free of debris before seating the shank. Verify that the tool is secured to the correct projection length before initiating a cut, and confirm that programmed speeds and feeds are appropriate for the workpiece material and tool diameter.
