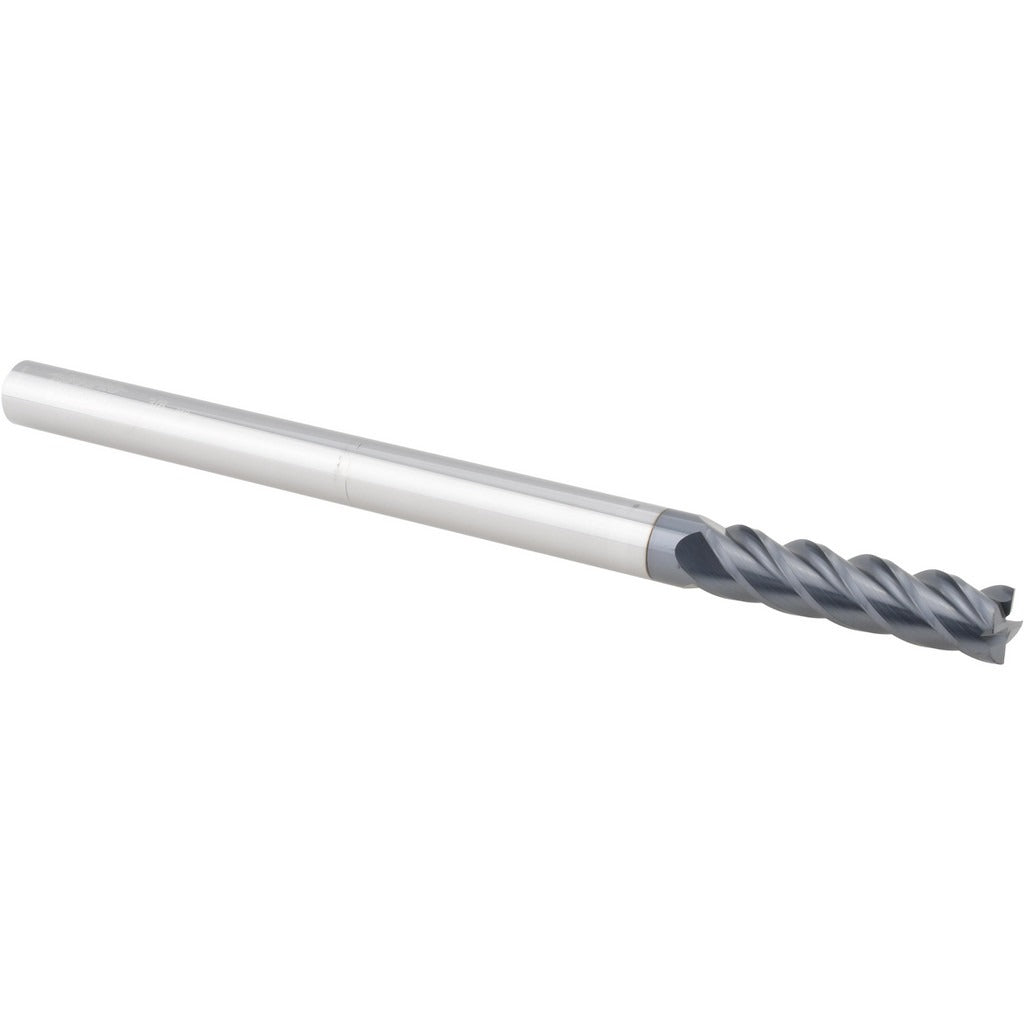

Accupro 12183706 Corner Radius End Mill 3/8 in 4 Flute

Product Description

The ACCUPRO 12183706 is a solid carbide corner radius end mill designed for precision milling in demanding metalworking and machining applications. With a 3/8-inch diameter and a 0.0100-inch corner radius, it produces clean, radiused edges that reduce stress concentration in finished parts. The four-flute, right-hand spiral geometry and 40-degree helix angle promote efficient chip evacuation and smooth cutting action. An AlTiN coating provides high heat resistance and surface hardness, making this end mill well-suited for cutting hardened steels, stainless steel, cast iron, and other difficult-to-machine alloys. It is a single-end, centercutting tool, meaning it can plunge as well as profile.

This end mill is used in CNC machining centers and manual milling machines where extra-long reach is required. The 6-inch overall length and 1-1/2-inch length of cut allow access to deep pockets, slots, and stepped features that standard-length tooling cannot reach. Typical applications include die and mold work, aerospace component machining, and precision part production where tight tolerances and surface finish quality are critical. It is sized with a 3/8-inch shank for direct collet or endmill holder mounting.

Key Features

• Solid micrograin carbide substrate for rigidity and wear resistance
• AlTiN coating extends tool life in high-heat, high-speed cutting of ferrous and hardened materials
• 0.0100-inch corner radius reduces edge chipping and improves part surface finish
• 40-degree helix angle promotes aggressive chip evacuation and reduced cutting forces
• Extra-long 6-inch OAL with 1-1/2-inch length of cut for deep-reach milling
• Centercutting design allows direct plunge entry without a pre-drilled hole

Compatibility

Designed as an OEM-style replacement or direct substitute for 3/8-inch shank corner radius end mills used in standard collet chucks, shrink-fit holders, and end mill holders on CNC and manual milling platforms.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. The machine spindle must be fully stopped and locked out before inserting or removing tooling. Ensure the shank is clean and seated fully in the holder to the correct grip depth before torquing the collet or set screw. Do not exceed the tool manufacturer-recommended feed and speed parameters for the workpiece material and coating type.
