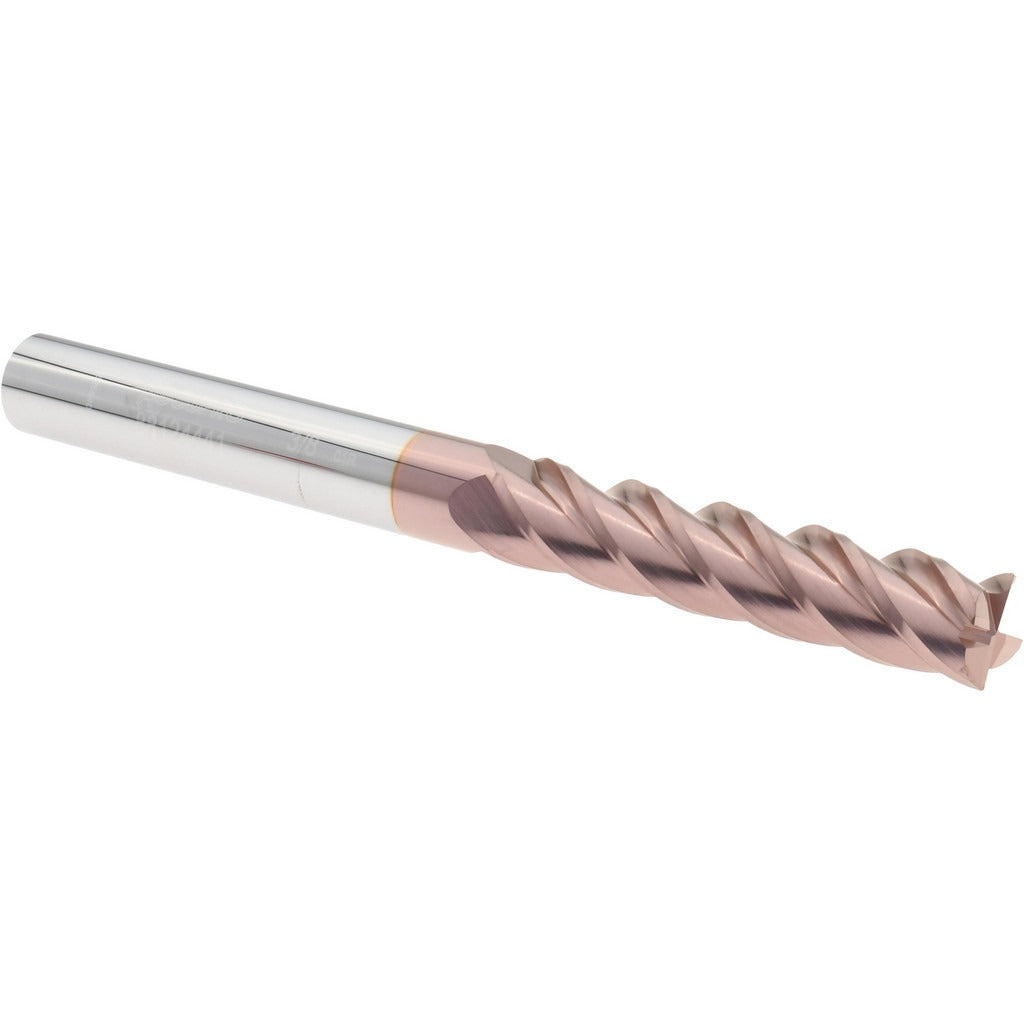

Accupro 12183286 Corner Radius End Mill 3/8 in 4 Flute Ticn

Product Description

The ACCUPRO 12183286 is a solid carbide corner radius end mill designed for precision milling operations in ferrous and non-ferrous materials. It features a 3/8 inch diameter, a 1-3/4 inch length of cut, and a 0.0100 inch corner radius that reduces stress concentrations at the cutting edge and extends tool life compared to sharp-corner designs. The 4-flute, right-hand spiral geometry and 40-degree helix angle promote efficient chip evacuation and smooth surface finishes. A TiCN (titanium carbonitride) coating adds hardness and lubricity, making this tool well suited for harder steels and high-cycle production environments. Micrograin carbide substrate provides the toughness and edge retention needed for demanding cut conditions.

This end mill is suited for CNC machining centers, vertical mills, and multi-axis setups in job shops, production facilities, and toolrooms. The extra-long 4 inch overall length and single-end, centercutting design allow it to reach into deeper pockets and perform both plunge and peripheral milling operations. Right-hand cutting direction is standard for conventional and climb milling strategies on most CNC platforms.

Key Features

• Solid micrograin carbide construction for edge retention in hardened and abrasive materials
• TiCN coating increases surface hardness and reduces built-up edge in ferrous applications
• 0.0100 inch corner radius reduces stress risers and extends tool and workpiece life
• 40-degree helix angle promotes smooth chip flow and improved surface finish
• Centercutting design enables direct plunge entry without a pre-drilled start hole
• Extra-long 4 inch OAL provides reach for deep-pocket and extended-reach milling setups

Compatibility

Designed as a standard 3/8 inch shank end mill compatible with ER collet chucks, end mill holders, and shrink-fit tooling systems that accept 3/8 inch shanks on CNC machining centers and manual mills.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Power down and lock out the spindle before inserting or removing tooling. Verify collet or holder runout with a dial indicator before production use, as excessive runout accelerates flute wear and reduces dimensional accuracy. Do not exceed the recommended depth-of-cut and feed-per-tooth parameters for the workpiece material and machine rigidity.
