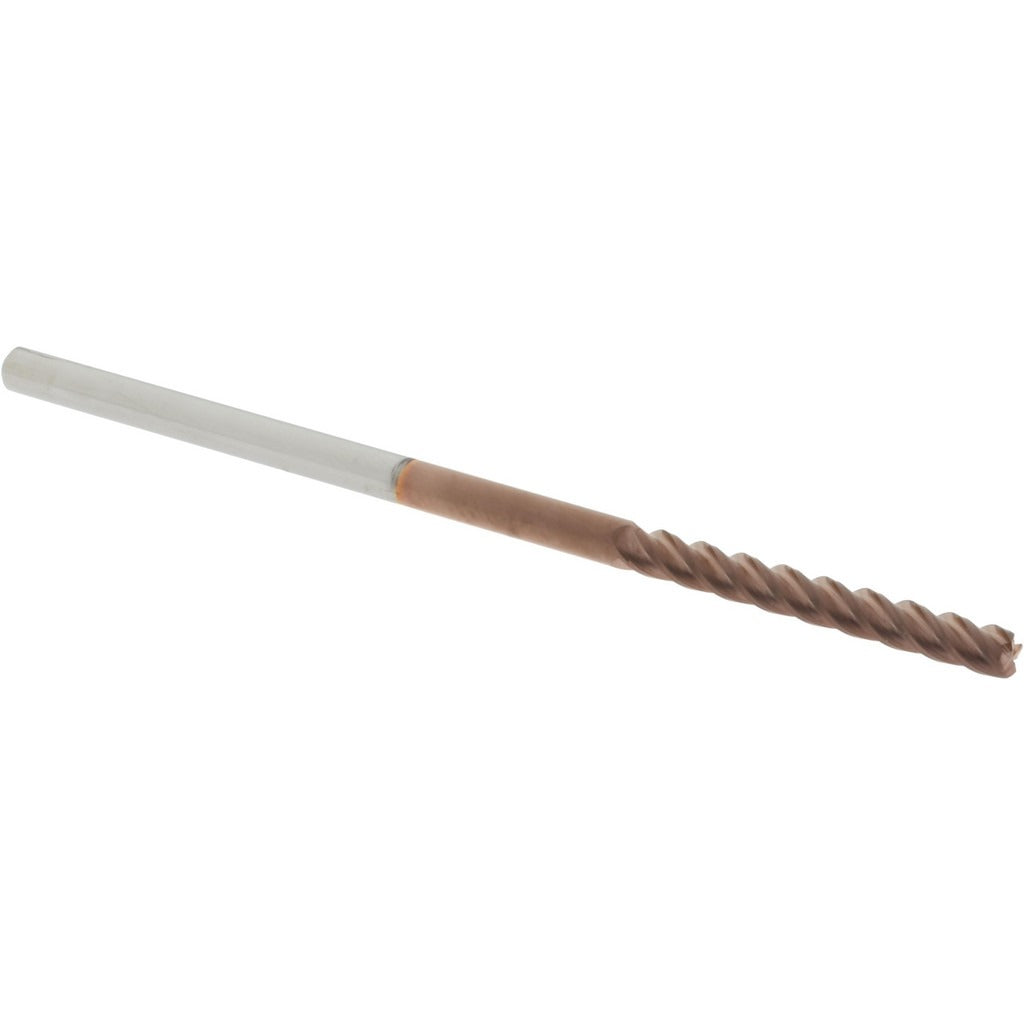

Accupro 12183195 Corner Radius End Mill 1/8 in 4 Flute

Product Description

The ACCUPRO 12183195 is a solid carbide corner radius end mill designed for precision milling in ferrous and non-ferrous metals. The 4-flute, single-end configuration features a 0.02 inch corner radius that reduces stress concentrations at part edges and extends tool life in demanding cuts. With a 40-degree helix angle and TiCN coating, this cutter is built for higher surface speeds and improved chip evacuation. It is a centercutting tool, allowing plunge entry without a pre-drilled pilot hole. Licensed machinists and CNC operators use this end mill for contouring, slotting, and profiling operations where edge integrity is critical.

This end mill is suited for CNC machining centers and manual mills running ferrous alloys, stainless steel, cast iron, and similar materials where a TiCN coating provides added hardness and heat resistance. The extra-long configuration with a 1 inch length of cut and 3 inch overall length gives reach for deeper pockets and stepped features. The right-hand flute direction and right-hand cutting orientation are standard for conventional CNC spindle setups.

Key Features

• Solid micrograin carbide construction for rigidity and wear resistance
• TiCN coating increases surface hardness and reduces built-up edge
• 0.02 inch corner radius reduces edge chipping and part stress
• 40-degree helix angle promotes efficient chip evacuation
• Centercutting design allows direct plunge entry
• Extra-long reach at 3 inches OAL for deep-pocket applications

Compatibility

Designed as a standard 1/8 inch shank corner radius end mill compatible with collet-style and end mill holders accepting 1/8 inch diameter shanks on CNC machining centers and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the spindle is fully stopped and the machine is in a safe state before changing tooling. Use a calibrated collet or end mill holder rated for the 1/8 inch shank diameter and tighten to holder manufacturer specifications. Verify runout at the tool tip before beginning a production cut, as excessive runout will accelerate corner radius wear and reduce surface finish quality.
