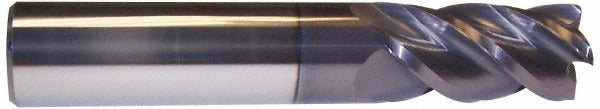

Accupro 12183040 Corner Radius End Mill 5/16 in 4 Flute

Product Description

The ACCUPRO 12183040 is a solid carbide corner radius end mill designed for precision milling operations in ferrous and non-ferrous materials. It features a 5/16 inch diameter, a 0.01 inch corner radius, and four right-hand spiral flutes with a 40-degree helix angle. The AlTiN coating extends tool life at elevated cutting temperatures. With a 1-1/8 inch length of cut and a 3 inch overall length, this is a long-series tool suited for reaching deeper pockets while maintaining rigidity. The micrograin carbide substrate provides hardness and wear resistance at high surface footage. Machinists and toolroom operators working in job shops or production environments are the primary users.

This end mill is used in milling operations where a radiused corner is required to reduce stress concentrations at the base of a pocket or shoulder. The 5/16 inch shank diameter allows direct chucking in ER collet systems, end mill holders, or shrink-fit tooling. The single-end, centercutting design allows plunge entry as well as peripheral and slot milling. It is well suited for die and mold work, aerospace component machining, and general precision part production where tool deflection control and surface finish matter.

Key Features

• Solid micrograin carbide substrate for hardness and edge retention
• AlTiN coating for high-temperature performance and extended tool life
• 0.01 inch corner radius reduces corner chipping and part stress risers
• 4 right-hand flutes with 40-degree helix for efficient chip evacuation
• Centercutting geometry allows direct plunge milling
• Long-series length of cut at 1-1/8 inches for deeper pocket reach

Compatibility

Designed as an OEM-style replacement or direct-use solid carbide end mill compatible with standard 5/16 inch ER collet chucks, end mill holders, and shrink-fit tooling systems used on CNC machining centers and manual knee mills.

Installation Notes

Installation and tool changes should be performed by a qualified machinist with the spindle fully stopped and the machine in a safe, locked-out state. Ensure the collet or holder bore is clean and free of chips before seating the shank. Follow machine tool manufacturer torque specifications for collet nuts and set screws. Do not exceed the tool manufacturer recommended speeds and feeds for the workpiece material and coating type.
