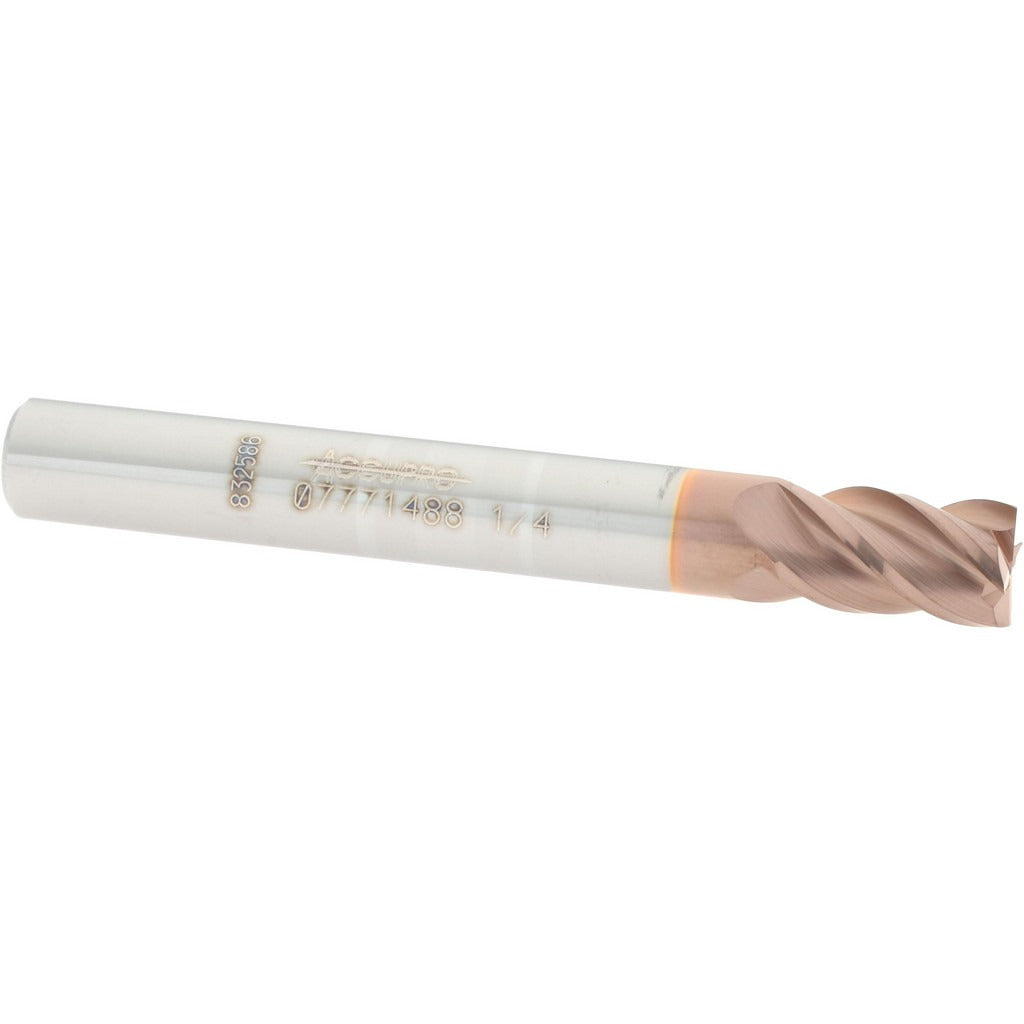

Accupro 12182801 Square End Mill 1/4 in 4 Flute Carbide

Product Description

The ACCUPRO 12182801 is a solid carbide square end mill designed for precision milling in ferrous and non-ferrous materials. It features a 1/4 inch cutting diameter, a 3/8 inch length of cut, and a 40-degree helix angle that promotes efficient chip evacuation and reduced cutting forces. The micrograin carbide substrate provides the hardness and wear resistance needed for demanding machining applications. A TiCN coating adds surface hardness and lubricity, extending tool life in abrasive materials. This is a single-end, centercutting tool with right-hand cut and right-hand spiral flute geometry, suitable for slotting, profiling, and plunge milling operations.

This end mill is used in CNC machining centers and manual mills for general-purpose material removal in a stub-length configuration. The stub length design increases rigidity and reduces deflection, making it well suited for applications where shorter reach is acceptable and tool stiffness is a priority. It is sized for use with standard 1/4 inch collets or end mill holders. Machinists and CNC operators in job shops, production facilities, and tool rooms are the primary users of this type of tooling.

Key Features

• Solid micrograin carbide construction for hardness and wear resistance
• TiCN coating increases surface hardness and reduces friction during cutting
• 40-degree helix angle promotes smooth cutting action and efficient chip removal
• Centercutting geometry allows direct plunge entry into workpiece material
• Stub length configuration maximizes rigidity and minimizes deflection
• Right-hand cut and right-hand spiral flute for standard CNC and manual mill use

Compatibility

Designed for use with standard 1/4 inch diameter collets and end mill holders on CNC machining centers and manual knee mills.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the spindle is fully stopped and the machine is in a safe state before changing tooling. Use a properly sized collet or end mill holder and torque the retention mechanism according to the machine tool manufacturer specifications. Verify runout with a dial indicator before beginning any production run.
