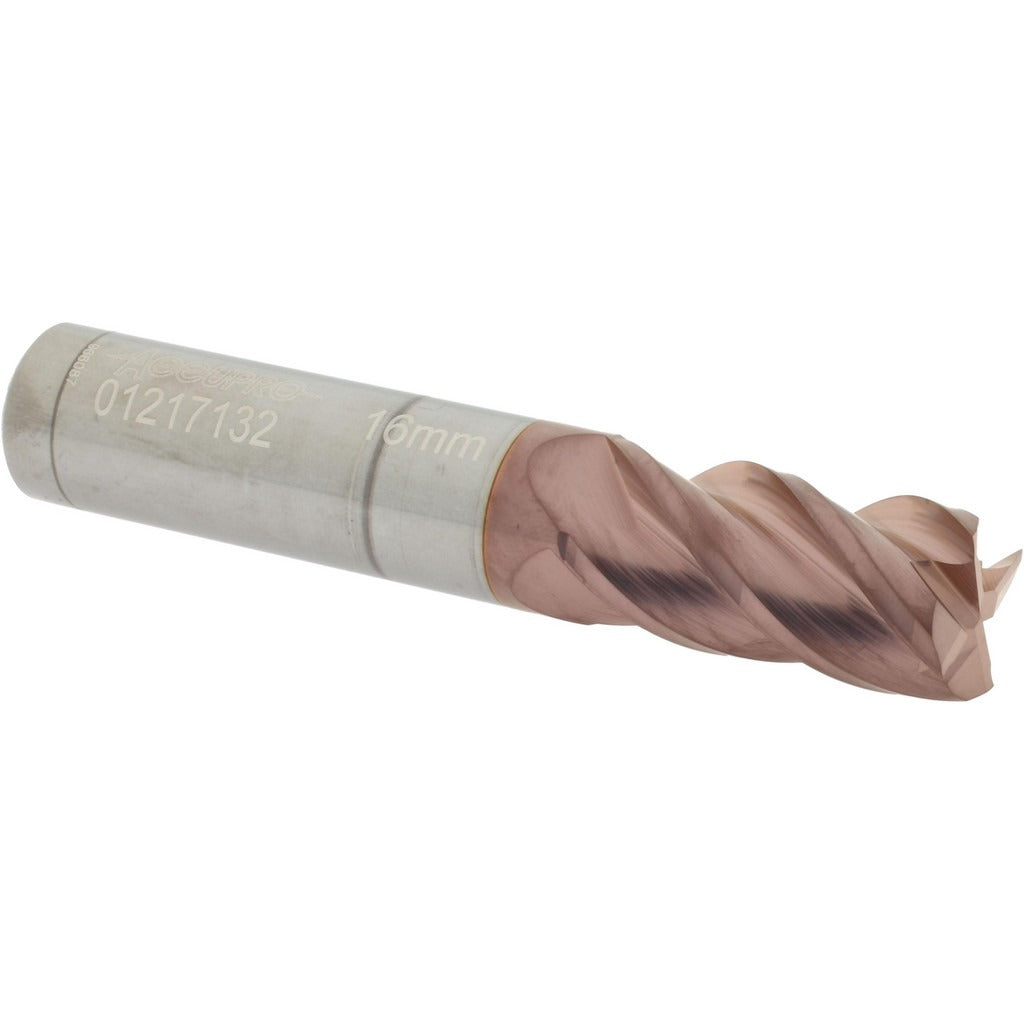

Accupro 12182647 Square End Mill 0.6299 in 4 Flute Carbide

Product Description

The ACCUPRO 12182647 is a solid carbide square end mill designed for precision milling in metalworking and machining applications. With a 0.6299-inch (16 mm) mill diameter and a 1.2598-inch (32 mm) length of cut, it delivers rigid, accurate material removal in a regular-length configuration. The four-flute spiral geometry with a 40-degree helix angle promotes efficient chip evacuation and smooth cutting action. A TiCN (titanium carbonitride) coating enhances surface hardness and wear resistance, extending tool life in demanding cuts. The micrograin carbide substrate provides the toughness needed for consistent performance across a range of ferrous and non-ferrous materials.

This end mill is suited for milling operations in job shops, production machining environments, and toolroom applications. Its centercutting capability allows it to plunge directly into a workpiece, making it practical for slot milling, pocket milling, and contour work. The right-hand cut and right-hand flute orientation are standard for conventional CNC machining center setups. It is intended for use by machinists and CNC operators working with milling machines or machining centers where a 16 mm shank is required.

Key Features

• Solid micrograin carbide construction for rigidity and wear resistance
• TiCN coating for extended tool life and reduced friction at the cutting edge
• 4-flute spiral design with 40-degree helix angle for efficient chip evacuation
• Centercutting design allows direct plunge entry into workpiece material
• Right-hand cut, right-hand flute - standard orientation for CNC milling setups
• Regular length configuration suitable for general-purpose milling operations

Compatibility

Designed as an OEM-style replacement or direct-use solid carbide end mill for milling machines and CNC machining centers accepting a 16 mm shank diameter.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the spindle is fully powered down and at a complete stop before loading or removing the tool from the tool holder. Verify shank diameter tolerance compatibility with the collet or end mill holder before securing the tool. Follow machine manufacturer guidelines and applicable shop safety standards when setting tool offsets and establishing feeds and speeds.
