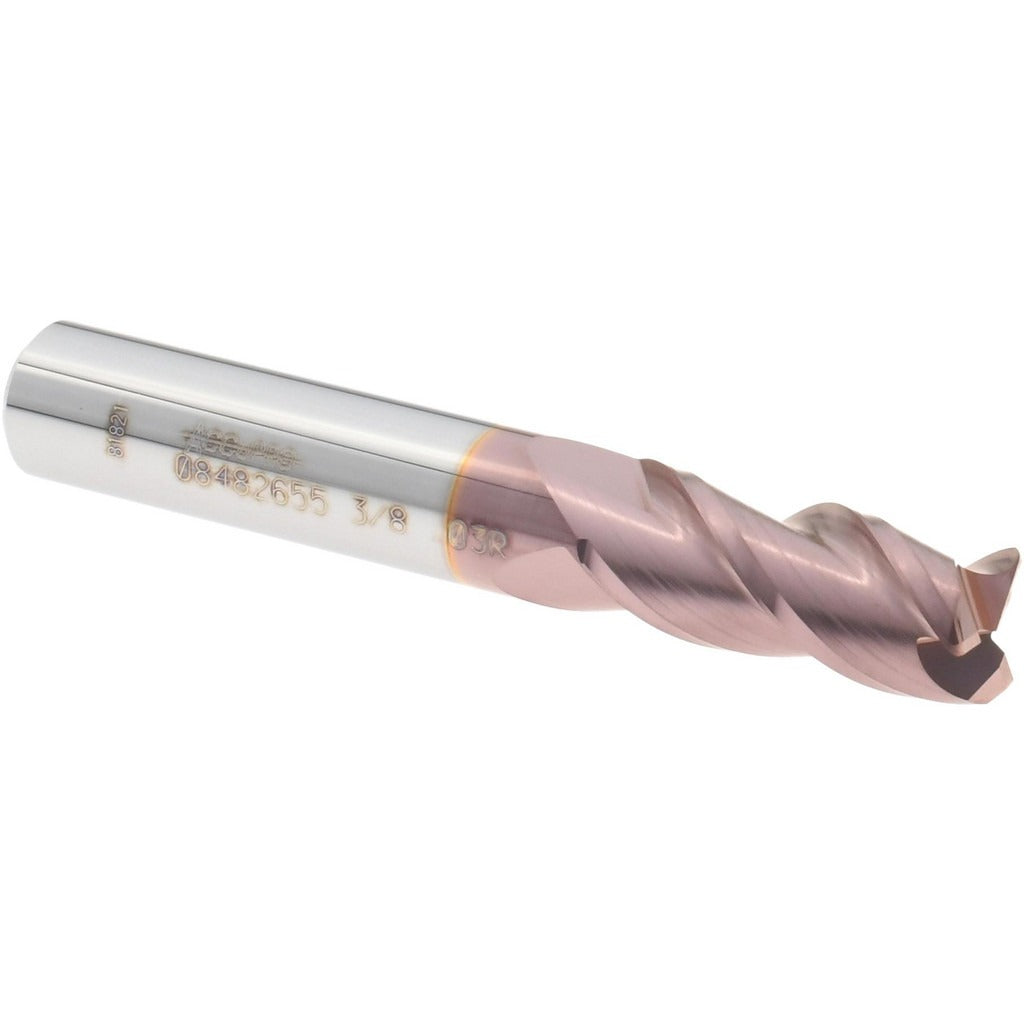

Accupro 12182027 Corner Radius End Mill 3/8 in 3 Flute Ticn

Product Description

The ACCUPRO 12182027 is a solid carbide corner radius end mill designed for precision milling operations in metalworking and machining applications. It features a 3/8-inch diameter, a 0.030-inch corner radius, and a TiCN (Titanium Carbonitride) coating that improves wear resistance and extends tool life in abrasive materials. The micrograin carbide substrate provides rigidity and edge retention at elevated cutting speeds. With 3 flutes and a 40-degree helix angle, this end mill promotes efficient chip evacuation and smooth surface finishes. It is a single-end, centercutting tool, meaning it can plunge directly into a workpiece as well as perform peripheral milling passes.

This end mill is suited for use in CNC machining centers and manual mills where tight-tolerance profiling, slotting, and contouring are required. The corner radius geometry reduces edge chipping and stress concentration at corners, making it a practical choice for mold and die work, aerospace components, and general precision part machining. The TiCN coating performs well in ferrous and hard materials. Right-hand flute direction and right-hand cutting orientation are standard for conventional mill setups.

Key Features

• 0.030-inch corner radius reduces stress concentration and extends workpiece edge life
• TiCN coating improves hardness and wear resistance over uncoated carbide
• Micrograin solid carbide substrate for rigidity and edge retention
• 3-flute, 40-degree helix design promotes efficient chip evacuation
• Centercutting capability allows direct plunge entry into workpiece
• Single-end configuration with 7/8-inch length of cut and 2-1/2-inch overall length

Compatibility

Designed as a standard shank end mill compatible with 3/8-inch collets, end mill holders, and shrink-fit tooling systems used in CNC machining centers and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist. Ensure the spindle is fully stopped and the machine is powered down before changing tooling. Verify collet or tool holder bore matches the 3/8-inch shank diameter and that runout is within acceptable tolerances before cutting. Follow the machine manufacturer guidelines for tightening torque on the tool holder and consult the cutting tool manufacturer for recommended speeds and feeds for the material being machined.
