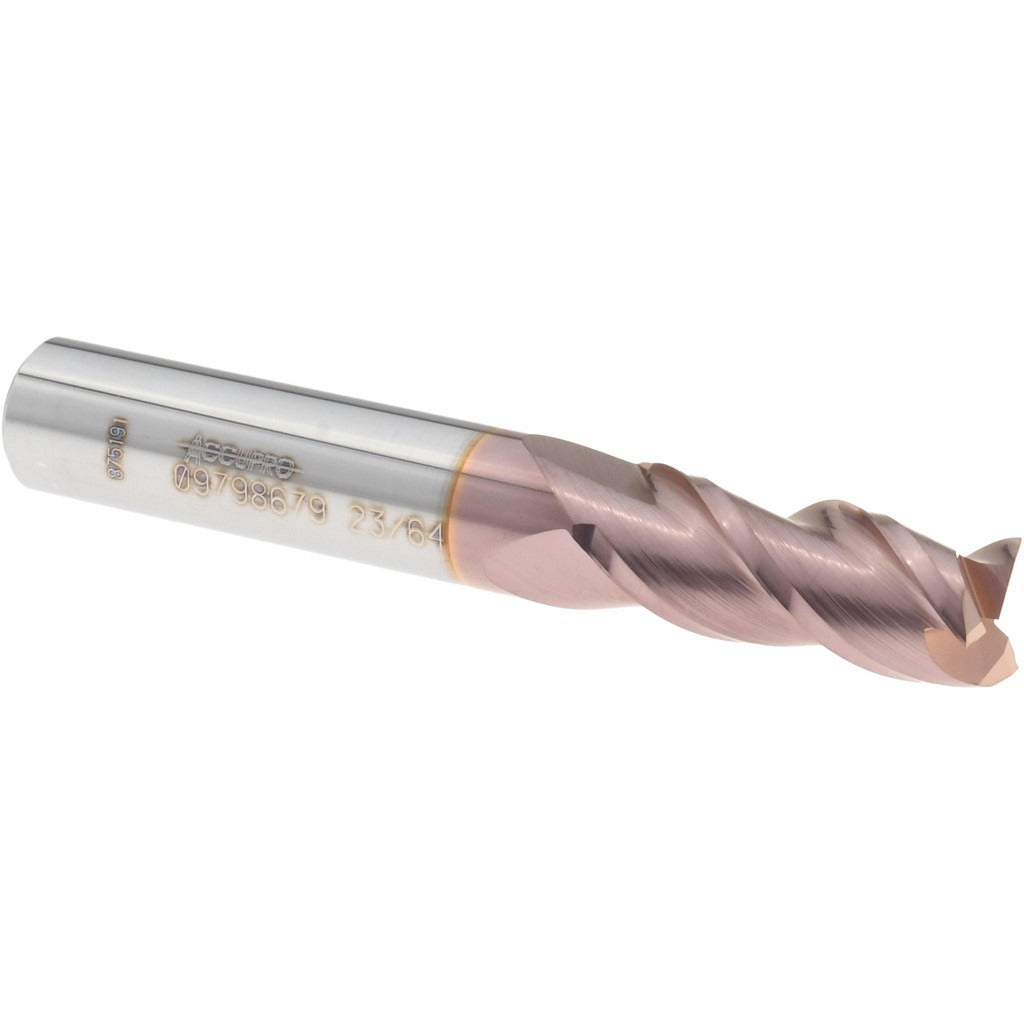

Accupro 12182011 Square End Mill 23/64 in 3 Flute Carbide

Product Description

The ACCUPRO 12182011 is a solid carbide square end mill designed for precision milling in metalworking and machining applications. With a 23/64 inch (0.3594 inch) mill diameter, a 7/8 inch length of cut, and a 3/8 inch shank diameter, this tool delivers tight tolerances and reliable stock removal. The TiCN (Titanium Carbonitride) coating increases surface hardness and wear resistance, extending tool life in demanding cuts. Three spiral flutes with a 40-degree helix angle improve chip evacuation and reduce cutting forces. The micrograin carbide substrate supports higher cutting speeds and feeds compared to standard carbide grades.

This end mill suits general-purpose milling operations including slotting, profiling, and peripheral cuts on ferrous and non-ferrous metals. The centercutting design allows plunge entry, making it practical for pocketing and ramp entry without a pre-drilled hole. The right-hand cut and right-hand flute geometry are standard for conventional CNC machining centers and manual mills. The 2-1/2 inch overall length and regular length classification fit most standard toolholders and collet chucks without requiring extended-reach setups.

Key Features

• 23/64 inch mill diameter with mill diameter tolerance of +0.000/-0.002 inches for consistent fit
• Solid micrograin carbide construction for rigidity and wear resistance
• TiCN coating for improved hardness and reduced tool wear in steel and cast iron
• 40-degree helix angle spiral flutes for efficient chip evacuation
• Centercutting design enables direct plunge entry
• Right-hand cut and right-hand flute, compatible with standard CNC and manual mill setups

Compatibility

Designed for use in standard 3/8 inch collet chucks, ER collet systems, and toolholders accepting a 3/8 inch straight shank. Suitable for machining centers and manual mills requiring a regular-length square end mill in this diameter range.

Installation Notes

Installation is performed by a machinist or CNC operator. Ensure the spindle is fully stopped and the machine is in a safe, locked-out state before installing or removing tooling. Clean the collet bore and shank of debris before seating the tool to maintain runout tolerances. Verify shank engagement depth meets toolholder manufacturer specifications before beginning a cut.
